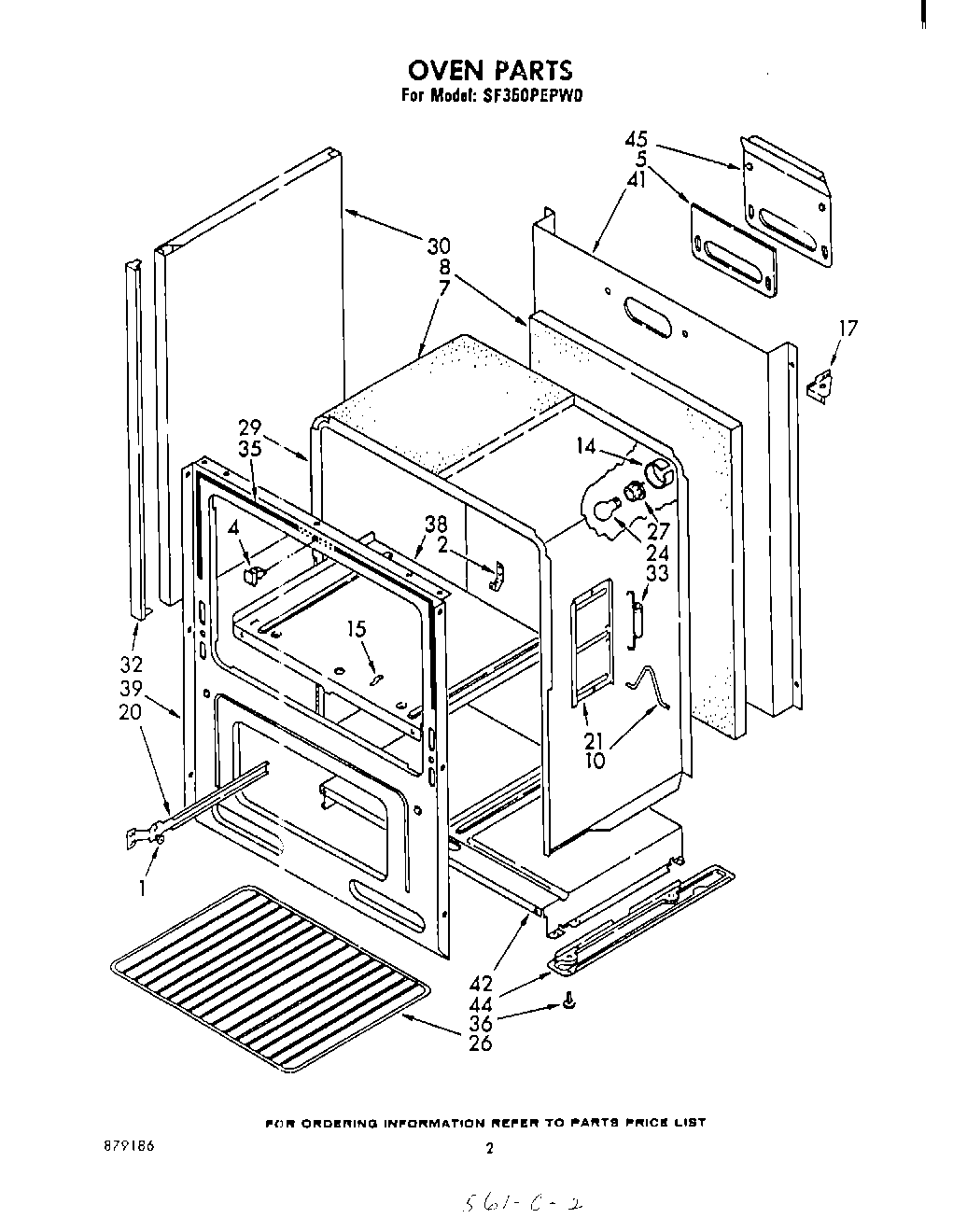

SF350PEPW0 02 – OVEN , LITERATURE

Products

Position	Product
	Diagram, Installation Instructions
	List, Repair Parts
	Diagram, Wiring
	Guide, Use & Care
	Instructions, Installation
1	Bearing, Roller (4)
2	98005642 Whirlpool Clip
4	Clip, Door Seal
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Link, Oven Door Spring (2)
14	Sleeve, Light Hole
15	Clip, Oven Bottom Plate (2)
17	Bracket, Corner Support (Left Side)
17	Bracket, Corner Support (Right Side)
20	Track, Broiler (Left Side)
20	Track, Broiler (Right Side)
21	Cover, Hinge (2)
24	RANGE ONLY 40W 120V APPL BULB
26	Rack, Oven (2)
27	Socket, Oven Light
29	Oven 30“ Continuous Clean (Not Serviceable)
30	Panel, End (2) (Toast)
30	Panel, End (2) (Platinum)
30	Panel, End (2) (Almond)
30	Panel, End (2) (White)
32	Trim, End Panel (2)
33	Spring, Oven Door (2)
35	Seal, Oven Door (Top)
35	Seal, Oven Door (Side (2))
36	Screw, Leveling (4)
38	Plate, Oven Bottom
39	Front, Main
41	Back, Main
42	Bottom, Main
44	Runner, Base (Left Side)
44	Runner, Base (Right Side)
45	Deflector, Vent
