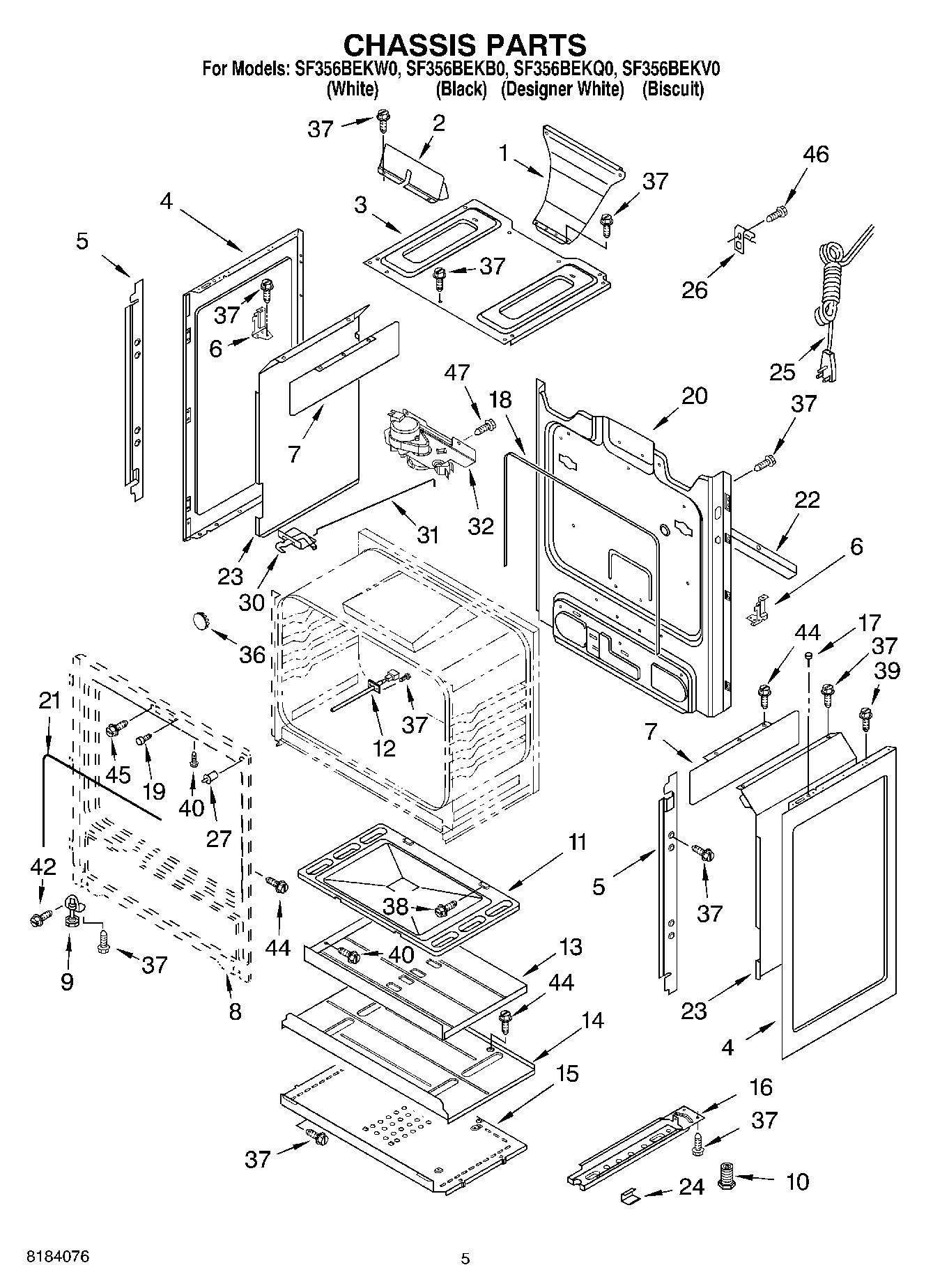

| 1 | W11457094 Whirlpool Oven Flue |
| 2 | WP8272747 Whirlpool Heat Shield |
| 3 | W11379351 Whirlpool Burner Box |
| 4 | WPW10575396 Whirlpool Side Panel |
| 4 | W11730303 Whirlpool Side Panel |
| 4 | W10162246 Whirlpool Side Panel |
| 5 | Shield, Heat (2) |
| 6 | Brkt, Manifold Mtg (Left Hand) |
| 6 | Brkt, Manifold Mtg (Right Hand) |
| 7 | Shield, Heat (2) |
| 8 | Frame, Front (Not Serviceable) |
| 9 | WP3196037 Whirlpool Leveling Foot |
| 10 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 11 | WP3195097 Whirlpool Oven Bottom |
| 12 | WPW10181986 Whirlpool Oven Sensor |
| 13 | 8053967 Whirlpool Oven Heat Baffle |
| 14 | 8053969 Whirlpool Heat Shield |
| 15 | 8053968 Whirlpool Oven Heat Shield |
| 16 | WPW10306546 Whirlpool Base Rail |
| 17 | 238614 Whirlpool Bumper Hinge |
| 18 | Seal, Oven Flange |
| 19 | W10877054 Whirlpool Spacer Assembly |
| 20 | Back, Main |
| 21 | W11542153 Whirlpool Door Gasket |
| 22 | Brace, Main Back |
| 23 | Retainer, Insul. (Right Hand) |
| 23 | Retainer, Insul. (Left Hand) |
| 24 | Clip, Panel (6) |
| 25 | WP9757891 Whirlpool Power Cord |
| 26 | 549193 Whirlpool Refrigerator Power Clamp |
| 27 | WP3196262 Whirlpool Light Switch |
| 30 | WP9761013 Whirlpool Door Latch |
| 31 | W10078370 Whirlpool Latch Rod |
| 32 | WPW10107820 Whirlpool Door Latch |
| 36 | Button, Plug |
| 38 | Screw |
| 39 | Screw (Almond) |
| 39 | 3196166 Whirlpool Screw |
| 40 | SCREW |
| 42 | Screw |
| 44 | WP7101P246-60 Whirlpool Screw |
| 45 | WP3400832 Whirlpool Screw |
| 46 | W11244557 Whirlpool Screw |
| 47 | WPW10208653 Whirlpool Insulation |
| 47 | W10491985 Whirlpool Screw |
| 47 | W11688737 Whirlpool Insulation |
