SF357PEKV1 06 – DOOR

SF357PEKV1 06 – DOOR

Written by

in

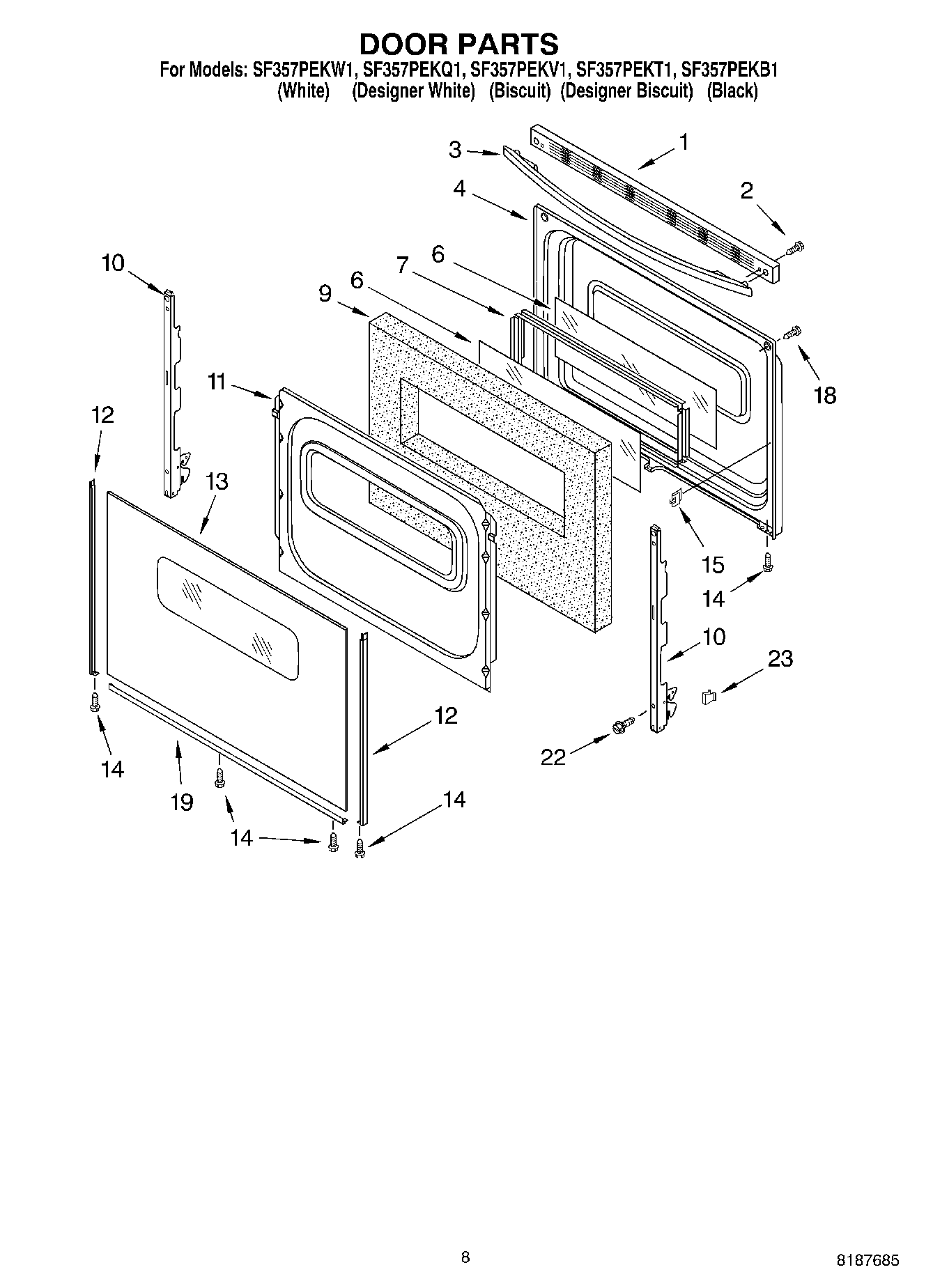

SF357PEKV1 06 – DOOR

Products

Position	Product
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
13	WP9762476 Whirlpool Door Glass
13	Glass, Door (Biscuit)
13	WP9762477 Whirlpool Glass Door
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
19	8184860 Whirlpool Oven Door Trim
19	8184858 Whirlpool Door Trim
22	WP3196175 Whirlpool Screw
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Wire (14 Ga. 150 c Blue)
23	WPL 8273901
23	511873 Whirlpool Refrigerator Paint
23	WPL 8523424
23	TIE,WIRE
23	8523599 Whirlpool Oven Wire Harness
23	WPL 8053527
23	3196896 Whirlpool Clip
23	3196696 Whirlpool Clip
23	8212471 Whirlpool Oven Paint
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	4392901 Whirlpool Biscuit Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	350942 Whirlpool Spray Paint
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	285006 Whirlpool Spray
23	814381 Whirlpool Pin
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	242831 Whirlpool Oven Wire
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	350930 Whirlpool White Spray Paint
