SF357PEKW0 03 – MANIFOLD

SF357PEKW0 03 – MANIFOLD

Written by

in

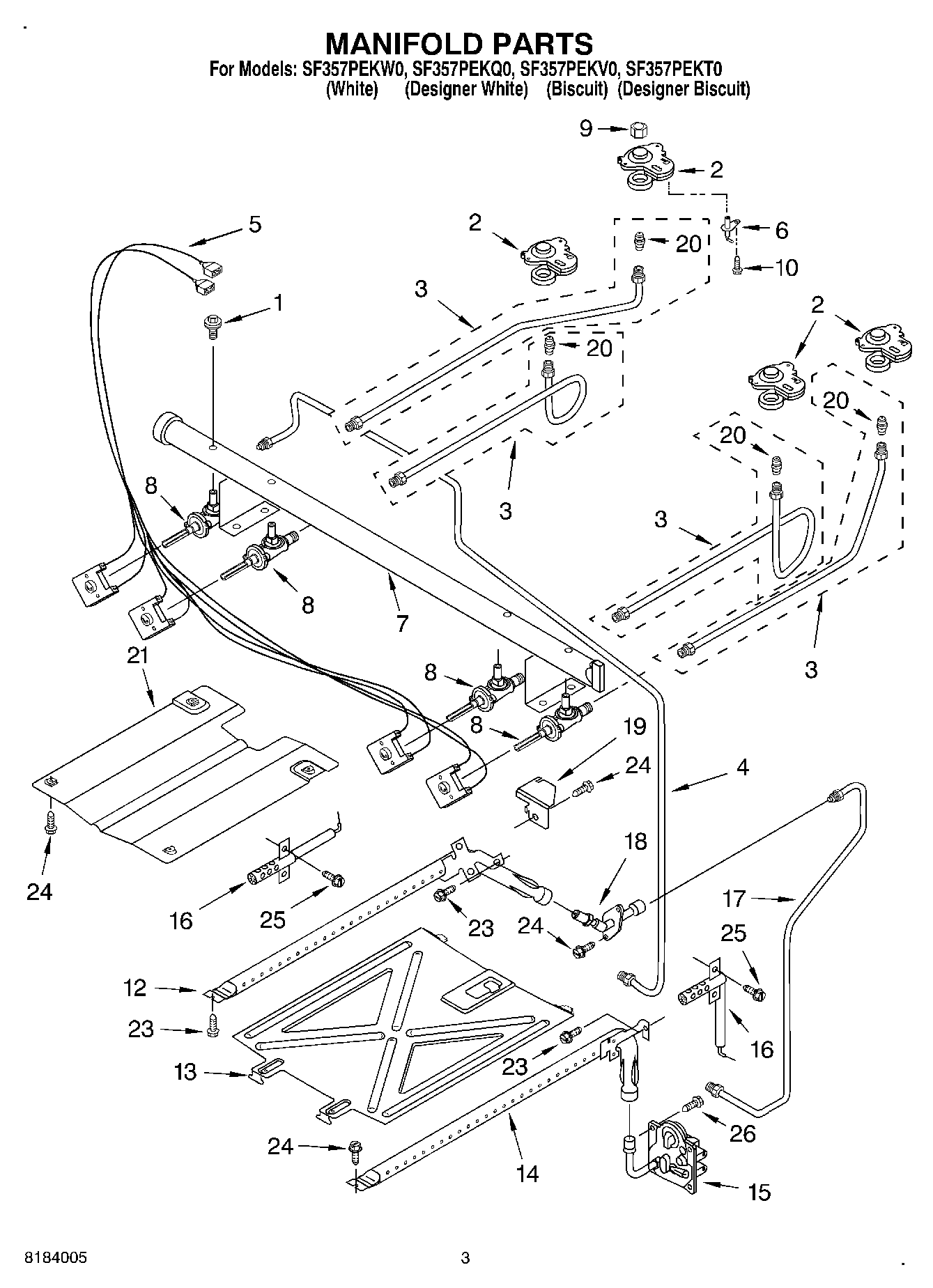

SF357PEKW0 03 – MANIFOLD

Products

PositionProduct
1WP8273096 Whirlpool Screw
2Burner Base (Small (1))
2WP8273700 Whirlpool Base Burner
3Tubing, Burner W/Orifice (Right Front)
3Tubing, Burner W/Orifice (Right Rear)
3Tubing, Burner W/Orifice (Left Rear)
3Tubing, Burner W/Orifice (Left Front)
4Tubing (Manifold to Regulator)
5Harness, Igniter (W/Switches)
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8WP9757218 Whirlpool Burner Valve
8Valve (Right Rear)
9Nut (4)
10WP8273062 Whirlpool Screw
12WP8054078 Whirlpool Broiler Burner
13Spreader, Flame (Oven)
148190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter
15WPW10293048 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19Cover, Igniter
20WP8273065 Whirlpool Orifice
20WP8273067 Whirlpool Orifice
20WP8273066 Whirlpool Orifice
21W10137062 Whirlpool Burner Baffle
233196265 Whirlpool Oven Screw
24SCREW
25W11684507 Whirlpool Screw
26WP3400016 Whirlpool Screw Assembly
26Spuds, LP Gas (Kit of 4)
