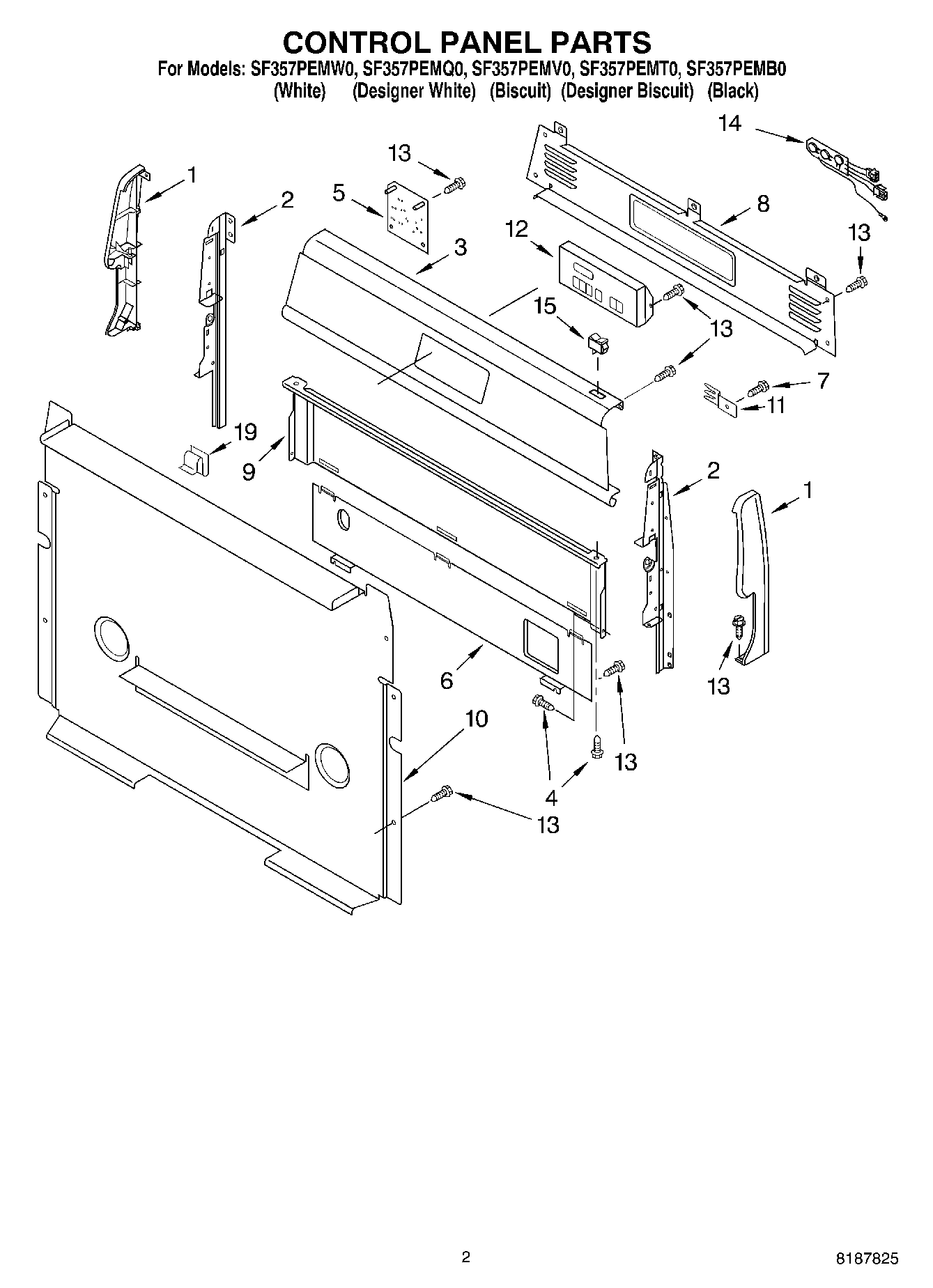

SF357PEMT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Biscuit Left Hand)
1	Endcap (Biscuit Right Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Backguard (Biscuit)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	WP3196557 Whirlpool Screw
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	8523412 Whirlpool Mounting Bracket
12	WP6610449 Whirlpool Electronic Control Board
12	Control, Range (White)
12	Control, Range (Biscuit)
13	SCREW
14	Suppressor, Trans
15	Switch, Rocker (Biscuit)
15	3149360 Whirlpool Light Switch
15	WP4314961 Whirlpool Lite Switch
19	WP8273564 Whirlpool Clip
