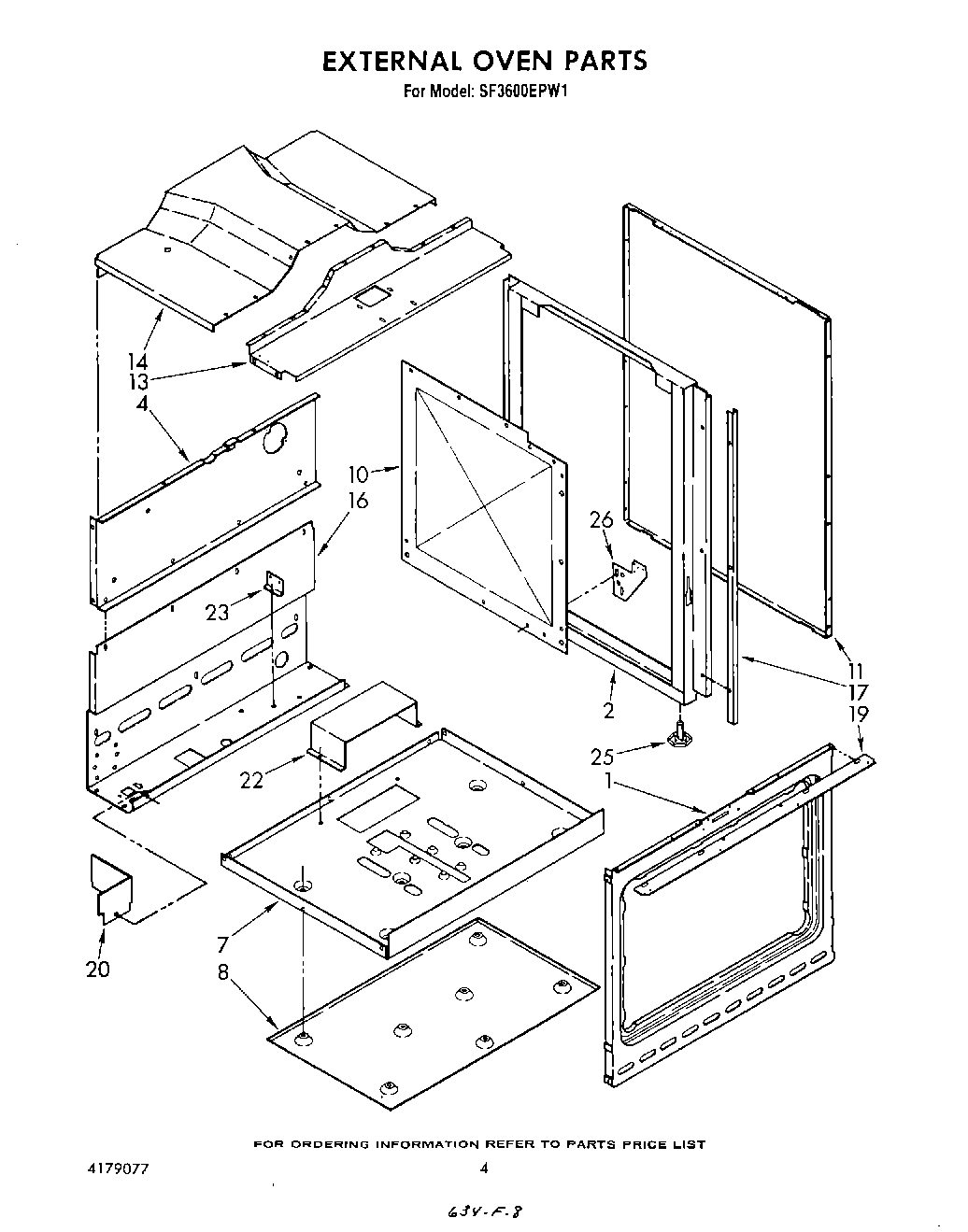

SF3600EPW1 03 – EXTERNAL OVEN

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Frame, Front
2	Frame, Side (Left Side (See Page 9 For Two Track System))
2	Frame, Side (Right Side)
4	Rear Panel, Upper
7	Retainer, Bottom Insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (White)
11	Panel, End (2) (Almond)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	WP486754 Whirlpool Compactor Screw
16	WP488130 Whirlpool Air Conditioner Nut
16	nut, 6-32
16	Rear Panel, Lower
16	bushing, snap
17	Trim, Side Panel (2)
19	Frame, Filler Front
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
26	Bracket, Door Switch
