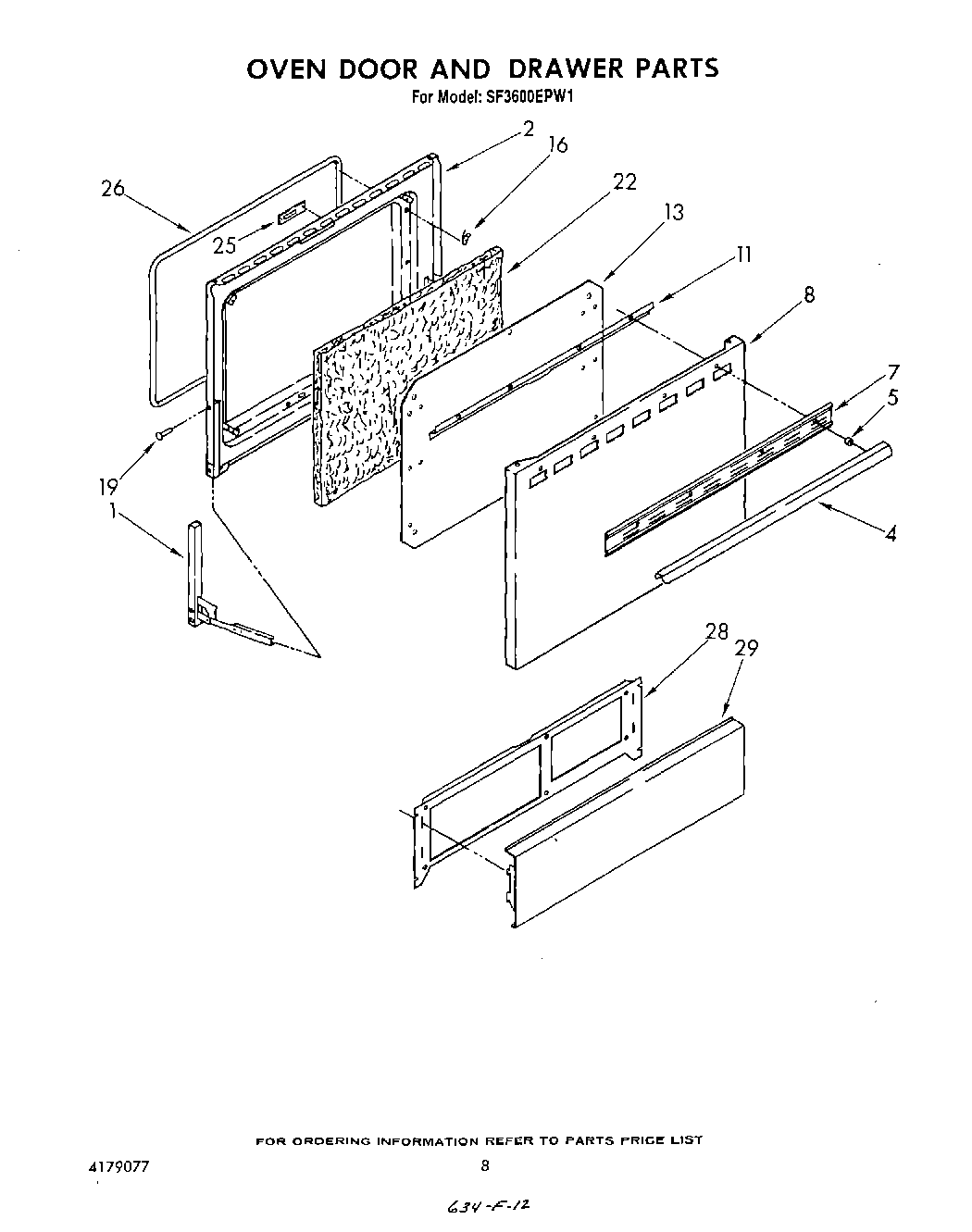

SF3600EPW1 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (R.H.)
1Hinge, Oven Door (Left Side)
2Screw, 8-18 X 3/8
2Liner, Oven Door
2Screw, 8 X 3/8 (14)
4Handle
5Spacer, Handle (4)
7Trim, Metal Door
8Panel, Oven Door (Toast)
8Panel, Oven Door (Platinum)
8Panel, Oven Door (Almond)
8Panel, Oven Door (White)
11Baffle, Air
13Retainer, Insulation
16Clip, Speed (14)
19Pin, Hinge (2)
22WPW10208653 Whirlpool Insulation
25Plate, Latch
26Gasket Assembly
28Shield, Lower Panel
29Panel, Lower Cover (Almond)
29Panel, Lower Cover (White)
