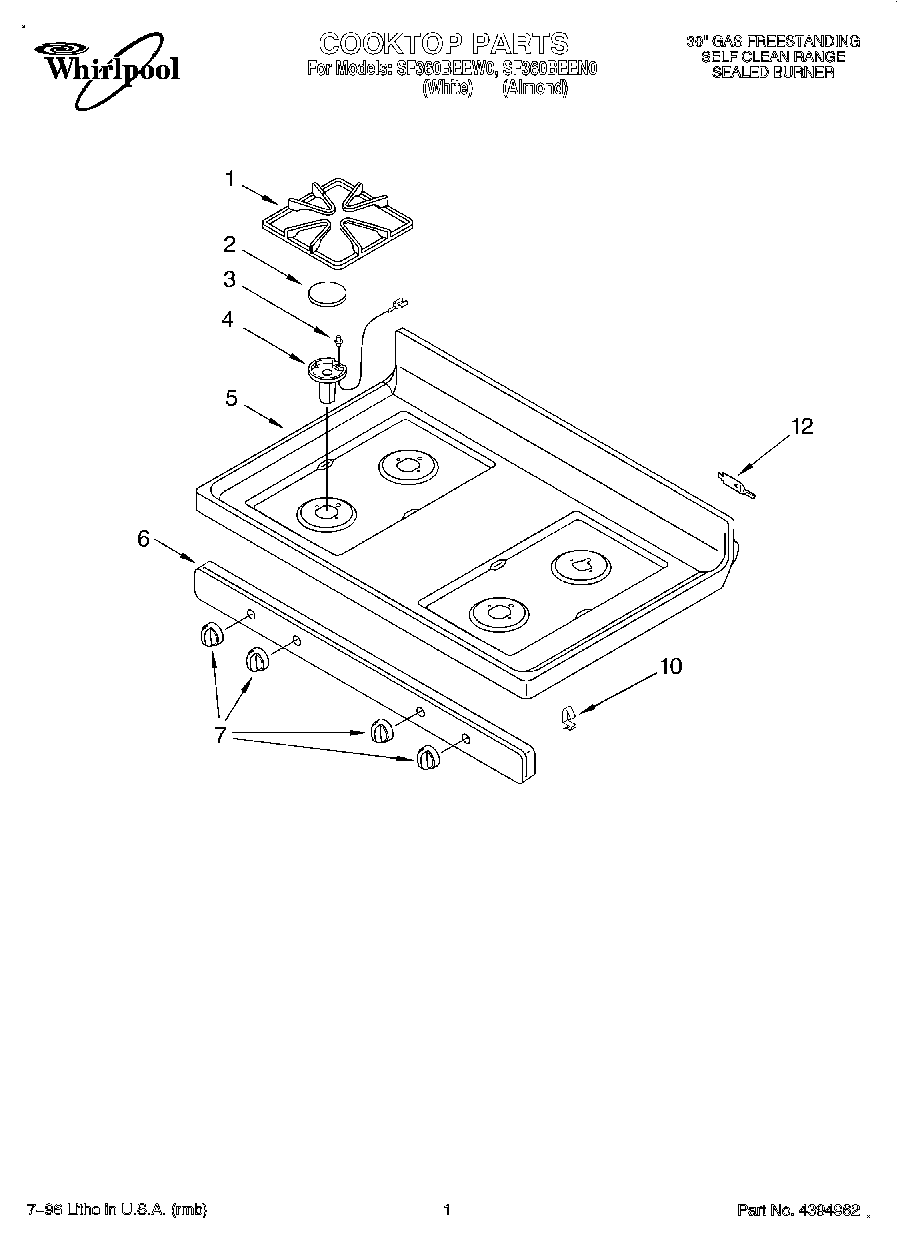

SF360BEEN0 01 – COOKTOP

SF360BEEN0 01 – COOKTOP

Written by

in

SF360BEEN0 01 – COOKTOP

Products

PositionProduct
1Grate, Burner (4)
2Cap, Burner (Large (3))
2Cap, Burner (Small (1))
3W11032529 Whirlpool Surface Igniter
4WP8053360 Whirlpool Burner Head
4WPW10132940 Whirlpool Dishwasher Screw
4Burner, 6,500 BTU (RR)
5Cooktop (White)
5Cooktop (Almond)
68523855 Whirlpool Oven Manifold Panel
6WP3196557 Whirlpool Screw
7Knob, Burner (4)
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
12SCREW
