SF360BEEQ0 01 – COOKTOP

SF360BEEQ0 01 – COOKTOP

Written by

in

SF360BEEQ0 01 – COOKTOP

Products

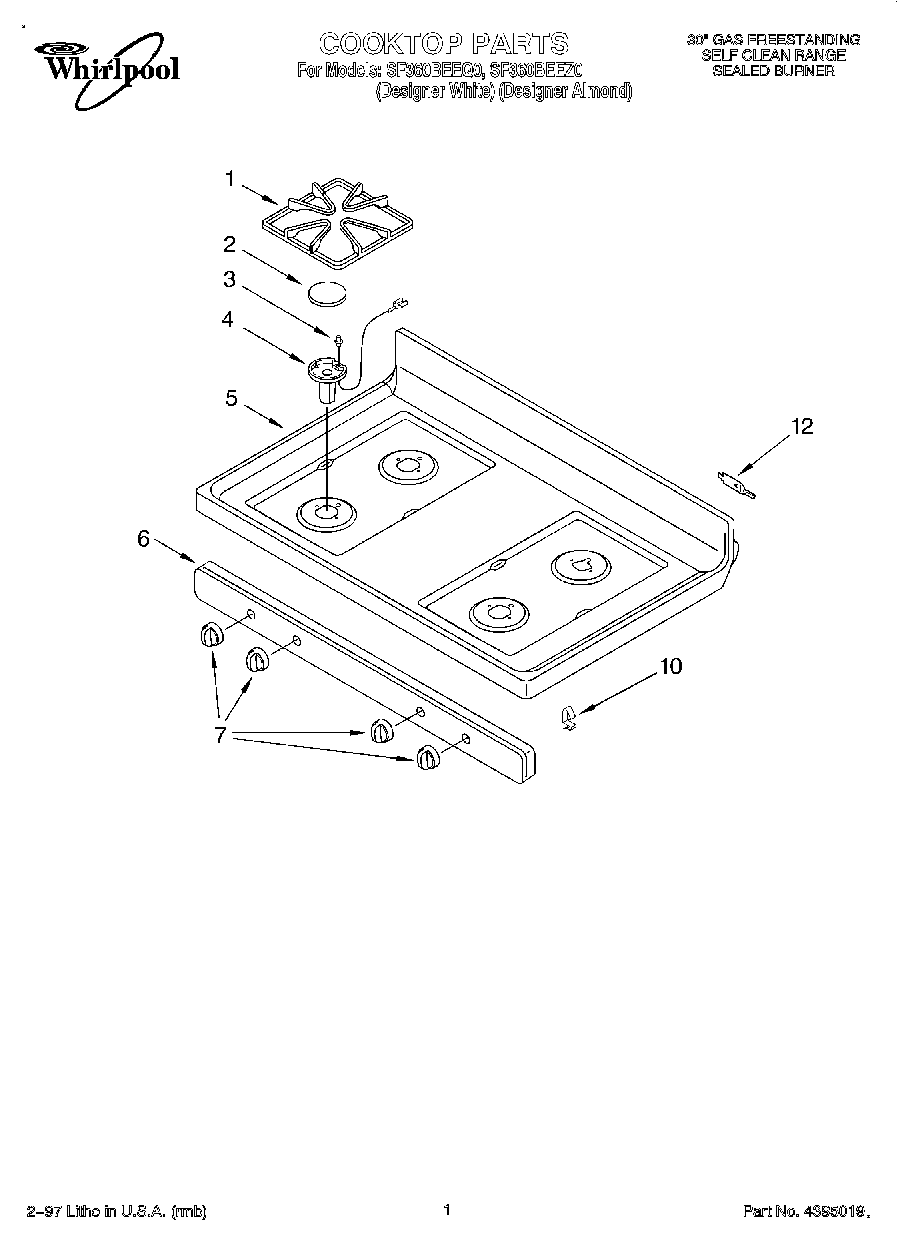

PositionProduct
1Grate, Burner (4) (Almond Model)
1Grate, Burner (4)
2Cap, Large Burner (Almond Model)
2Cap, Burner (Small (1))
2Cap, Burner (Large (3))
2(Cap, Small Burner) (Almond Model)
3W11032529 Whirlpool Surface Igniter
4Burner, 6,500 BTU (RR)
4WP8053360 Whirlpool Burner Head
4WPW10132940 Whirlpool Dishwasher Screw
5Cooktop (White)
5Cooktop (Almond)
6Panel, Manifold (Almond Model)
6WP8523854 Whirlpool Manifold Panel
6WP3196557 Whirlpool Screw
7Knob, Surface (4) (Almond)
7WP3186135 Whirlpool Control Knob
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
12SCREW
