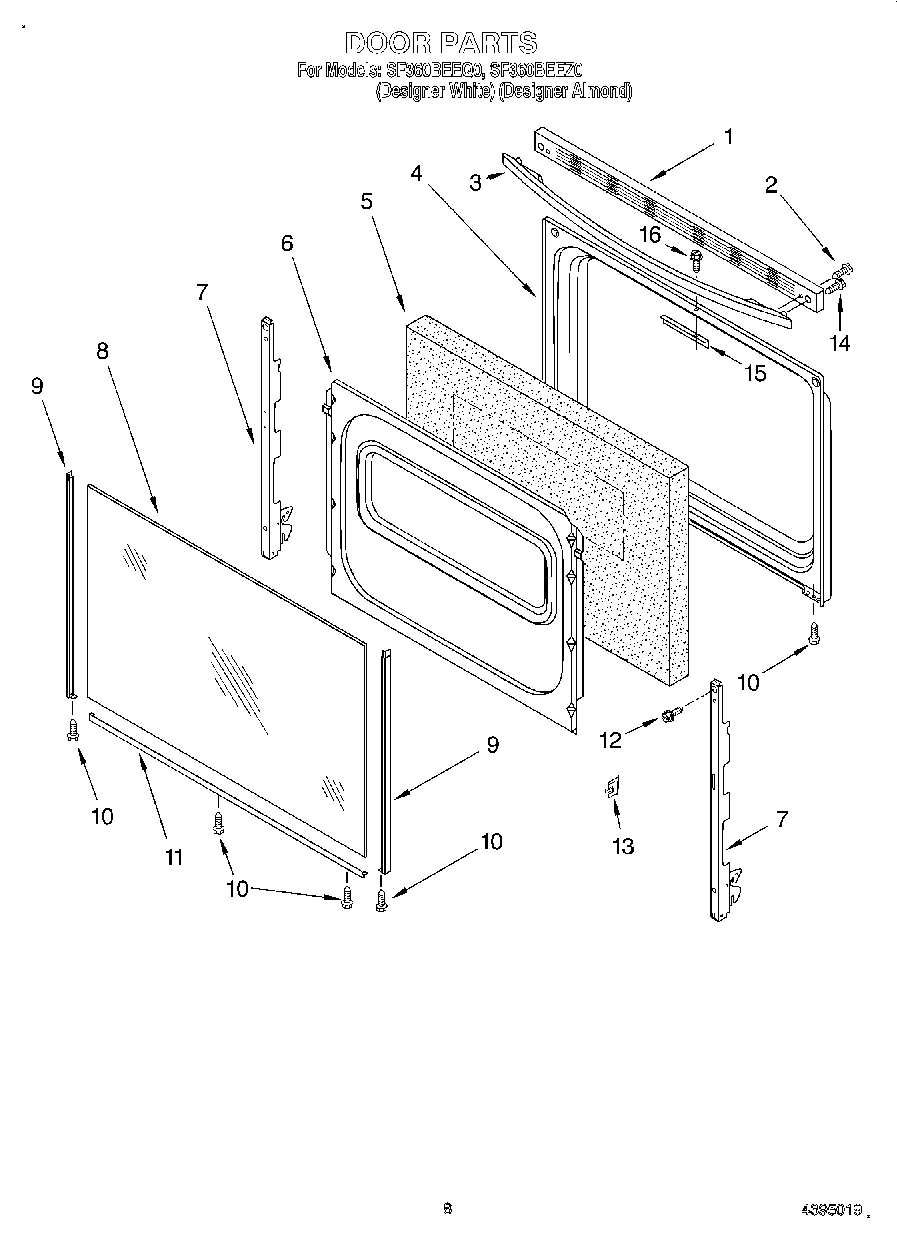

SF360BEEQ0 06 – DOOR, LIT/OPTIONAL

SF360BEEQ0 06 – DOOR, LIT/OPTIONAL

SF360BEEQ0 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3196334
WPL 3195570
WPL LIT3196324
Clip
WPL LIT3196290
Literature (Installation, Instructions (Template))
WPL 3195198
16515 Whirlpool Clip
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Almond)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Almond)
4Liner, Door
5Insulation, Door
6W11699790 Whirlpool Retainer
7Hinge, Door (2)
8Glass, Outer Door (White)
8Glass, Outer Door (Almond)
10W10491985 Whirlpool Screw
118184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
118184860 Whirlpool Oven Door Trim
12238614 Whirlpool Bumper Hinge
13Clip, Glass (4)
14WP179051 Whirlpool Screw
15Bracket, Latch
16Wire (12 Ga. 150 c Black)
16Wire (14 Ga. 200 c Brown)
16WPL 3196473
1618 Ga. 80~c Rating (Red)
161
16WP3400832 Whirlpool Screw
168212471 Whirlpool Oven Paint
16Grease
168273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1672113 Whirlpool Touch-Up Paint
16Wire (14 Ga. 150 c Yellow)
16Wire (14 Ga. 150 c Orange)
16Wire (14 Ga. 150 c Green)
16WPL 72112
16Platinum (Uncut)
16Enamal, Toast (1 Qt. Uncut)
16Paint, Spray (13 Oz.) (Platinum)
16Toast
16Golden Harvest (Uncut)
16Golden Harvest
1672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16Almond (Uncut)
16WP72107 Whirlpool Touchup
16799344 Whirlpool Refrigerator Paint
1672017 Whirlpool Appliance Touch-Up Paint White
16350956 Whirlpool Spray Assembly
16350942 Whirlpool Spray Paint
16511873 Whirlpool Refrigerator Paint
16WPL 799832
16Wire (14 Ga. 150 c Brown)
16Wire (14 Ga. 150 c Blue)
16242831 Whirlpool Oven Wire
16Paint, Spray 13 Oz. (Avocado)
16paint, spray 13 oz. (coffee)
16Paint, Touch-Up 1/2 Oz. (Coffee)
1672109 Whirlpool Dacor Avocado Touch-Up Paint
16285006 Whirlpool Spray
16Wire, 25“ Roll (White 14 GA.)
16Wire, 25` Roll (Red 14 Ga.)
16Wire, 25` Roll (Black 14 Ga.)
16FOIL, ALUMINUM OVEN (18“ X 25 )
16WPW10208653 Whirlpool Insulation
16350930 Whirlpool White Spray Paint
