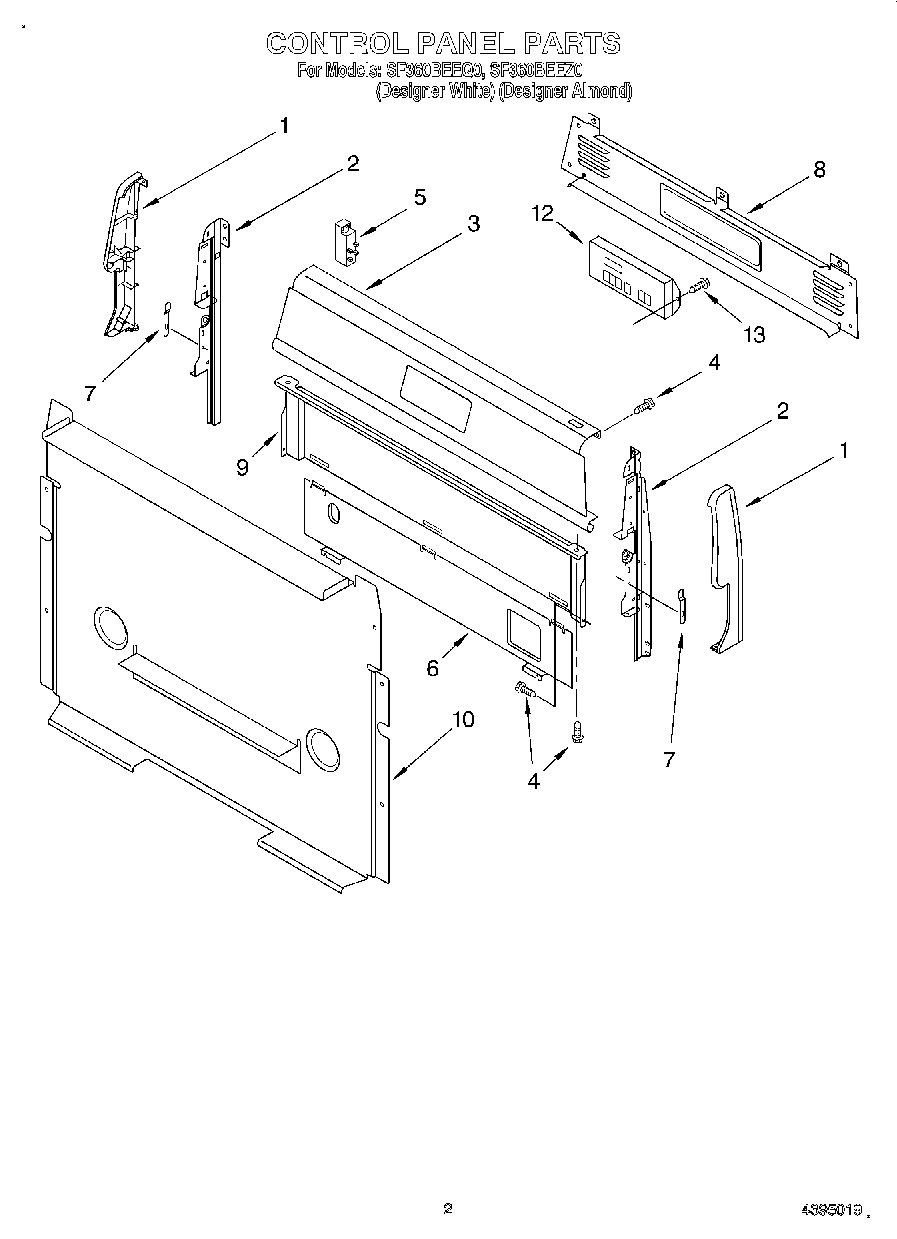

SF360BEEZ0 02 – CONTROL PANEL

SF360BEEZ0 02 – CONTROL PANEL

Written by

in

SF360BEEZ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
4Screw
5WPW10110491 Whirlpool Spark Module
5WPY706189 Whirlpool Stove Screw
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (White)
12Control, Range (Almond)
13SCREW
