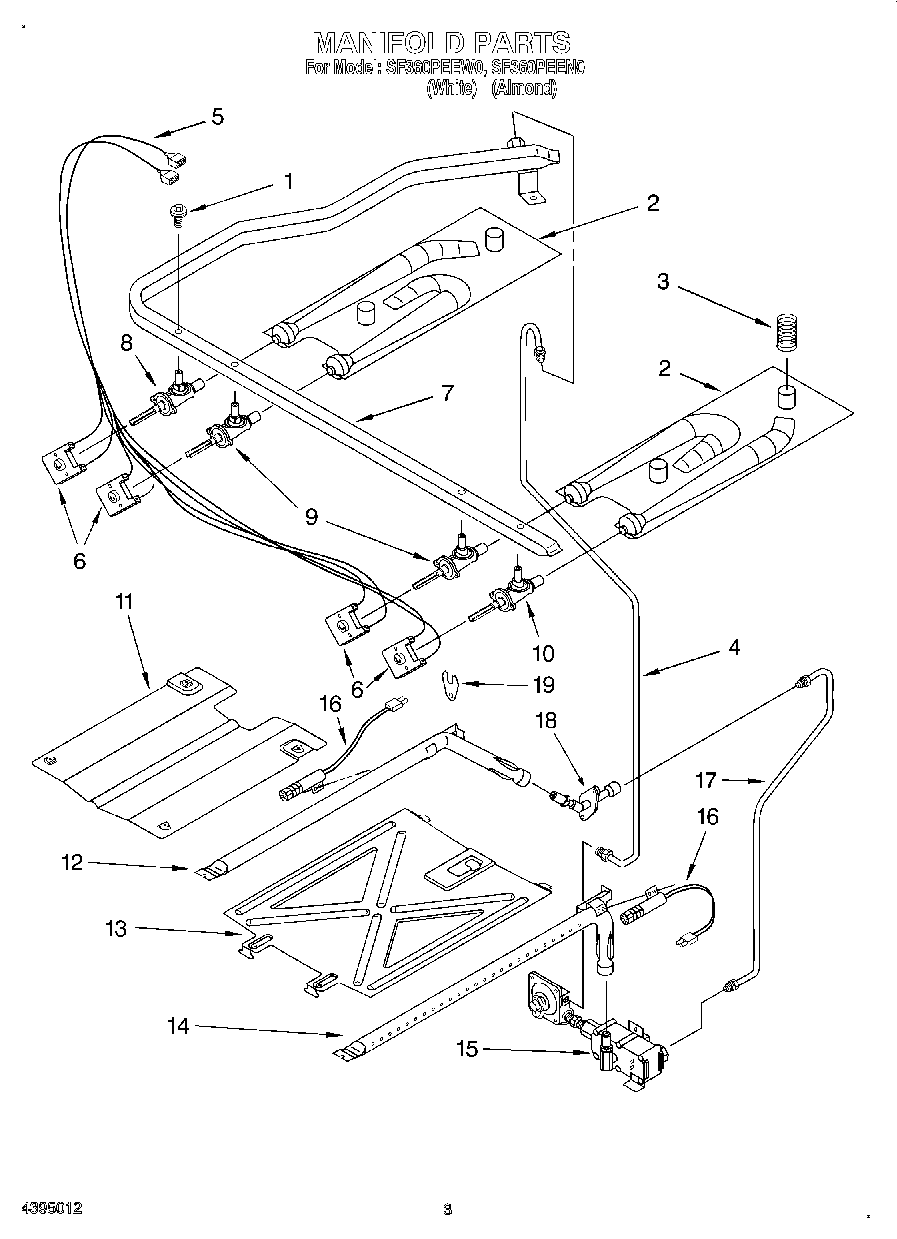

| 1 | WP3186217 Whirlpool Screw |
| 2 | Plate, Venturi (Right Hand) |
| 2 | Plate, Venturi (Left Hand) |
| 3 | Spring, Seal (4) |
| 4 | Tubing (Manifold to Regulator) |
| 5 | Harness, Igniter (Incl. Switches) |
| 6 | Switch, Igniter (4) |
| 7 | Pipe, Manifold |
| 8 | Valve, 7,500 BTU (LR) |
| 9 | Valve, 9,500 BTU (LF, RF) |
| 10 | Valve, 6,500 BTU (RR) |
| 11 | W10137062 Whirlpool Burner Baffle |
| 12 | Burner, Broiler |
| 13 | Spreader, Flame |
| 14 | 3196265 Whirlpool Oven Screw |
| 14 | Burner, Oven |
| 15 | Valve, Gas Combo |
| 15 | WP3196183 Whirlpool Screw |
| 16 | Igniter, Bake/Broil |
| 16 | W11684507 Whirlpool Screw |
| 17 | Tubing (Valve To Broiler Fitting) |
| 18 | Fitting, Broiler |
| 19 | Cover, Igniter |
| 19 | SCREW |
