SF360PEEW0 06 – DOOR, LIT/OPTIONAL

SF360PEEW0 06 – DOOR, LIT/OPTIONAL

Written by

in

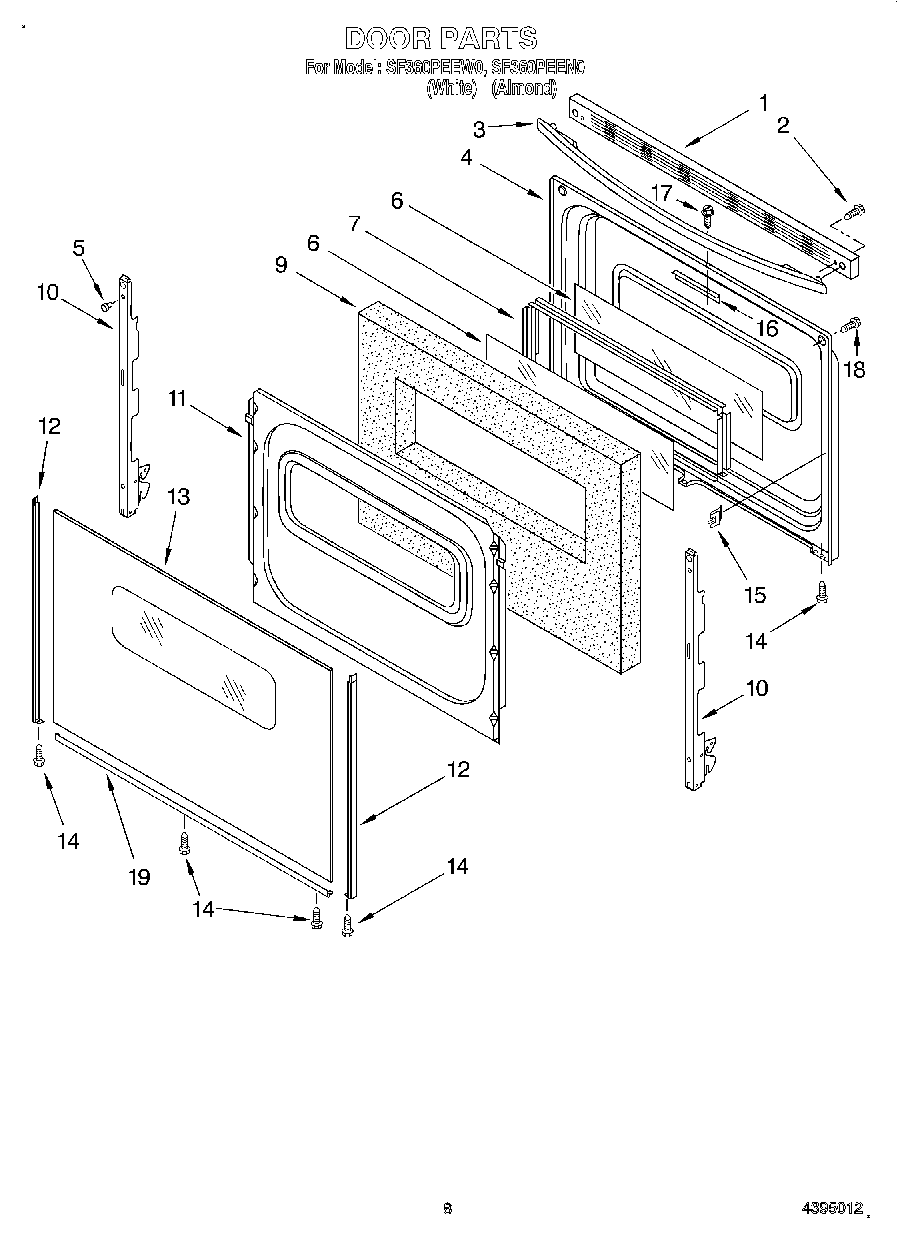

SF360PEEW0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3196290
	Clip
	Literature (Installation, Instructions (Template))
	16515 Whirlpool Clip
	WPL 3195197
	WPL 3195570
	WPL LIT3196193
	WPL LIT3196324
1	WP3196164 Whirlpool Screw
1	Trim, Top
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	Insulation, Door
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
13	WP9762477 Whirlpool Glass Door
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	1
19	8212471 Whirlpool Oven Paint
19	Grease
19	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19	8184858 Whirlpool Door Trim
19	72113 Whirlpool Touch-Up Paint
19	WPL 3196473
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	350942 Whirlpool Spray Paint
19	511873 Whirlpool Refrigerator Paint
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	WPL 799832
19	350930 Whirlpool White Spray Paint
