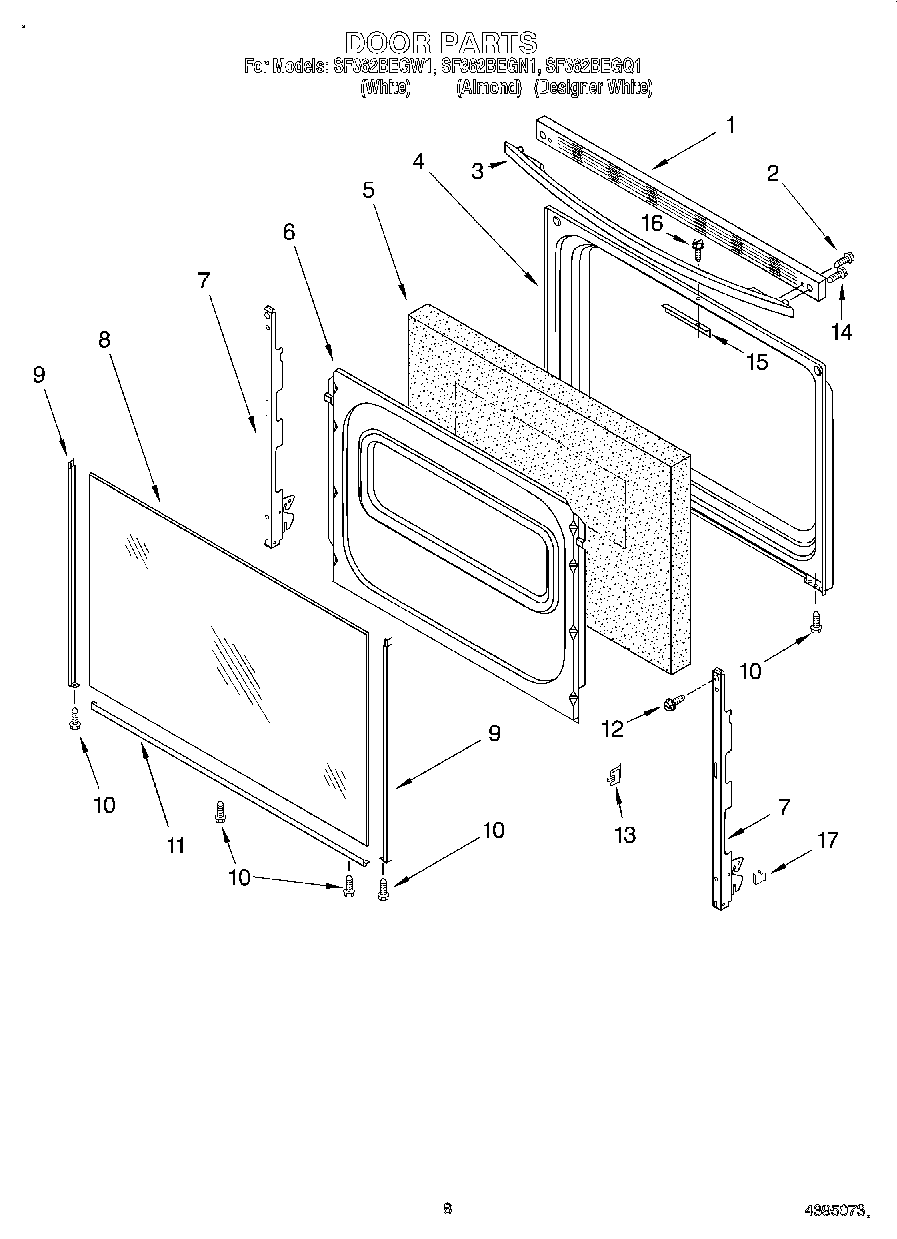

SF362BEGN1 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL 8053527
	Literature Parts (Tech Sheet)
	3196896 Whirlpool Clip
	WPL LIT8053708
	Literature (Installation, Instructions (Template))
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	WPL 8053907
	Safer Cooking Tips
	WPL LIT8053422
	814381 Whirlpool Pin
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Door (Black)
8	Glass, Door (White)
10	W10491985 Whirlpool Screw
11	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
11	8184858 Whirlpool Door Trim
12	238614 Whirlpool Bumper Hinge
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	WP3400832 Whirlpool Screw
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	8212471 Whirlpool Oven Paint
17	1
17	72113 Whirlpool Touch-Up Paint
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	LP Conversion Kit (Nat to LP)
17	Grease
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	350942 Whirlpool Spray Paint
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	511873 Whirlpool Refrigerator Paint
17	WPL 799832
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	WP3196925 Whirlpool Clip Assembly
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	350930 Whirlpool White Spray Paint
