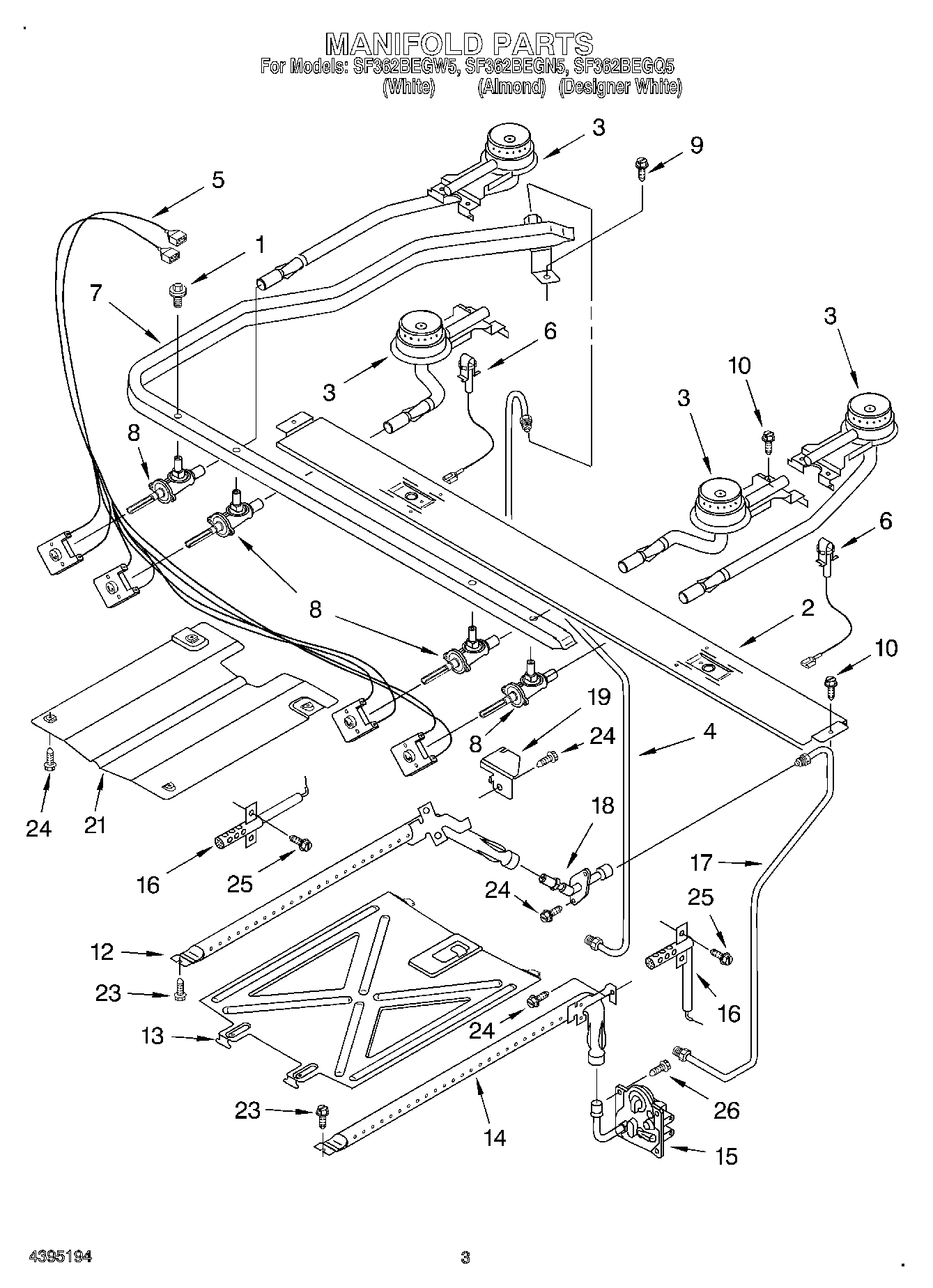

| 1 | WP3186217 Whirlpool Screw |
| 2 | Support, Burner |
| 3 | Burner (Left Rear) |
| 3 | Burner, Left Front |
| 3 | Burner (Right Front) |
| 3 | Burner (Right Rear) |
| 4 | Tubing (Manifold to Regulator) |
| 5 | Harness, Igniter (W/Switches) |
| 6 | Igniter, Surface (Right Hand) |
| 6 | Ignitor, Surface (Left) |
| 7 | Pipe, Manifold |
| 8 | Valve, Burner (4) |
| 10 | W10491985 Whirlpool Screw |
| 12 | WP8054078 Whirlpool Broiler Burner |
| 13 | Spreader, Flame (Oven) |
| 14 | 8190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter |
| 15 | WPW10293048 Whirlpool Gas Valve |
| 16 | WP8054129 Whirlpool Oven Igniter |
| 17 | Tubing (Broiler Fitting To Valve) |
| 18 | Fitting, Broiler |
| 19 | Cover, Igniter |
| 21 | W10137062 Whirlpool Burner Baffle |
| 23 | 3196265 Whirlpool Oven Screw |
| 24 | SCREW |
| 25 | W11684507 Whirlpool Screw |
| 26 | WP3400861 Whirlpool Screw |
| 26 | LP Conversion Kit (Nat to LP) |
| 26 | Spud Kit-Set of 4 (LP to Nat) |
