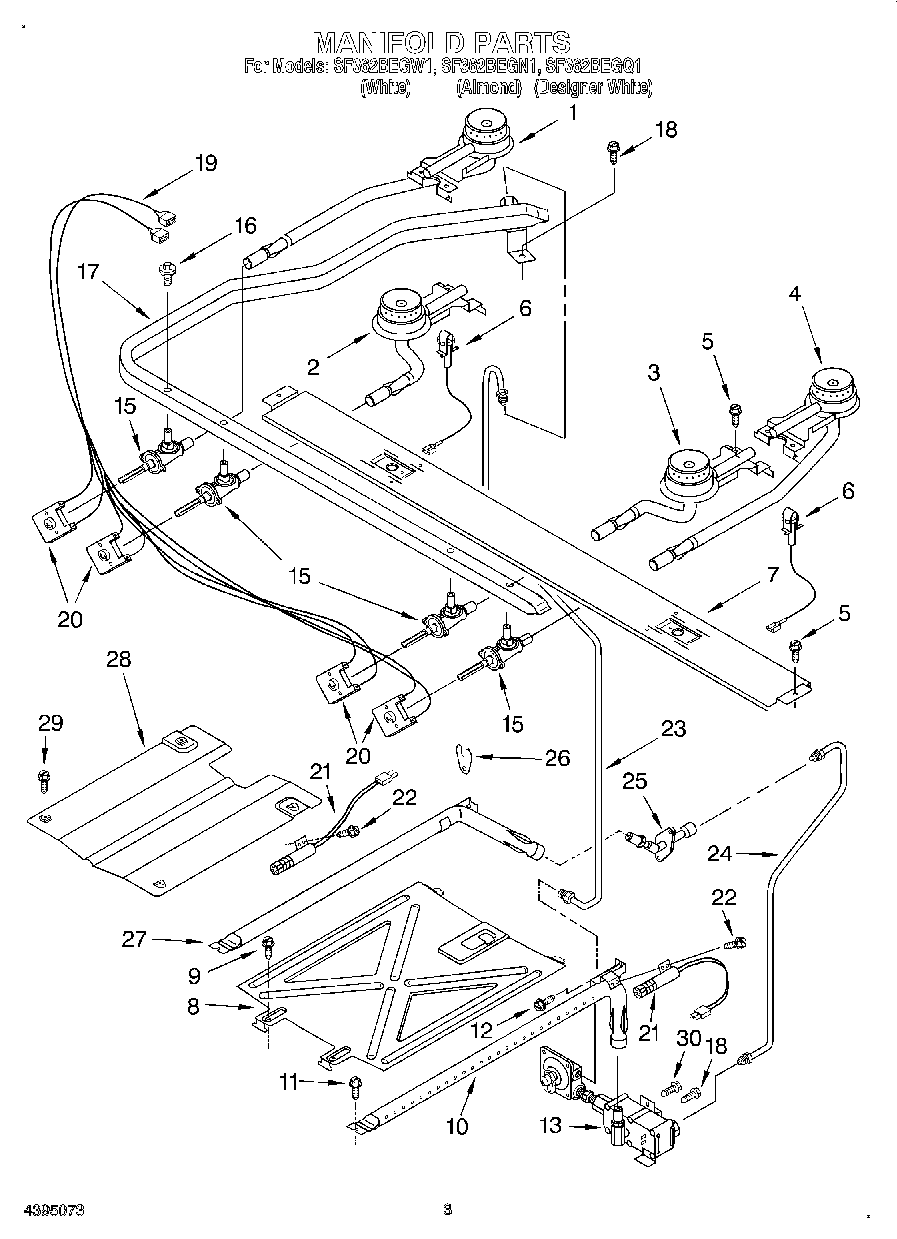

SF362BEGQ1 03 – MANIFOLD

Products

Position	Product
1	Burner (Left Rear)
2	Burner, Left Front
3	Burner (Right Front)
4	Burner (Right Rear)
5	W10491985 Whirlpool Screw
6	Igniter, Surface (Right Hand)
6	Ignitor, Surface (Left)
7	Support, Burner
8	Spreader, Flame (Oven)
10	Burner, Oven
13	Valve, Gas Combo
15	Valve, Burner (4)
16	WP3186217 Whirlpool Screw
17	Pipe, Manifold
19	Harness, Igniter
20	Switch, Spark
21	Igniter, Bake/Broil
22	W11684507 Whirlpool Screw
23	Tubing (Manifold to Regulator)
24	Tubing (Valve To Broiler Fitting)
25	Fitting, Broiler
26	Cover, Igniter
27	3196265 Whirlpool Oven Screw
27	Burner, Broiler
28	W10137062 Whirlpool Burner Baffle
29	SCREW
30	WP3196183 Whirlpool Screw
30	LP Conversion Kit (Nat to LP)
30	Spud Kit-Set of 4 (LP to Nat)
