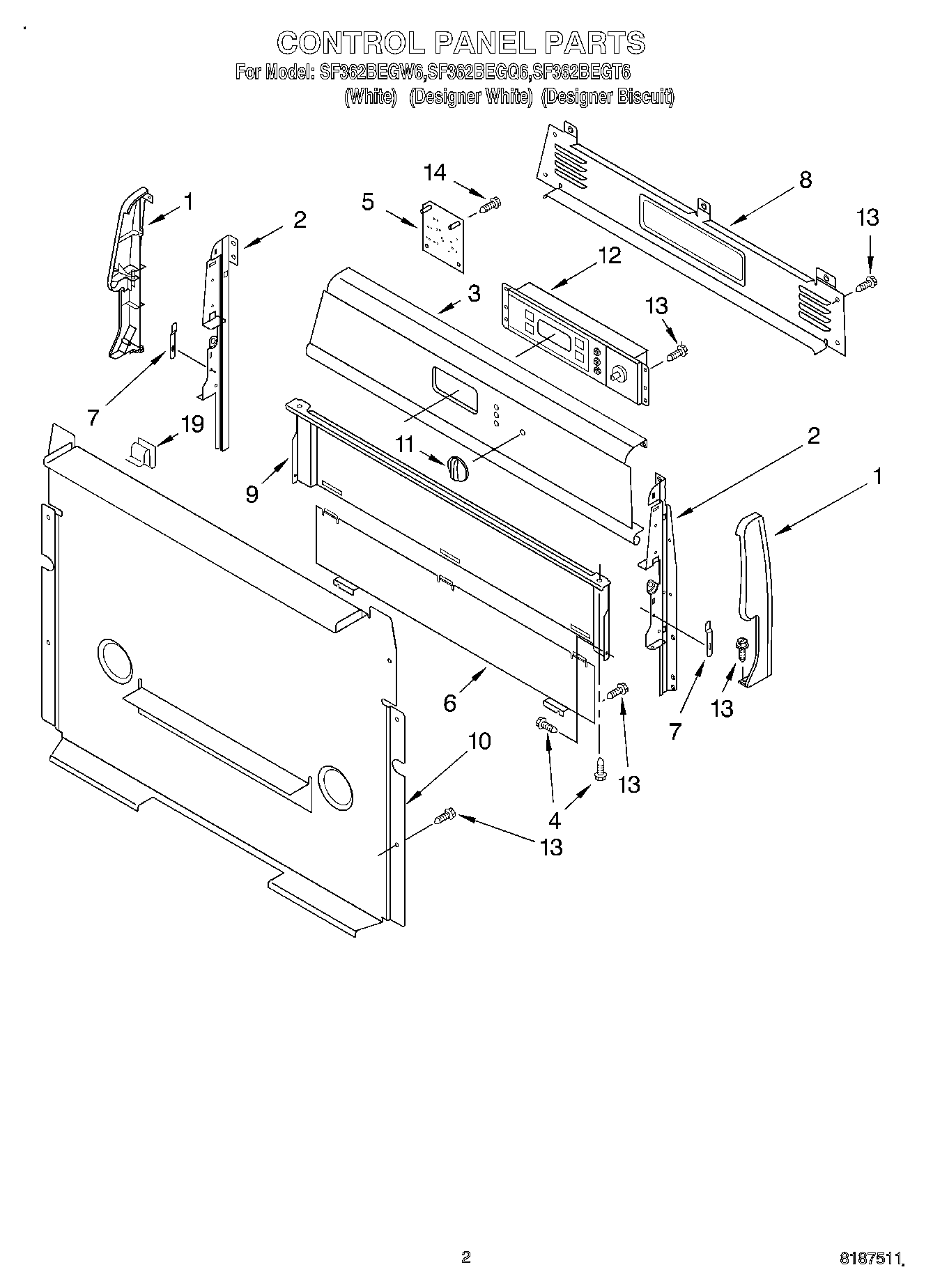

SF362BEGQ6 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4Screw
5Module, Spark
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob, 150 Control (Black)
11Knob, 150 Control (White)
11Knob, 150 Control (Biscuit)
12Control, Oven (Black)
12Control, Oven (Biscuit)
12Control, Range (White)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
