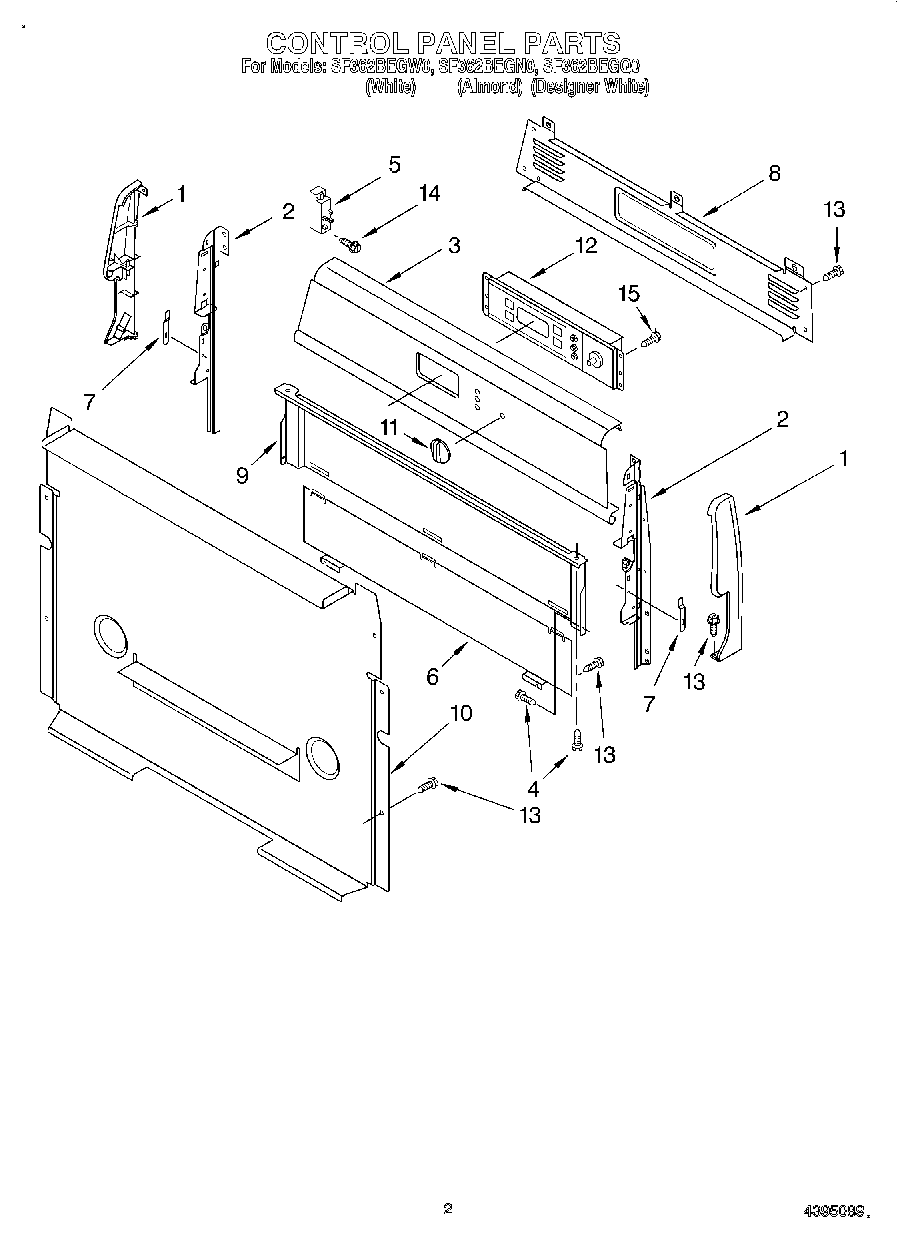

SF362BEGW0 02 – CONTROL PANEL

SF362BEGW0 02 – CONTROL PANEL

Written by

in

SF362BEGW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Screw
5Module Spark Reignition
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob, 150 Control (Black)
11Knob, 150 Control (White)
12Control, Range (White)
12Control, Oven (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
15WP3196175 Whirlpool Screw
