SF362BEGW1 02 – CONTROL PANEL

SF362BEGW1 02 – CONTROL PANEL

Written by

in

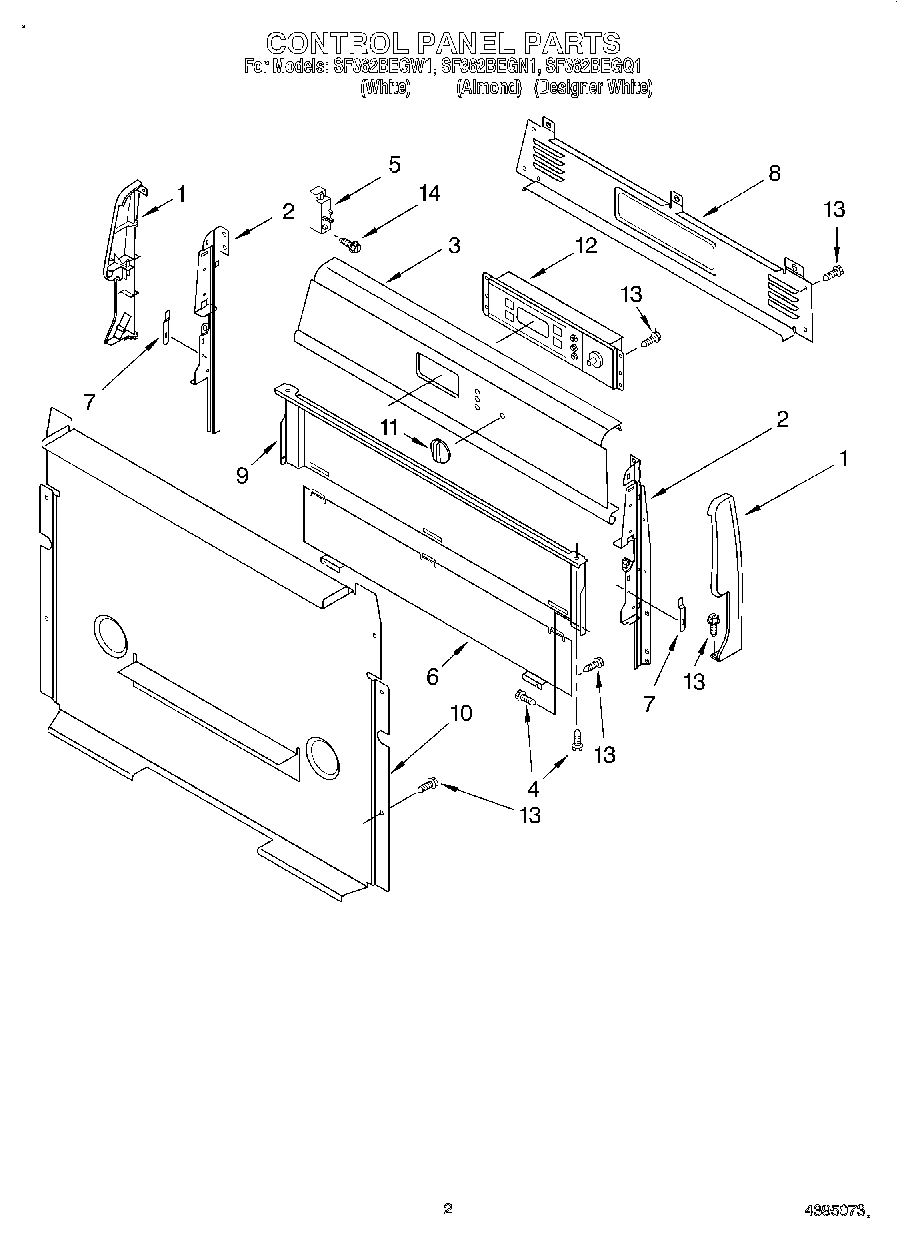

SF362BEGW1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4Screw
5Module Spark Reignition
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob, 150 Control (White)
11Knob, 150 Control (Black)
12Control, Range (White)
12Control, Oven (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
