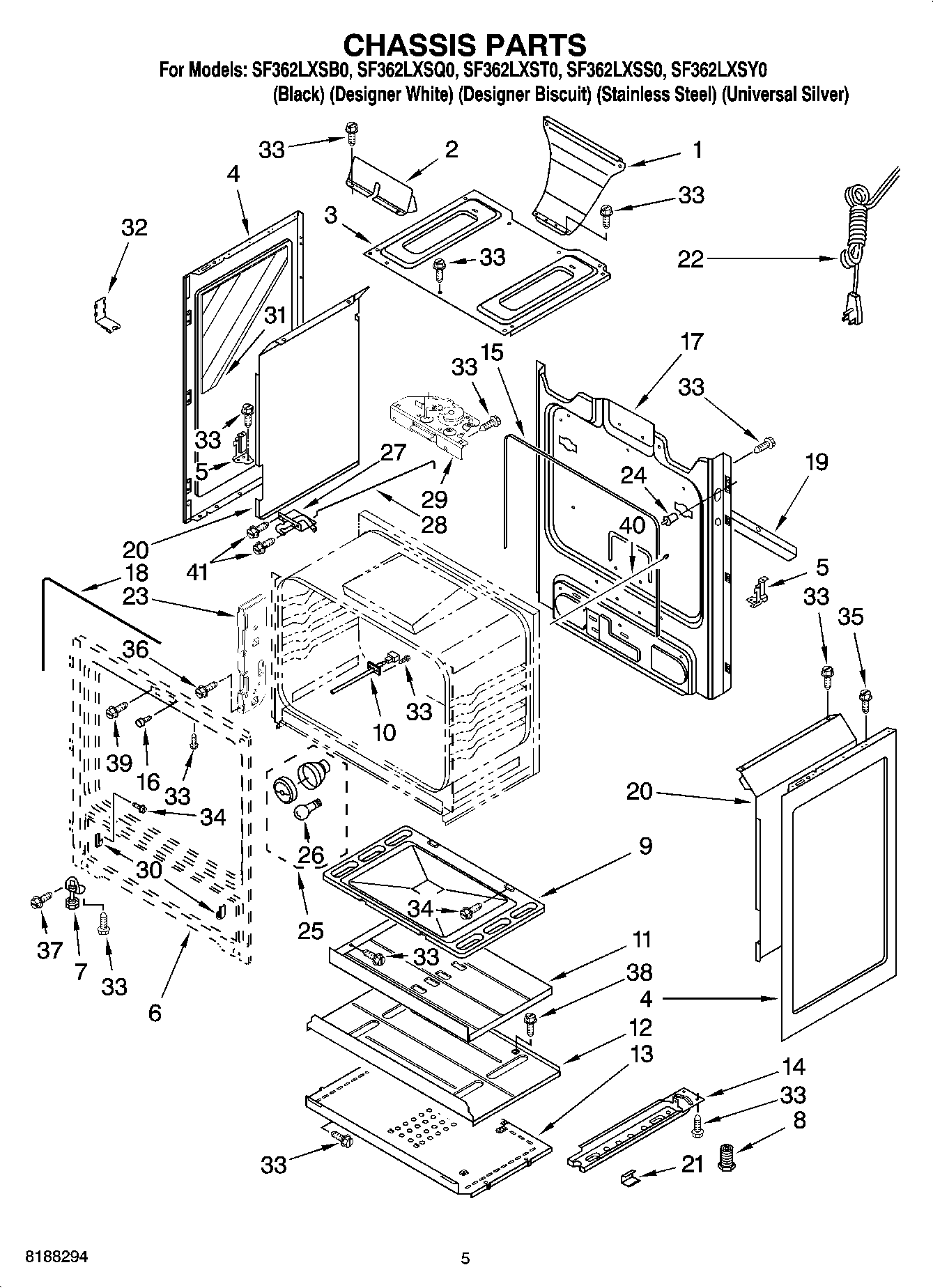

SF362LXSB0 04 – CHASSIS PARTS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W10162246 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
4	WPW10575396 Whirlpool Side Panel
5	8523249 Whirlpool Oven Support Bracket
6	Frame, Front Not Serviced
7	WP3196037 Whirlpool Leveling Foot
8	WPW10058460 Whirlpool Appliance Levelling Leg
9	WP3195097 Whirlpool Oven Bottom
10	WPW10181986 Whirlpool Oven Sensor
11	8053967 Whirlpool Oven Heat Baffle
12	8053969 Whirlpool Heat Shield
13	8053968 Whirlpool Oven Heat Shield
14	WPW10306546 Whirlpool Base Rail
15	Seal, Oven Flange
16	W10877054 Whirlpool Spacer Assembly
17	Back, Main
18	W11542153 Whirlpool Door Gasket
19	Brace, Main Back
20	9761449 Whirlpool Oven Retainer
20	9761448 Whirlpool Oven Retainer
21	Clip, Panel (6)
22	WP9757891 Whirlpool Power Cord
23	W10647259 Whirlpool Hinge Receiver
24	WP9757262 Whirlpool Light Switch
25	W11594027 Whirlpool Range Oven Light Socket
26	RANGE ONLY 40W 120V APPL BULB
27	WP9761013 Whirlpool Door Latch
28	W10078370 Whirlpool Latch Rod
29	WPW10107820 Whirlpool Door Latch
30	WPW10114344 Whirlpool Drawer Glide
31	Insulation
32	Clip, Mounting
33	SCREW
34	Screw
35	WPL 8281194
35	3196166 Whirlpool Screw
36	W10777162 Whirlpool Screw
37	Screw
38	WP7101P246-60 Whirlpool Screw
39	WP3400832 Whirlpool Screw
40	9757239 Whirlpool Oven Door Rod
41	W11169708 Whirlpool Screw
41	8053915 Whirlpool Oven Insulation
41	W11684915 Whirlpool Insulation
41	W11688737 Whirlpool Insulation
41	Insulation
