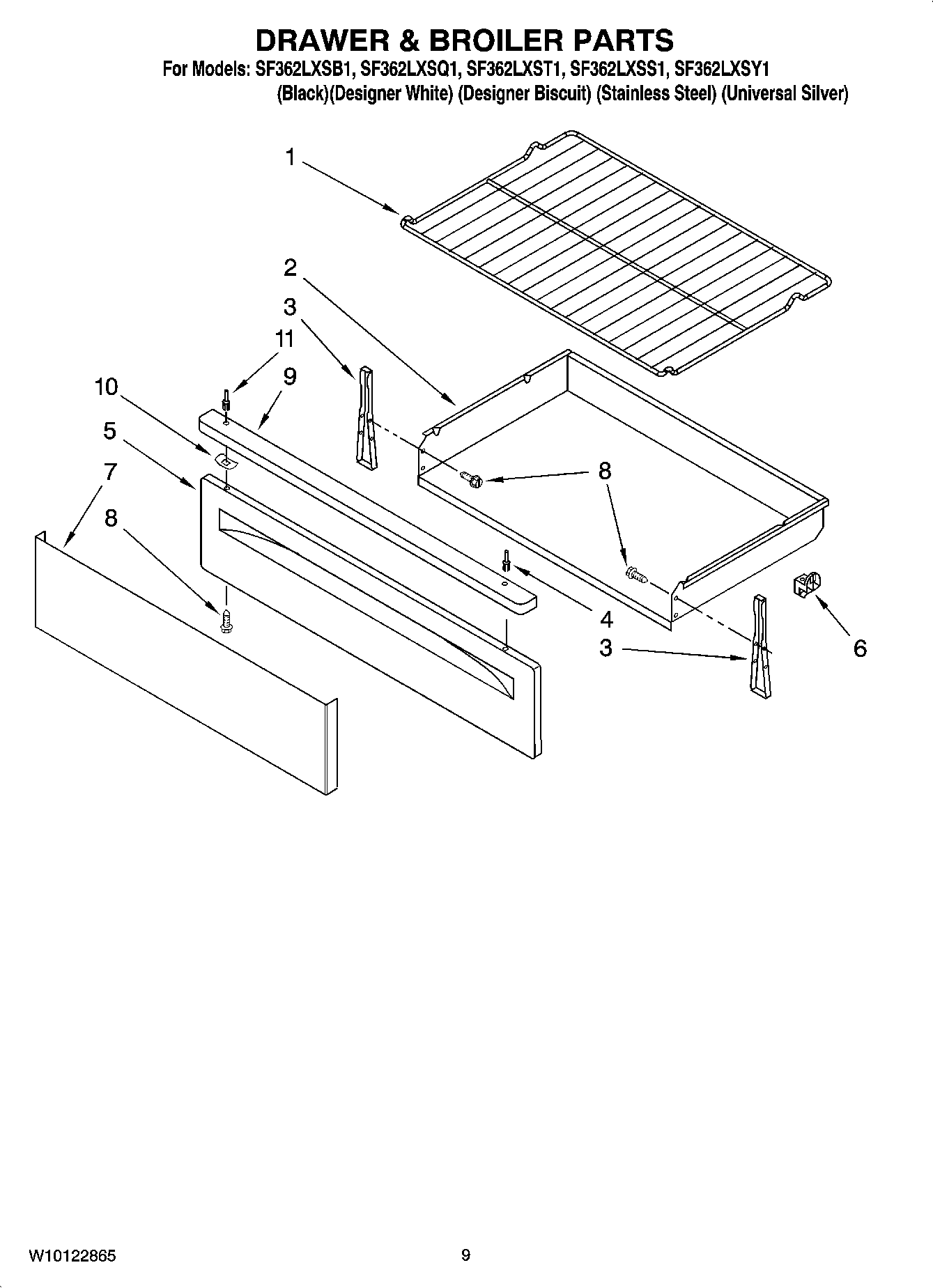

SF362LXSB1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI130011A
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	WPL ARI130012A
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Grease
	3196896 Whirlpool Clip
	WPL ARI130010A
	WPL ARI130009A
	WPL ARI130008A
	WPL ARI130007A
	WPL ARI130006A
	WPL W10082160
	WPL 8524207
	8523599 Whirlpool Oven Wire Harness
	W10045060 Whirlpool Grounding Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	799344 Whirlpool Refrigerator Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	4392901 Whirlpool Biscuit Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	511873 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	BRKT-MNTG
4	WP3196813 Whirlpool Rivet
4	3196815 Whirlpool Oven Rivet
4	WP3196814 Whirlpool Rivet
5	Panel, Drawer Front (Biscuit)
5	W11230486 Whirlpool Drawer Panel
5	W11230490 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	Panel, Stnls & US
8	WP3400832 Whirlpool Screw
9	Handle, Drawer
9	Handle (Black)
10	WP9781235 Whirlpool Clip
11	WPW10031790 Whirlpool Screw
