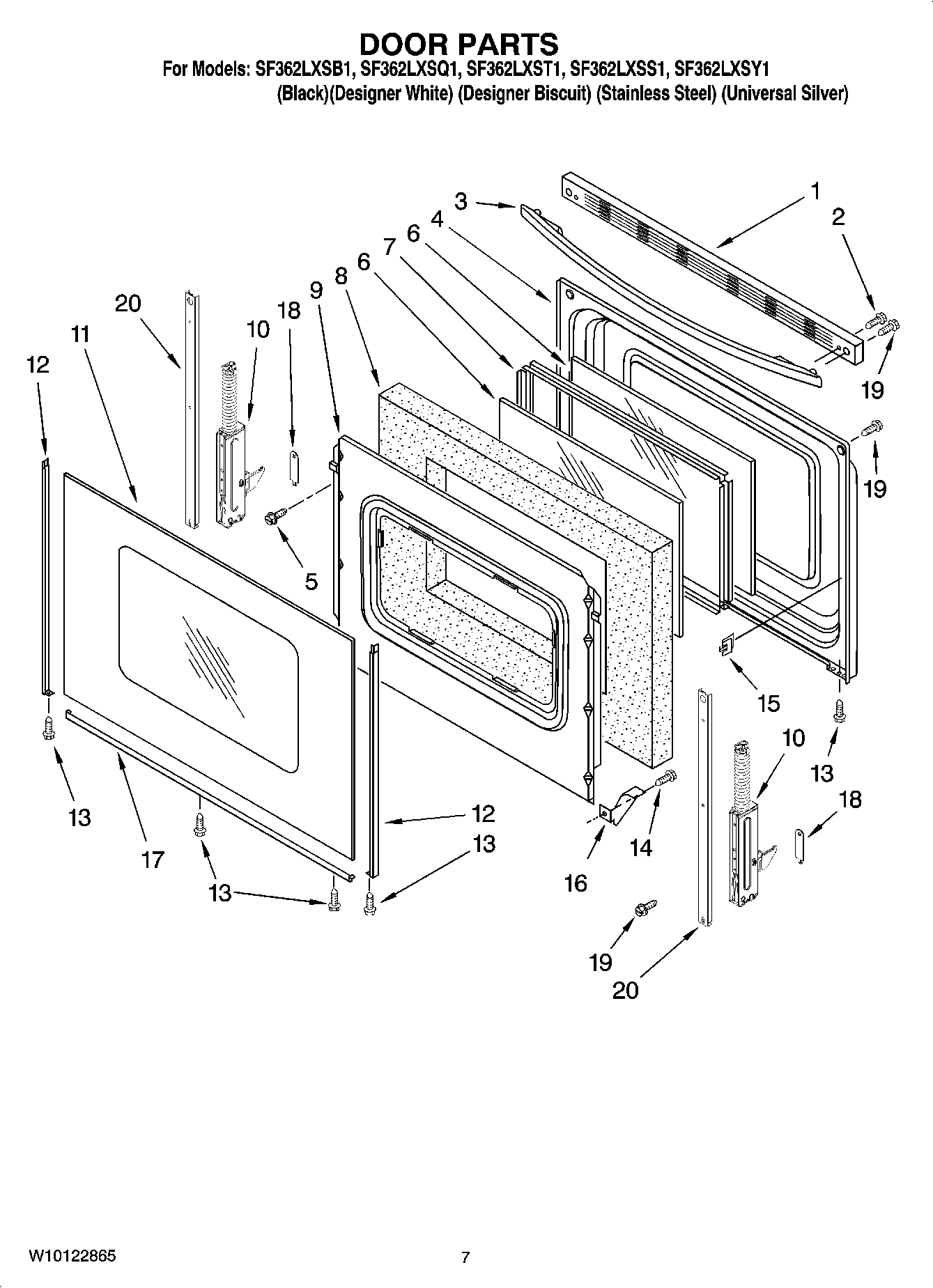

SF362LXSQ1 05 – DOOR PARTS

Products

Position	Product
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (White)
1	Trim, Top (Biscuit)
1	Trim, Top (Universal Silver)
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
3	Handle, Door (Biscuit)
3	Handle, Door (Universal Silver)
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
10	W10347466 Whirlpool Door Hinge
11	Glass, Outer Door (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Stainless Steel)
11	WPW10118454 Whirlpool Door Outer Glass White
12	8184858 Whirlpool Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	Clip, Glass (4)
16	WP3196794 Whirlpool Glass Bracket
17	Trim, Bottom (Universal Silver)
17	WP8523175 Whirlpool Door Trim Assembly
17	WP8523177 Whirlpool Door Trim Assembly
17	WP8523178 Whirlpool Door Trim
17	WP8523180 Whirlpool Door Trim Assembly
18	9761517 Whirlpool Oven Clip Assembly
19	W10777162 Whirlpool Screw
20	W11502236 Whirlpool Door Trim
