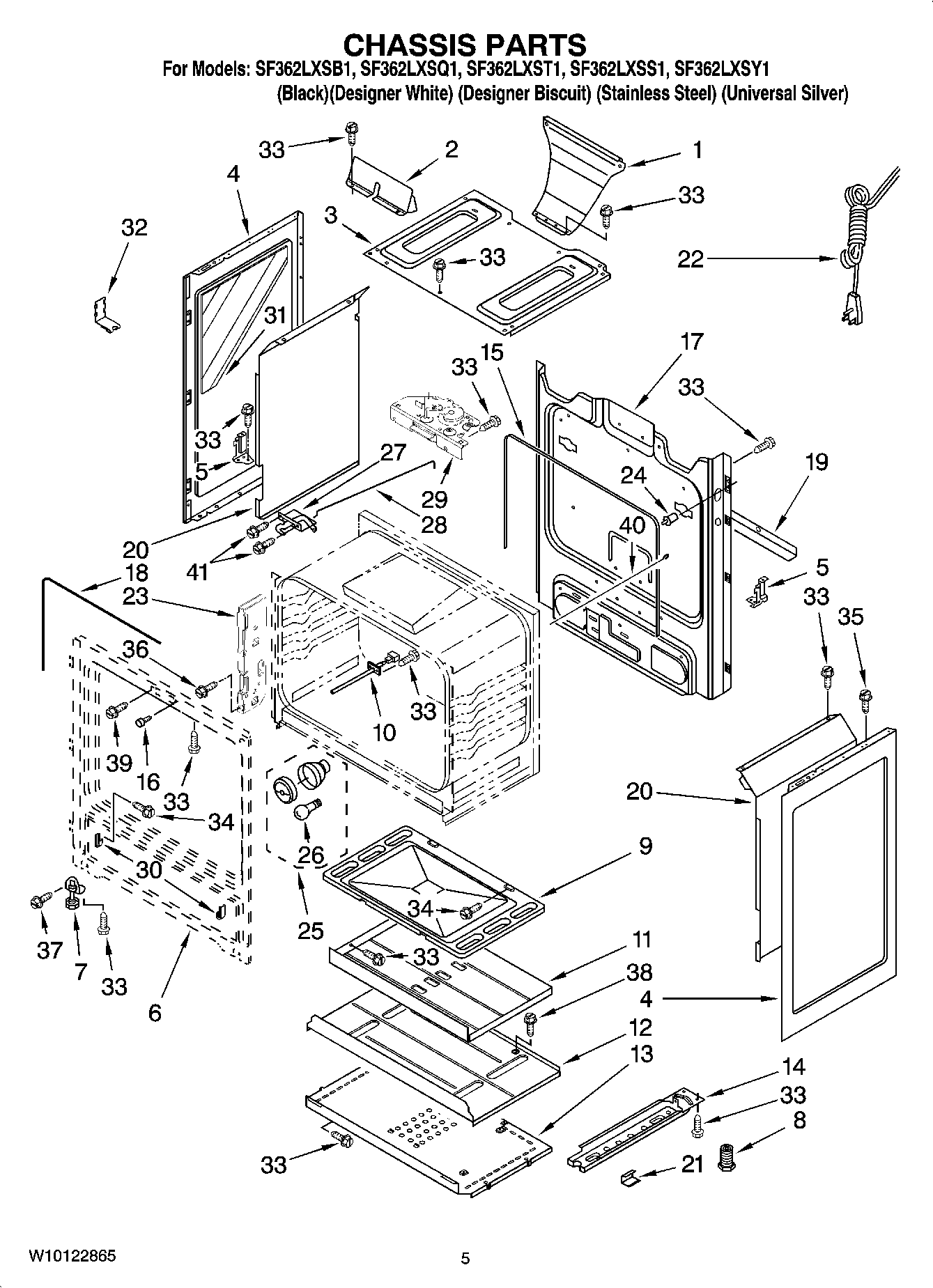

SF362LXSS1 04 – CHASSIS PARTS

Products

PositionProduct
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4W10162246 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
4WPW10575396 Whirlpool Side Panel
58523249 Whirlpool Oven Support Bracket
6Frame, Front Not Serviced
7WP3196037 Whirlpool Leveling Foot
8WPW10058460 Whirlpool Appliance Levelling Leg
9WP3195097 Whirlpool Oven Bottom
10WPW10181986 Whirlpool Oven Sensor
118053967 Whirlpool Oven Heat Baffle
128053969 Whirlpool Heat Shield
138053968 Whirlpool Oven Heat Shield
14WPW10306546 Whirlpool Base Rail
15Seal, Oven Flange
16W10877054 Whirlpool Spacer Assembly
17Back, Main
18W11542153 Whirlpool Door Gasket
19Brace, Main Back
209761449 Whirlpool Oven Retainer
209761448 Whirlpool Oven Retainer
21Clip, Panel (6)
22WP9757891 Whirlpool Power Cord
23W10647259 Whirlpool Hinge Receiver
24WP9757262 Whirlpool Light Switch
25W11594027 Whirlpool Range Oven Light Socket
26RANGE ONLY 40W 120V APPL BULB
27WP9761013 Whirlpool Door Latch
28W10078370 Whirlpool Latch Rod
29WPW10107820 Whirlpool Door Latch
30WPW10114344 Whirlpool Drawer Glide
31Insulation
32Clip, Mounting
33SCREW
34Screw
35WPL 8281194
353196166 Whirlpool Screw
36W10777162 Whirlpool Screw
37Screw
38WP7101P246-60 Whirlpool Screw
39WP3400832 Whirlpool Screw
409757239 Whirlpool Oven Door Rod
41W11169708 Whirlpool Screw
418053915 Whirlpool Oven Insulation
41W11684915 Whirlpool Insulation
41W11688737 Whirlpool Insulation
41Insulation
