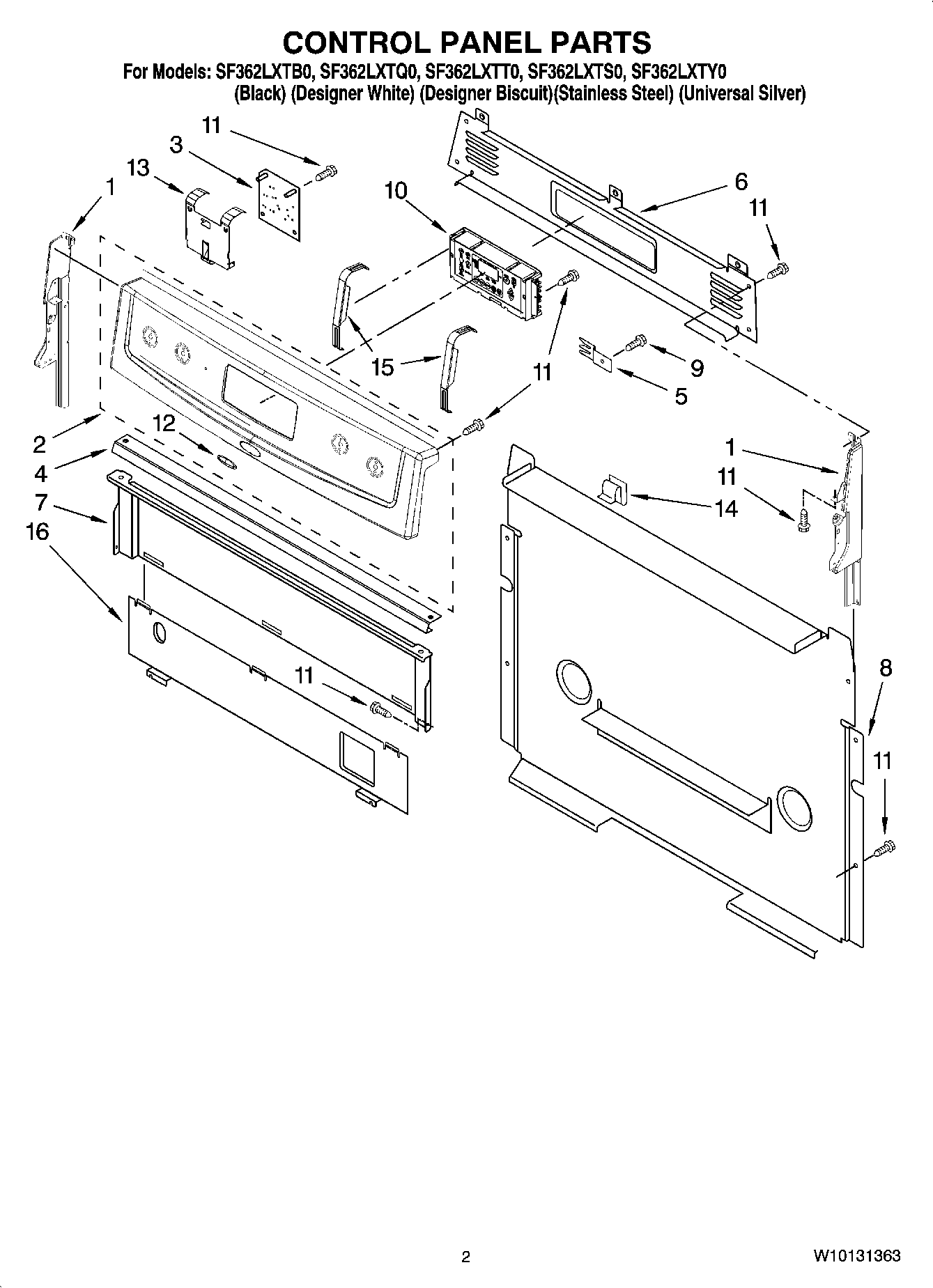

SF362LXTB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Biscuit Left Hand)
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11230612 Whirlpool Panel End Cap
2	Panel, Backguard (Biscuit)
2	Panel, Backguard (Black)
2	Panel, Backguard (Silver for Stnlss)
2	Panel, Backguard (White)
3	WPW10331686 Whirlpool Oven Spark Module
4	Bracket, Console
5	8523412 Whirlpool Mounting Bracket
6	Cover, Upper
7	Shield, Heat
8	Cover, Lower
9	WP3196557 Whirlpool Screw
10	Control, Range (White)
10	Control, Range (Black)
10	Control, Range (Biscuit)
11	SCREW
12	Nameplate
13	Brkt-Mntg, DSI
14	WP8273564 Whirlpool Clip
15	BRACKET, MOUNTING EOC
16	8053505 Whirlpool Oven Shield
