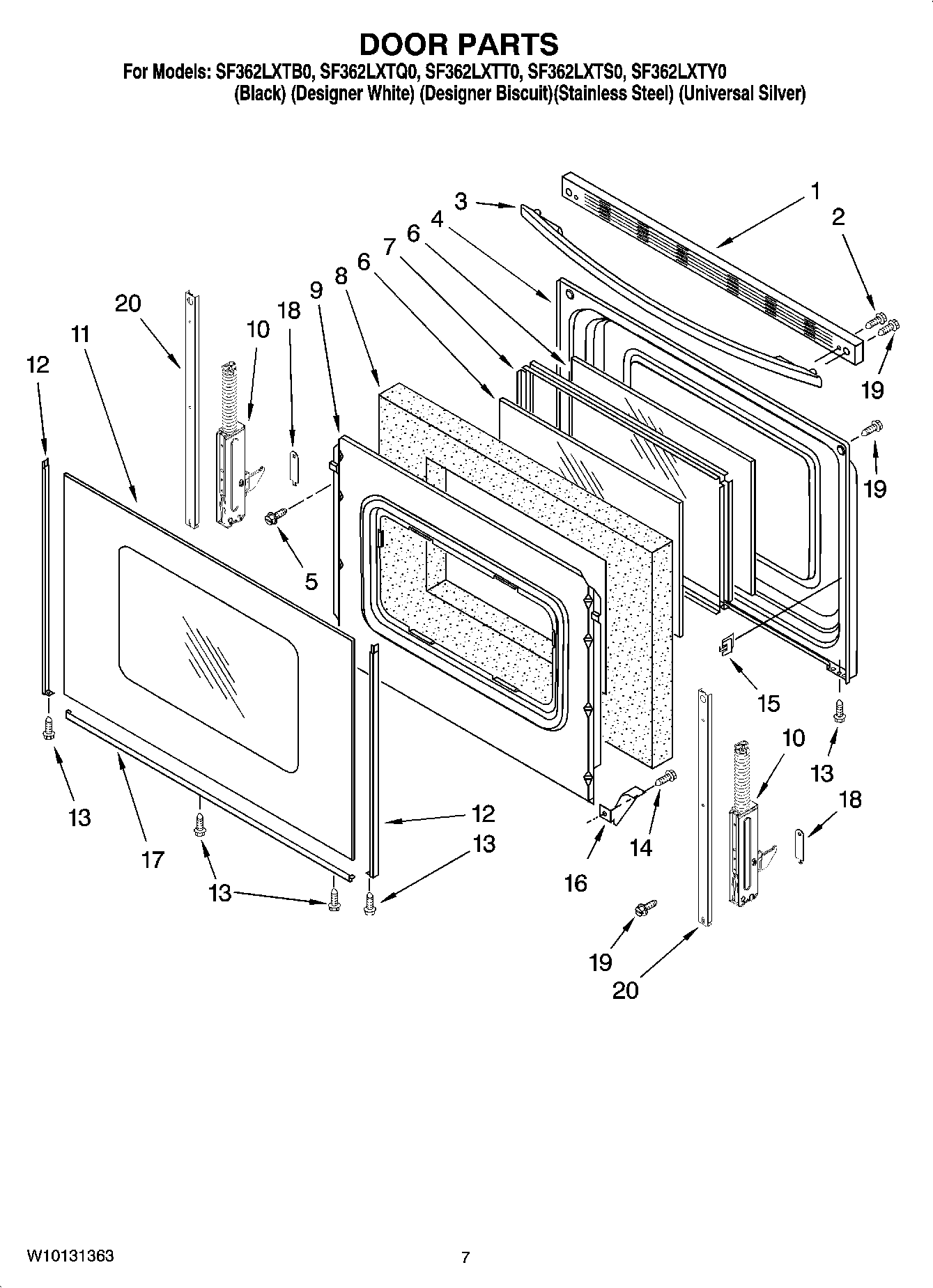

SF362LXTB0 05 – DOOR PARTSadmin2025-04-26T12:59:34+00:00SF362LXTB0 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP9762391 Whirlpool Door Trim Assembly |
| 1 | Trim, Top (White) |
| 1 | Trim, Top (Biscuit) |
| 1 | Trim, Top (Universal Silver) |
| 2 | WP3196164 Whirlpool Screw |
| 3 | Handle, Door (White) |
| 3 | Handle, Door (Black) |
| 3 | Handle, Door (Biscuit) |
| 3 | Handle, Door (Universal Silver) |
| 4 | WP9761344 Whirlpool Door Liner |
| 5 | WPW10031790 Whirlpool Screw |
| 6 | WP8053948 Whirlpool Door Glass |
| 7 | WPW10316950 Whirlpool Window Frame |
| 8 | WPW10278991 Whirlpool Insulation |
| 9 | W11539580 Whirlpool Retainer |
| 10 | W10347464 Whirlpool Door Hinge |
| 10 | W10347466 Whirlpool Door Hinge |
| 11 | Glass, Outer Door (Biscuit) |
| 11 | WPW10118455 Whirlpool Door Glass Assembly |
| 11 | Glass, Outer (Stainless Steel) |
| 11 | WPW10118454 Whirlpool Door Outer Glass White |
| 12 | 8184858 Whirlpool Door Trim |
| 12 | WP8523166 Whirlpool Door Trim |
| 12 | WP8523167 Whirlpool Door Trim Assembly |
| 12 | WP8523172 Whirlpool Left Door Trim |
| 12 | W10761014 Whirlpool Right Door Trim |
| 12 | W10761018 Whirlpool Dishwasher Left Door Trim |
| 12 | WP8523173 Whirlpool Door Trim |
| 13 | W10491985 Whirlpool Screw |
| 14 | WP3196175 Whirlpool Screw |
| 15 | Clip, Glass (4) |
| 16 | WP3196794 Whirlpool Glass Bracket |
| 17 | Trim, Bottom (Universal Silver) |
| 17 | WP8523175 Whirlpool Door Trim Assembly |
| 17 | WP8523177 Whirlpool Door Trim Assembly |
| 17 | WP8523178 Whirlpool Door Trim |
| 17 | WP8523180 Whirlpool Door Trim Assembly |
| 18 | 9761517 Whirlpool Oven Clip Assembly |
| 19 | W10777162 Whirlpool Screw |
| 20 | W11502236 Whirlpool Door Trim |
