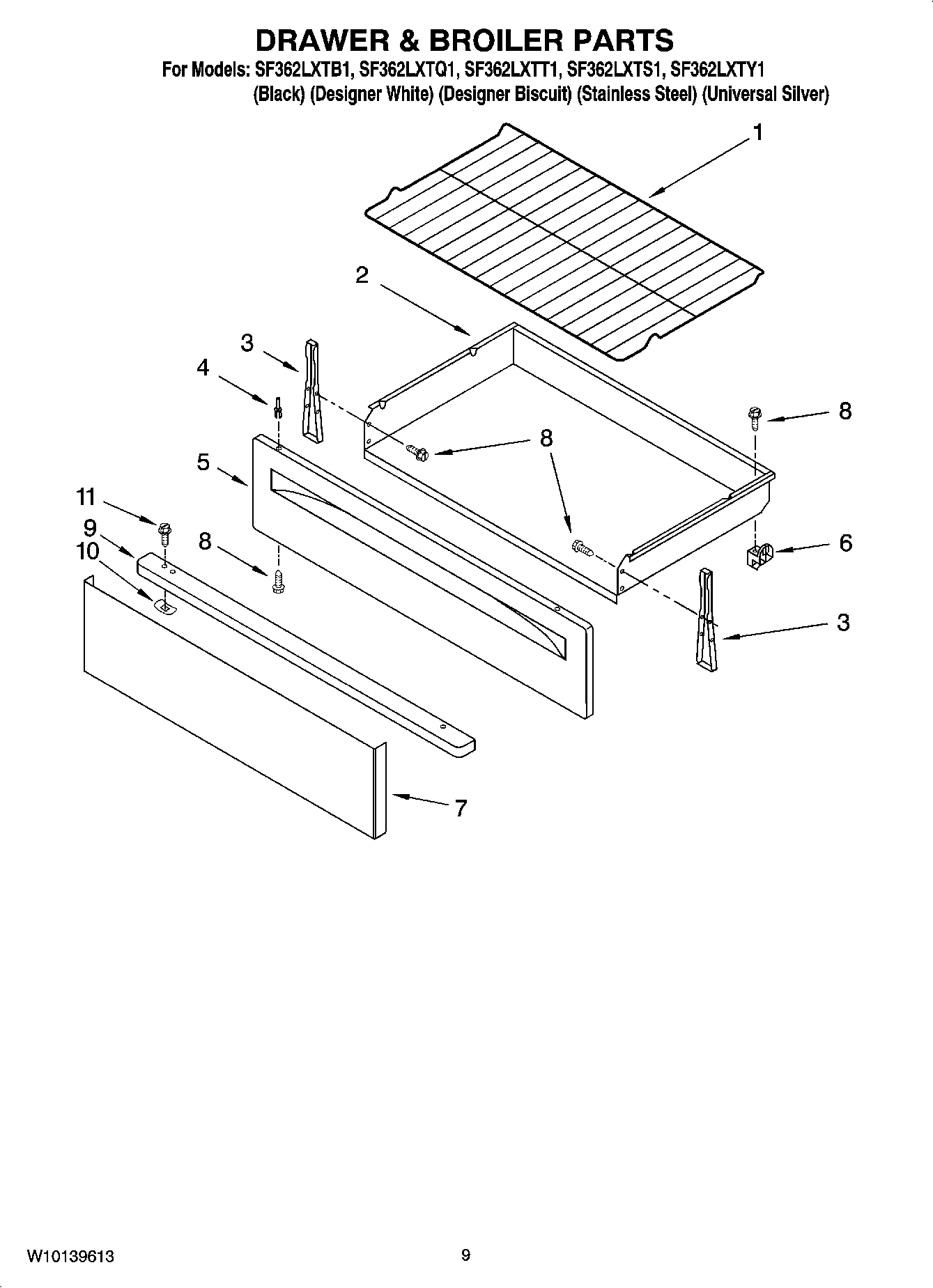

SF362LXTS1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

SF362LXTS1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

SF362LXTS1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI130108A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
WPL ARI130109A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Grease
3196896 Whirlpool Clip
WPL ARI130107A
WPL ARI130106A
WPL ARI130105A
WPL ARI130104A
WPL ARI130103A
WPL W10082160
WPL 8524207
8523599 Whirlpool Oven Wire Harness
W10045060 Whirlpool Grounding Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
799344 Whirlpool Refrigerator Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 Whirlpool Biscuit Spray Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W11447673 Whirlpool Range Tip Anchor
350930 Whirlpool White Spray Paint
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3BRKT-MNTG
4WP3196813 Whirlpool Rivet
43196815 Whirlpool Oven Rivet
4WP3196814 Whirlpool Rivet
5Panel, Drawer Front (Biscuit)
5W11230486 Whirlpool Drawer Panel
5W11230490 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7Panel, Stnls & US
8WP3400832 Whirlpool Screw
9Handle, Drawer
9Handle (Black)
10WP9781235 Whirlpool Clip
11WPW10031790 Whirlpool Screw
