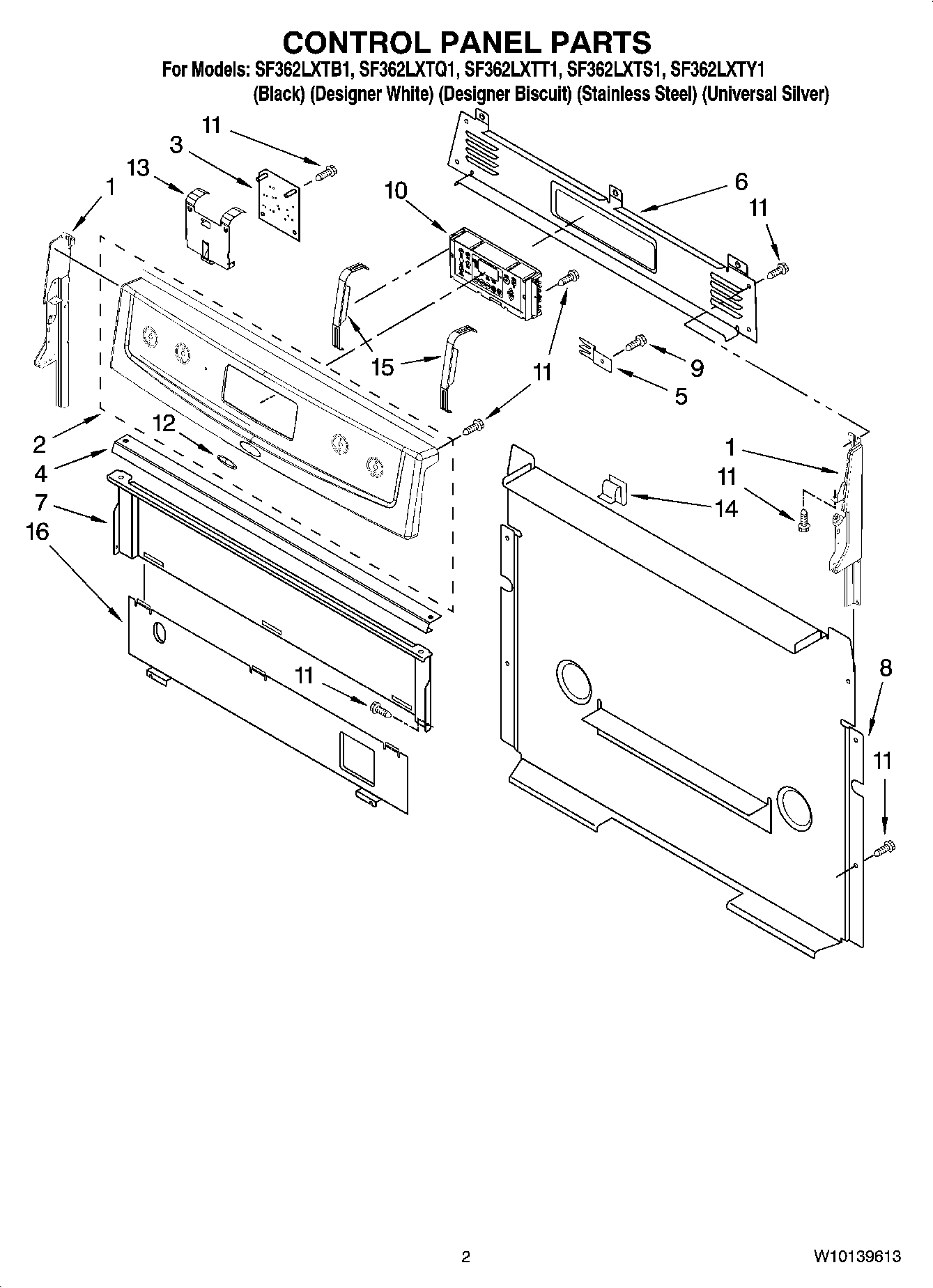

SF362LXTT1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	Endcap (Biscuit Left Hand)
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Panel, Backguard (Biscuit)
2	Panel, Backguard (White)
2	Panel, Backguard (Silver for Stnlss)
2	Panel, Backguard (Black)
3	WPW10331686 Whirlpool Oven Spark Module
4	Bracket, Console
5	8523412 Whirlpool Mounting Bracket
6	Cover, Upper
7	Shield, Heat
8	Cover, Lower
9	WP3196557 Whirlpool Screw
10	WPW10108200 Whirlpool Electronic Control Board
10	WPW10108190 Whirlpool Electronic Control Board
11	SCREW
12	Nameplate
13	Brkt-Mntg, DSI
14	WP8273564 Whirlpool Clip
15	BRACKET, MOUNTING EOC
16	8053505 Whirlpool Oven Shield
