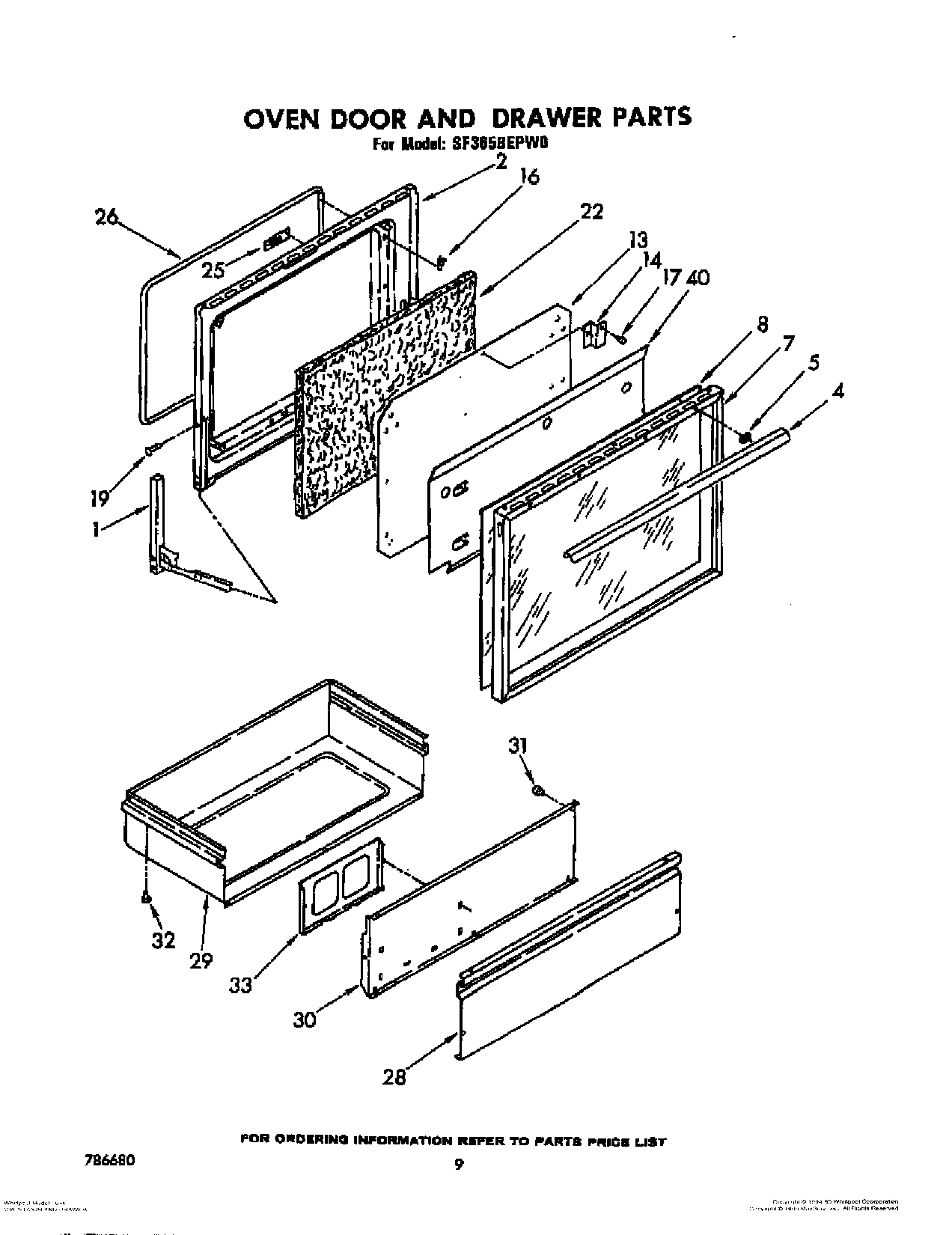

SF365BEPW0 07 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (Left Side)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	WP308685 Whirlpool Microwave Screw
2	Screw, 8-32 X 5/8 (4)
2	Liner, Oven Door
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper Window (5)
19	Pin, Hinge (2)
22	WPW10208653 Whirlpool Insulation
25	Plate, Latch
26	Gasket Assembly
28	panel, drawer (toast)
28	Panel, Drawer (Platinum)
28	Panel, Drawer (Almond)
28	Panel, Drawer (White)
29	Wrapper, Storage Drawer
30	Liner, Door Panel
31	Bumper, Rubber
32	Rivet, Plastic (4)
33	Rack, Literature
40	Baffle, Air
