SF365BEPW1 05 – OVEN ELECTRICAL
Written by
in

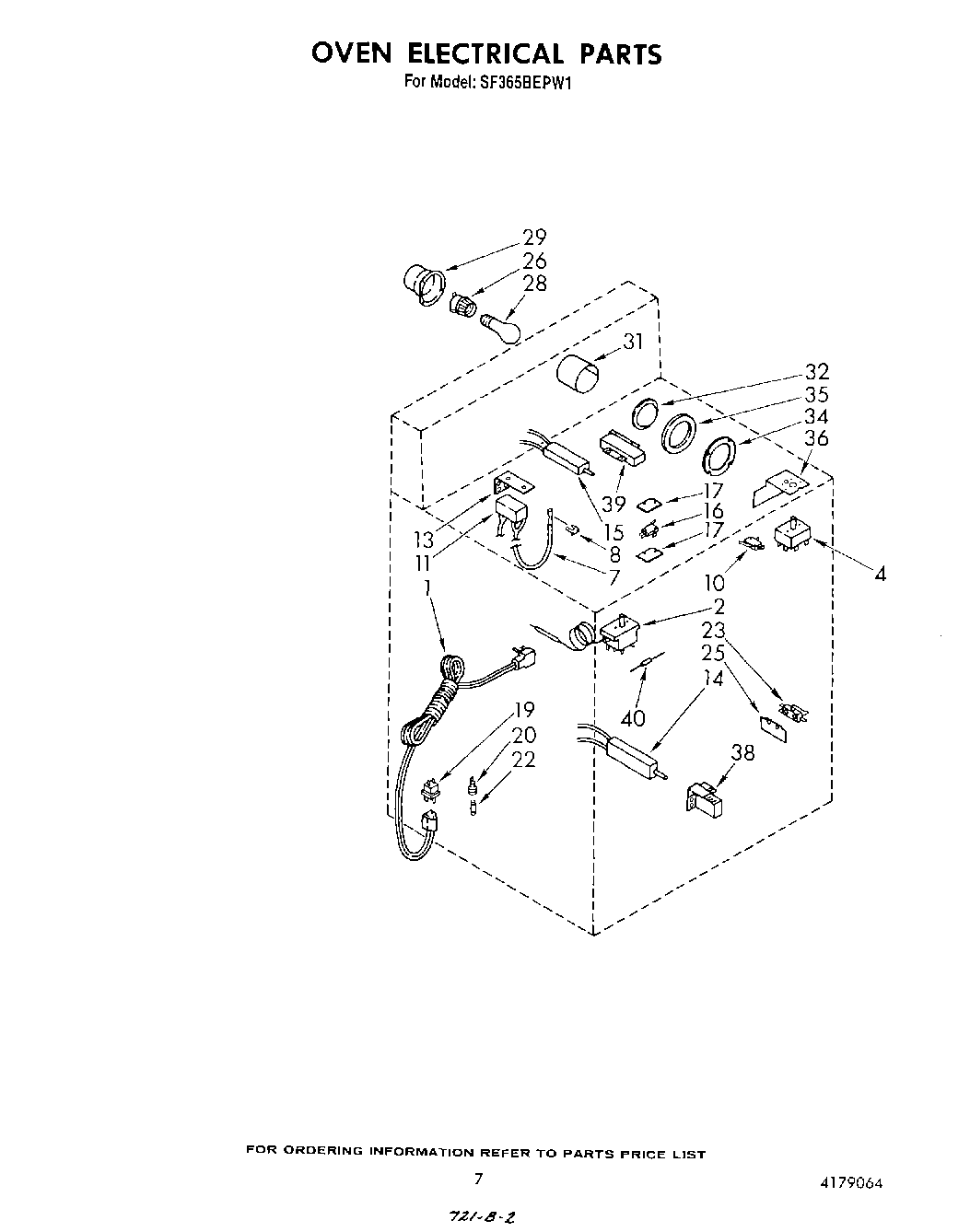

SF365BEPW1 05 – OVEN ELECTRICAL
Products
Position
Product
1
Cord, Power
2
Thermostat, Oven
4
Switch, Selector
7
4157608 Whirlpool Surface Igniter
8
WPY0070927 Whirlpool Microwave Clip
10
Screw, 4-40 X 5/8 (2)
10
Nut
10
Switch, Burner
11
Module, Spark
13
Bracket, Spark Module
14
786324 Whirlpool Flat Igniter
15
Nut, 6-32 (6)
16
Switch, Oven Door Latch
16
screw, 4-40 x 5/8 (2)
17
Insulator, Switch
19
Plug, Male
20
Holder, Fuse
22
Fuse, 5 AMP
23
Switch, Aux. Light
25
Insulation, Door Switch (2)
26
Socket, Oven Lamp
28
RANGE ONLY 40W 120V APPL BULB
29
Housing, Light
31
Retainer, Insulation
32
Lens, Oven Light
34
Retainer, Oven Light Lens
35
Gasket, Oven Light
36
Insulator, Control (2)
38
Bracket, Bake Ignitor
39
Bracket, Broiler Ignitor
40
Resistor, 10 K
←
