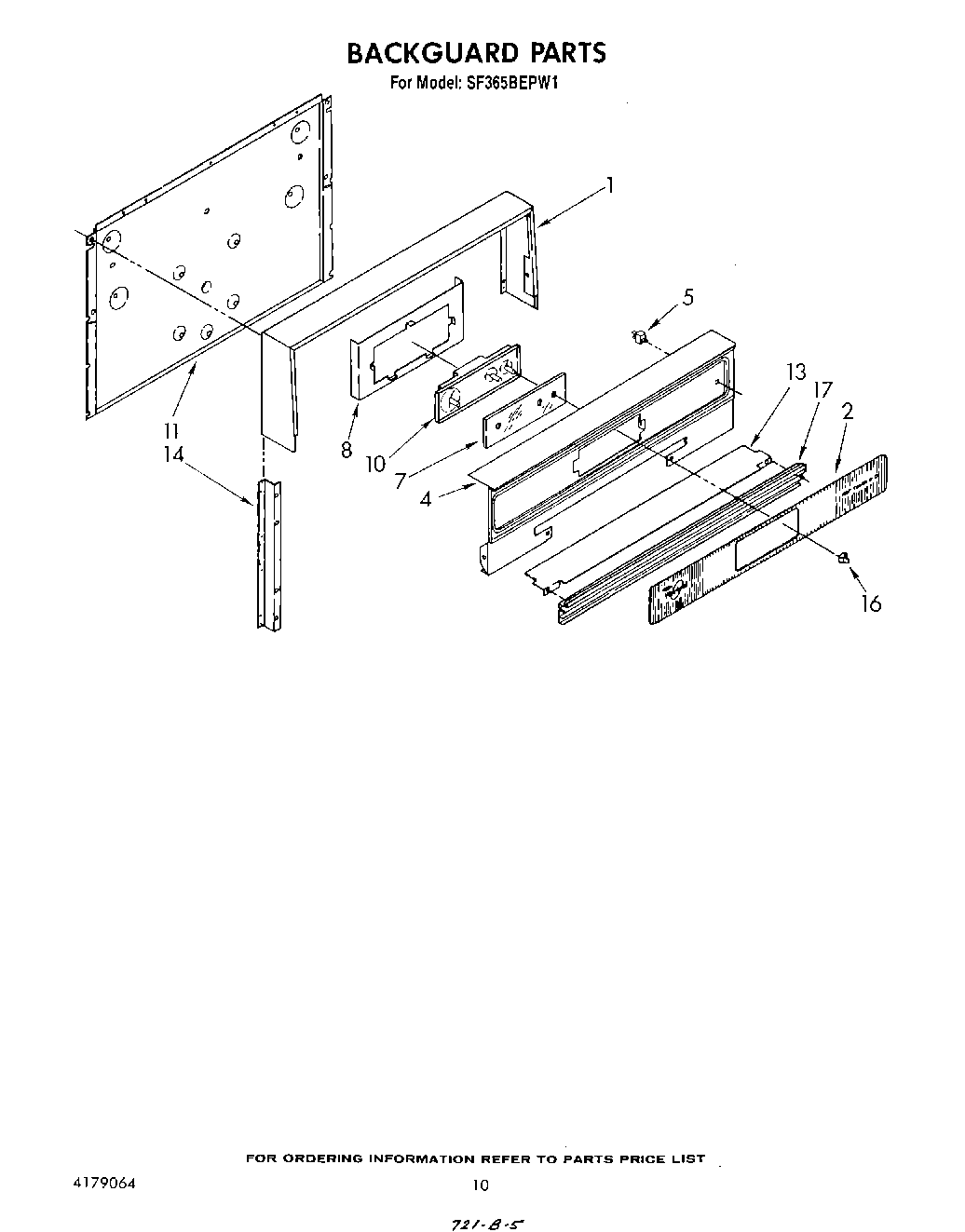

SF365BEPW1 07 – BACKGUARD , LIT/OPTIONAL
Written by
in
SF365BEPW1 07 – BACKGUARD , LIT/OPTIONAL
Products
Position
Product
Guide, Cooking
List, Repair Parts
Instructions, Installation
Guide, Use & Care
1
Frame
1
screw (4)
2
Panel, Inlay
4
Panel, Control Mounting (Almond)
4
Panel, Control Mounting (White)
4
Panel, Control (Toast)
4
Panel, Control (Platinum)
5
Light, Indicator Oven
7
Glass, Timer
8
Plate, Clock Mounting
10
Timer
11
Panel, Cover
13
Shield, Heat
14
Support, Control Panel (2)
16
Knob, Clock
17
Trim, Lower
←
