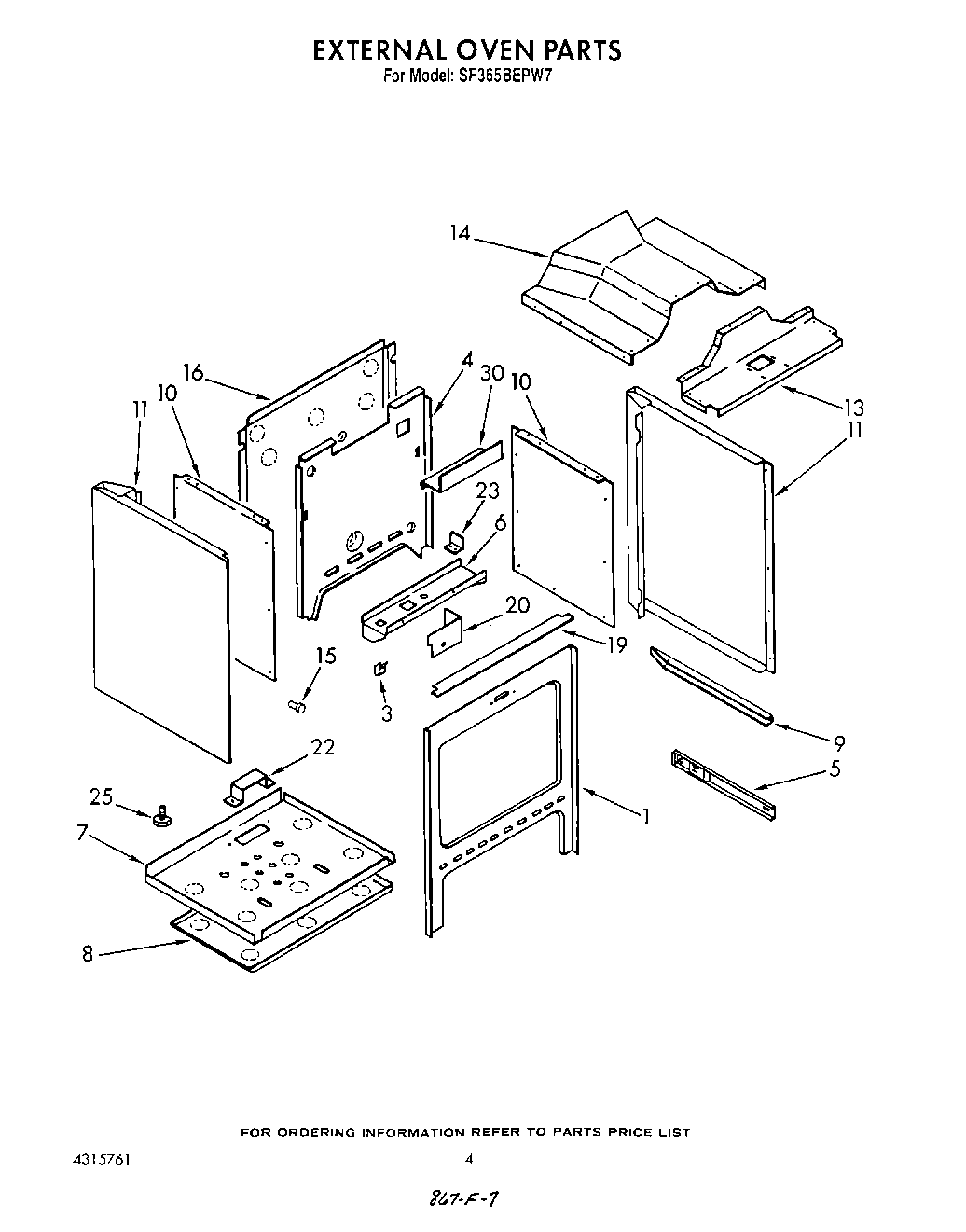

SF365BEPW7 03 – EXTERNAL OVENadmin2025-04-26T11:27:27+00:00SF365BEPW7 03 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | WP965173 Whirlpool Dishwasher Screw |
| 3 | bushing, snap |
| 4 | retainer, insulation |
| 5 | Rivet, Plastic (4) |
| 5 | track, storage drawer (left side) |
| 5 | track, storage drawer (right side) |
| 6 | shelf, gas valve |
| 7 | retainer, bottom insulation |
| 8 | Heat Shield, |
| 9 | Brace, Bottom (R.H.) |
| 9 | brace, bottom (l.h.) |
| 10 | Retainer, Insulation (2) |
| 11 | Almond |
| 11 | White |
| 13 | Retainer, Top Front Insulation |
| 14 | Retainer, Top Back Insulation |
| 15 | bushing, snap |
| 16 | nut, 6-32 |
| 16 | WP488130 Whirlpool Air Conditioner Nut |
| 16 | WP486754 Whirlpool Compactor Screw |
| 16 | Panel, Rear |
| 19 | Frame, Filler Front |
| 20 | Plate, Cover |
| 22 | Cover, Burner |
| 23 | Bracket, Gas Valve (2) |
| 25 | leg, leveling (4) |
| 30 | cover, electrical |
