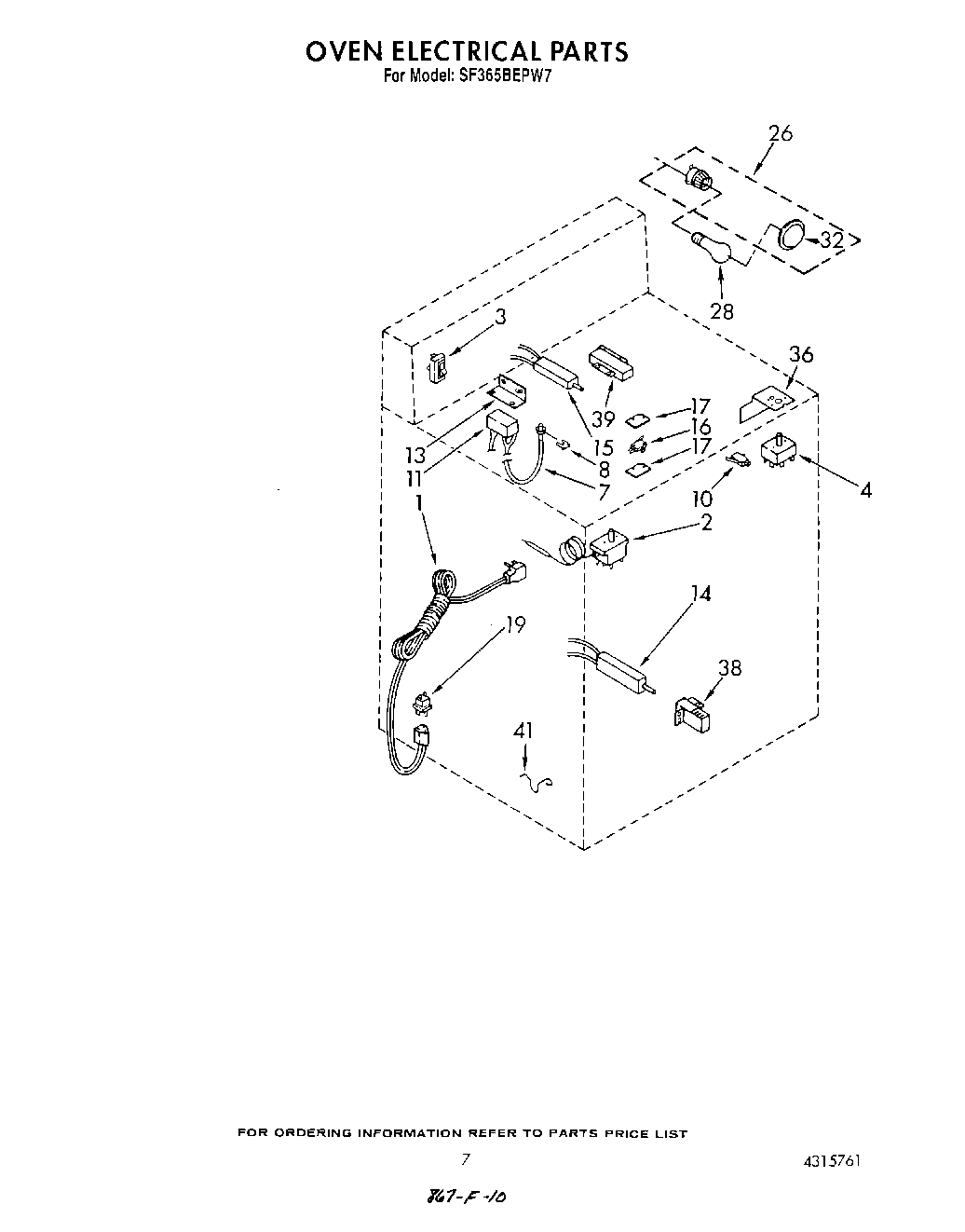

SF365BEPW7 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
3	Switch, Oven Door
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Nut
10	Screw, 4-40 X 5/8 (2)
10	switch, top burner actuator
11	Module, Spark
13	bracket, spark module
14	786324 Whirlpool Flat Igniter
15	Nut, 6-32 (6)
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	insulator, switch
19	Plug, Male
26	WP74011278 Whirlpool Light
28	RANGE ONLY 40W 120V APPL BULB
32	Oven Light Lens
36	Insulator, Control (2)
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
41	Clip, Wire
