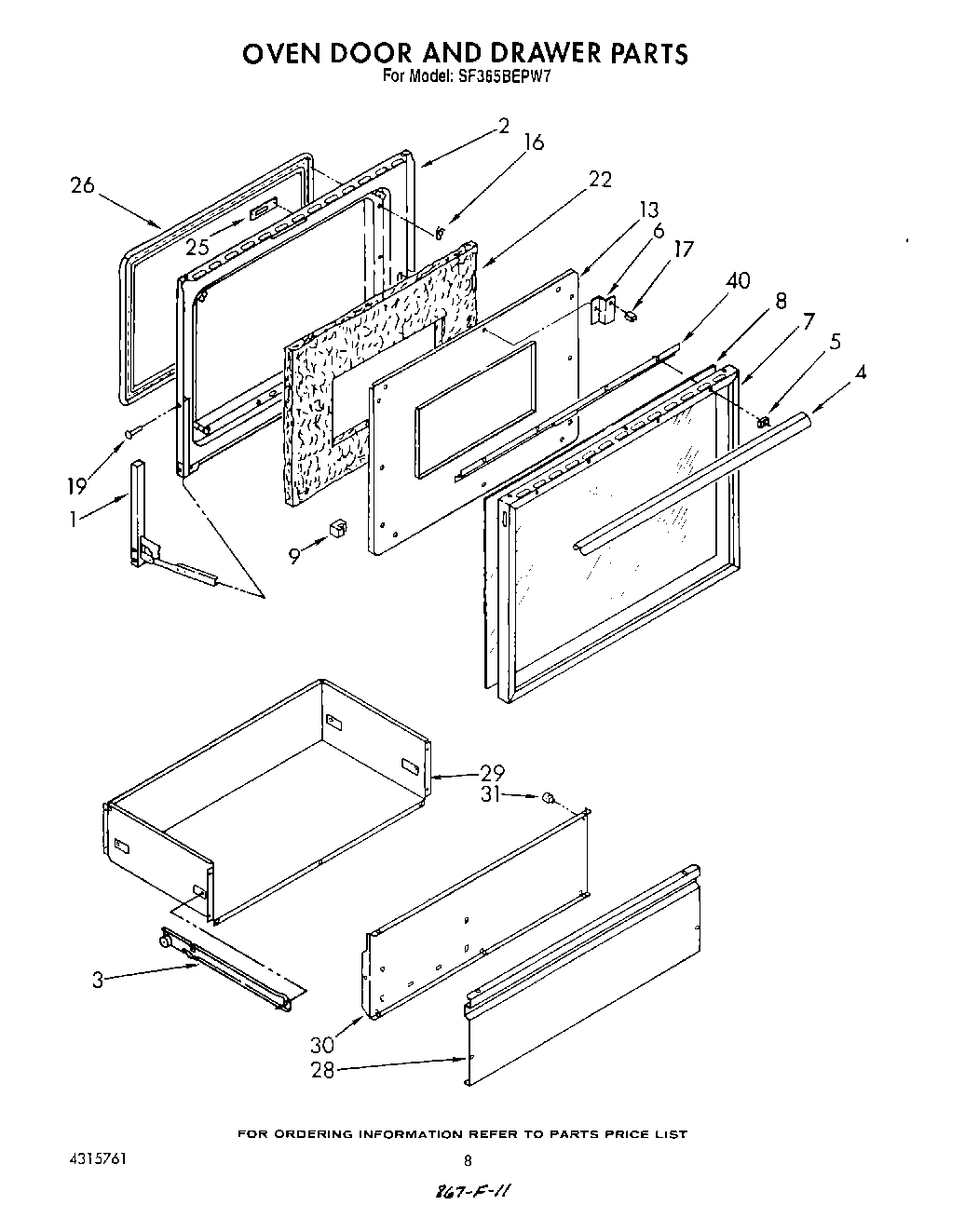

SF365BEPW7 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (Left Side)
1Hinge, Oven Door (R.H.)
2Screw, 8-32 X 5/8 (4)
2Pad, Oven Door
2WP965173 Whirlpool Dishwasher Screw
2WP308685 Whirlpool Microwave Screw
2WP488130 Whirlpool Air Conditioner Nut
3Runner (R.H.)
3runner (l.h.)
4Handle
5Spacer, Handle (2)
6Retainer, Window (4)
7Frame
8Panel, Black Glass
13Plate, Insulation
16Clip, Speed (14)
17Bumper, Window (2)
19Pin, Hinge (2)
22Insulation, Door
25Plate, Latch
26gasket assembly
28Panel, Drawer (White)
28Panel, Drawer (Almond)
29Wrapper, Storage Drawer
30Liner, Door Panel
31Bumper, Rubber
40Baffle, Air
