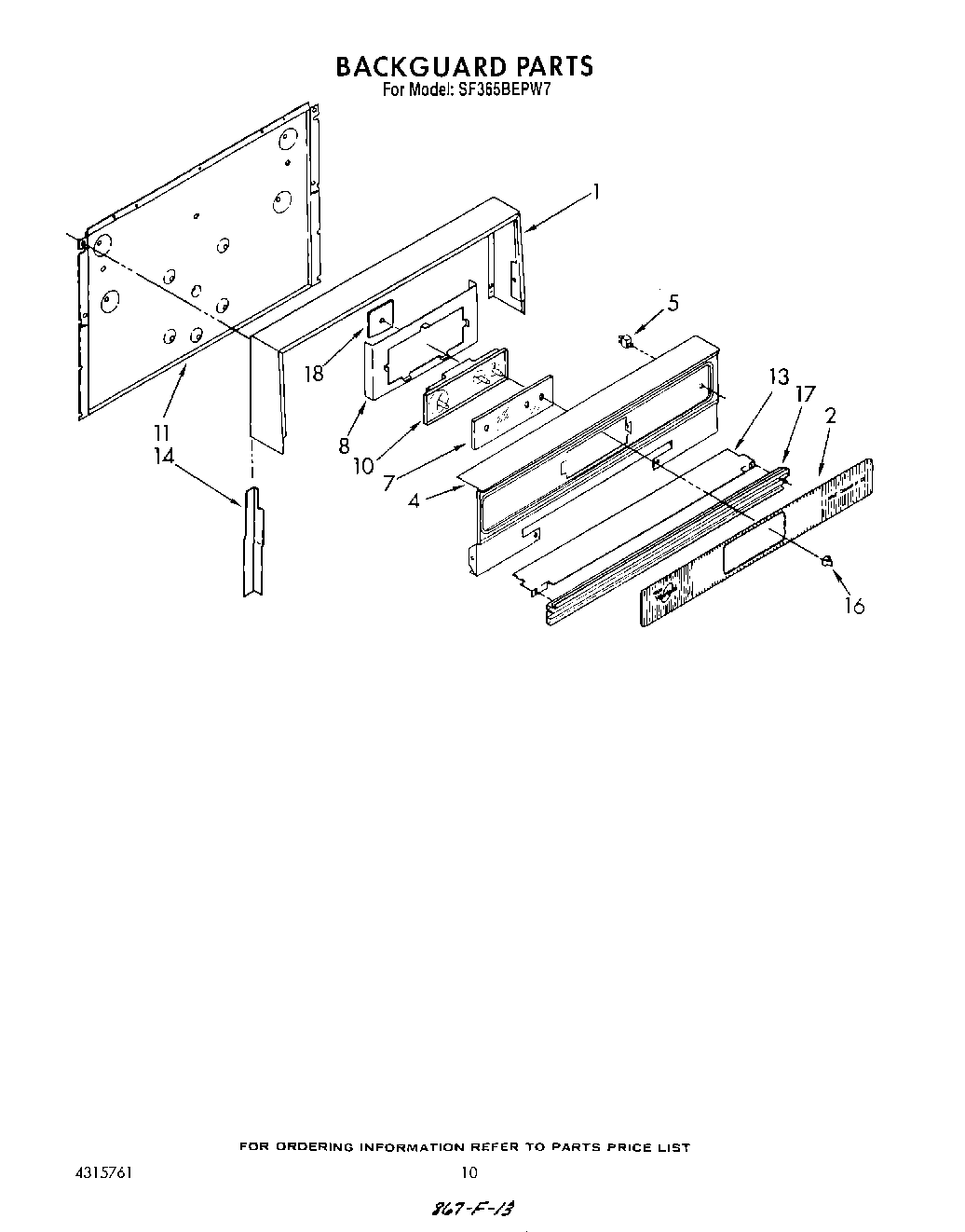

SF365BEPW7 07 – BACKGUARD , LIT/OPTIONALadmin2025-04-26T11:26:20+00:00SF365BEPW7 07 – BACKGUARD , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Frame |
| 1 | screw (4) |
| 2 | Panel, Inlay |
| 4 | Panel, Control Mounting (Almond) |
| 4 | Panel, Control Mounting (White) |
| 5 | Light, Indicator Oven |
| 7 | Glass, Timer |
| 8 | Plate, Clock Mounting |
| 10 | Screw (2) |
| 11 | Panel, Rear |
| 13 | Shield, Heat |
| 14 | Support, R.H. |
| 14 | Support L.H. |
| 16 | Knob, Clock |
| 17 | Trim, Lower |
| 18 | Insulation, Oven Light |
