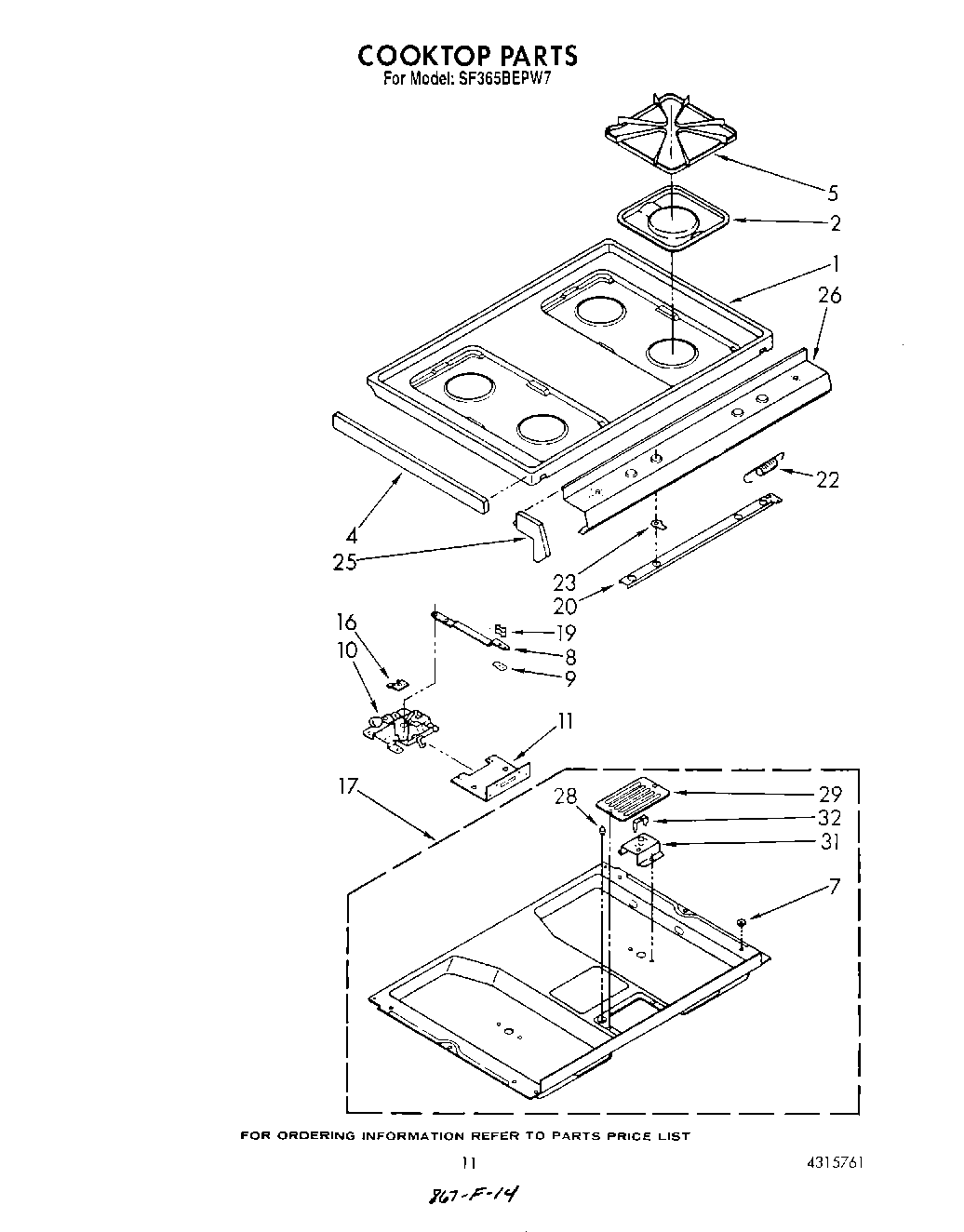

SF365BEPW7 08 – COOK TOP

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Top, Main (Almond)
1	Top, Main (White)
2	WP786333 Whirlpool Drip Bowl
4	Trim, Main Top (Left Side)
4	Trim, Main Top (Right Side)
5	Grate, Top Burner
7	Spacer, Nylon (4)
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	bracket, latch mounting
16	screw, 4-40 (2)
16	Bracket, Switch
17	Burner Box
19	Knob, Latch Handle
20	Actuator, Spark Ignitor
22	Spring
23	Cam (4)
25	End Cap (Right)
25	End Cap (Left)
26	Panel, Control
28	Orifice
29	Plate, Cover
31	Bracket, Top (2)
32	Bracket, Electrode (2)
