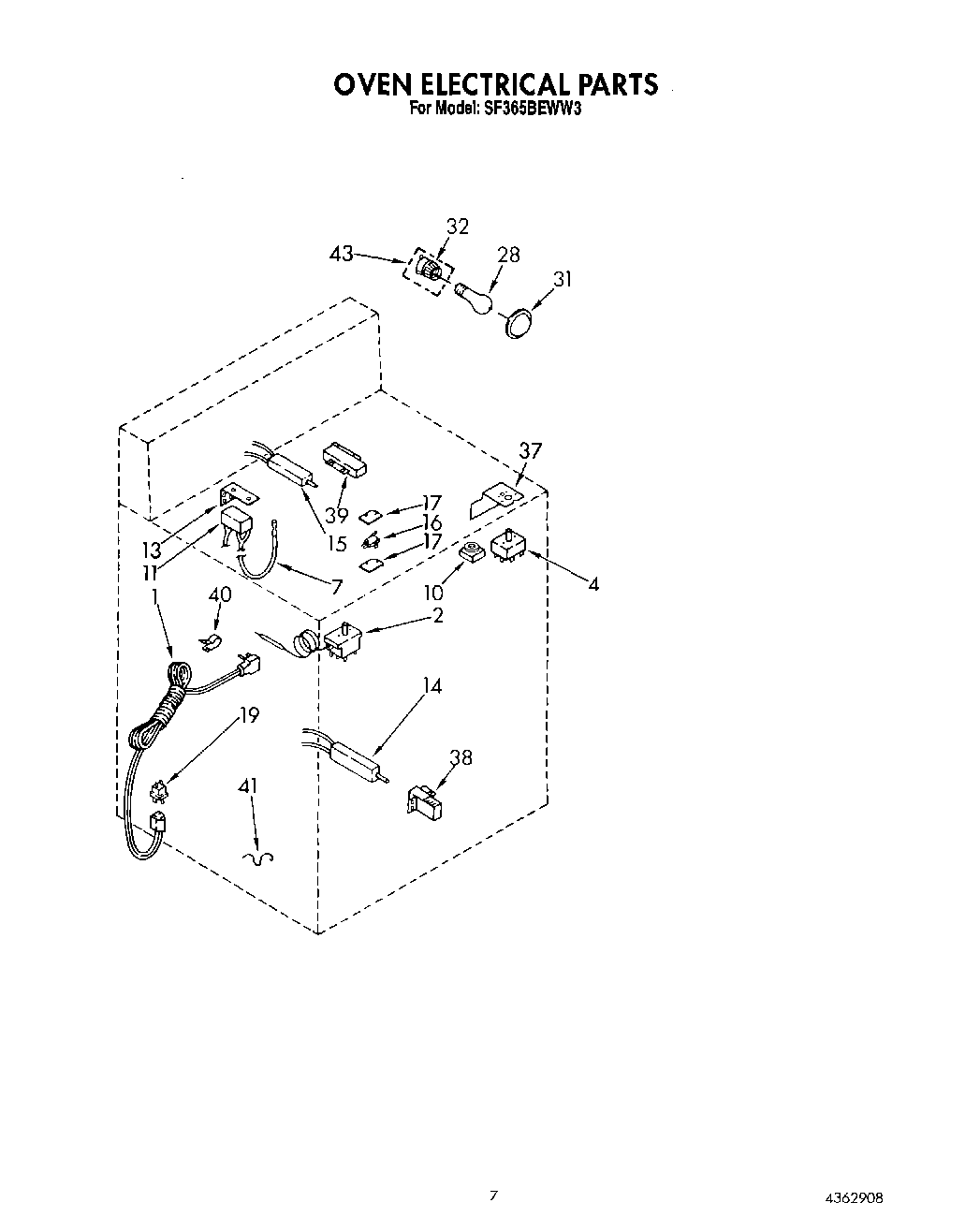

SF365BEWN3 05 – OVEN ELECTRICALadmin2025-04-26T12:56:12+00:00SF365BEWN3 05 – OVEN ELECTRICAL
Products
| Position | Product |
|---|
| 1 | Cord, Power |
| 2 | Thermostat, Oven |
| 2 | screw, 6-32 x 1/4 (2) |
| 4 | Switch, Selector |
| 7 | 4157608 Whirlpool Surface Igniter |
| 10 | switch, top burner actuator |
| 10 | Nut |
| 10 | Screw, 4-40 X 5/8 (2) |
| 11 | Spark Module |
| 13 | bracket, spark module |
| 14 | 786324 Whirlpool Flat Igniter |
| 15 | screw, 4-40 x 5/8 (2) |
| 15 | 814269 Whirlpool Oven Flat Igniter |
| 15 | Nut, 6-32 (6) |
| 16 | Switch, Oven Door Latch |
| 17 | Insulator, Switch |
| 19 | Plug, Male |
| 28 | RANGE ONLY 40W 120V APPL BULB |
| 37 | Insulator, Control (2) |
| 38 | Bracket, Bake Ignitor |
| 39 | Bracket, Broiler Ignitor |
| 40 | Clamp |
| 41 | Clip, Wire |
| 43 | WP74011278 Whirlpool Light |
