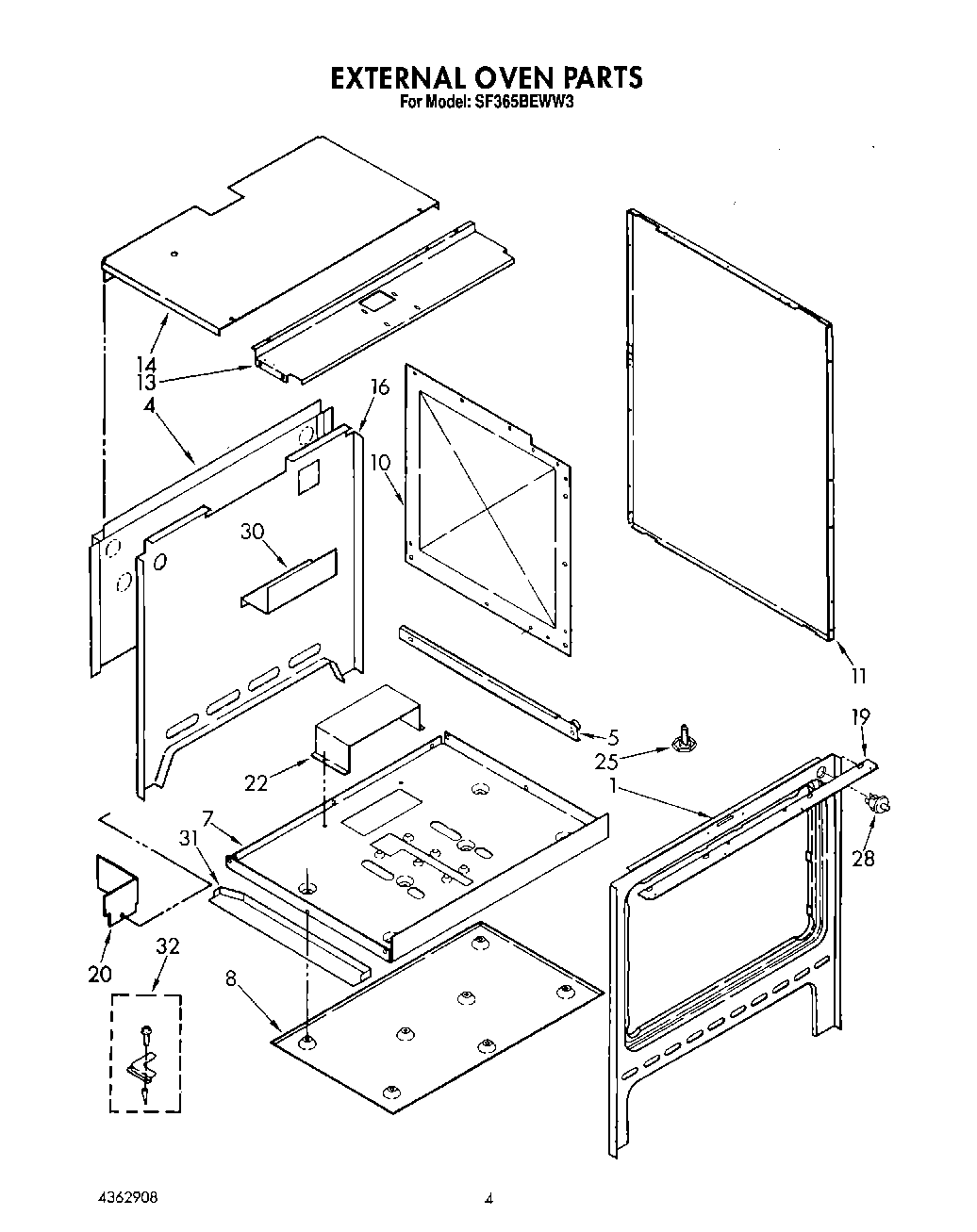

SF365BEWW3 03 – EXTERNAL OVEN

Products

PositionProduct
1Switch, Rocker
1Frame, Front Not Serviceable
4Retainer, Rear Insulation
5track, storage drawer (right side)
5track, storage drawer (left side)
7retainer, bottom insulation
8Heat Shield,
10Retainer, Insulation (2)
11Panel, End (2) (White)
11Panel, End (2) (Almond)
13Retainer, Top Front Insulation
14Retainer, Top Back
16Bushing, Snap
16WP486754 Whirlpool Compactor Screw
16WP965173 Whirlpool Dishwasher Screw
16WP488130 Whirlpool Air Conditioner Nut
16Panel, Rear
16nut, 6-32
19Frame, Filler Front
20Plate, Cover
22Retainer, Ignitor
25leg, leveling (4)
27Nut (4)
28Switch, Oven Door
30cover, electrical
31Brace, Bottom (L.H.)
31Brace, Bottom (R.H.)
32Anti Tip Kit
