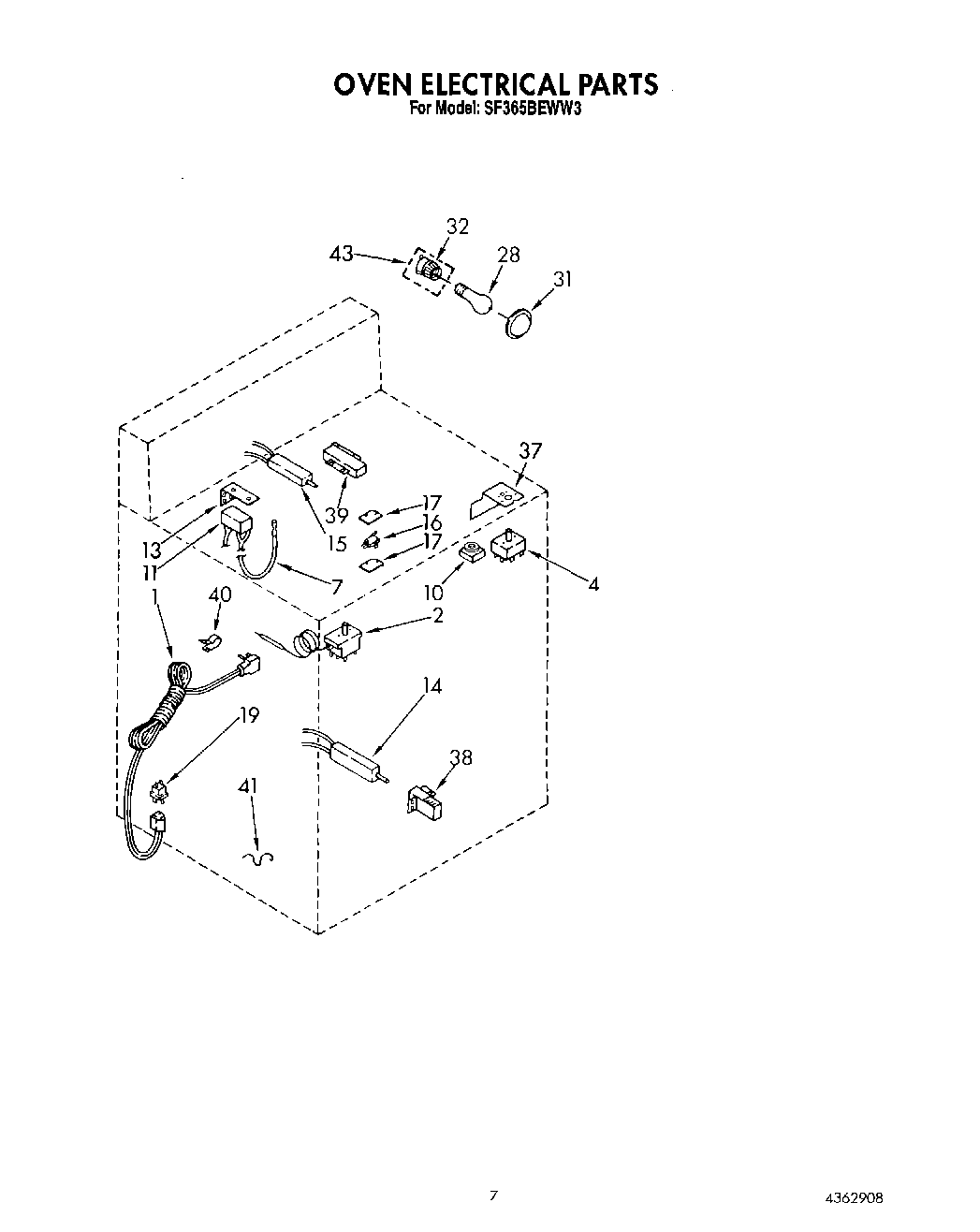

SF365BEWW3 05 – OVEN ELECTRICAL

SF365BEWW3 05 – OVEN ELECTRICAL

Written by

in

SF365BEWW3 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
2	screw, 6-32 x 1/4 (2)
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
10	switch, top burner actuator
10	Nut
10	Screw, 4-40 X 5/8 (2)
11	Spark Module
13	bracket, spark module
14	786324 Whirlpool Flat Igniter
15	screw, 4-40 x 5/8 (2)
15	814269 Whirlpool Oven Flat Igniter
15	Nut, 6-32 (6)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
28	RANGE ONLY 40W 120V APPL BULB
37	Insulator, Control (2)
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
40	Clamp
41	Clip, Wire
43	WP74011278 Whirlpool Light
