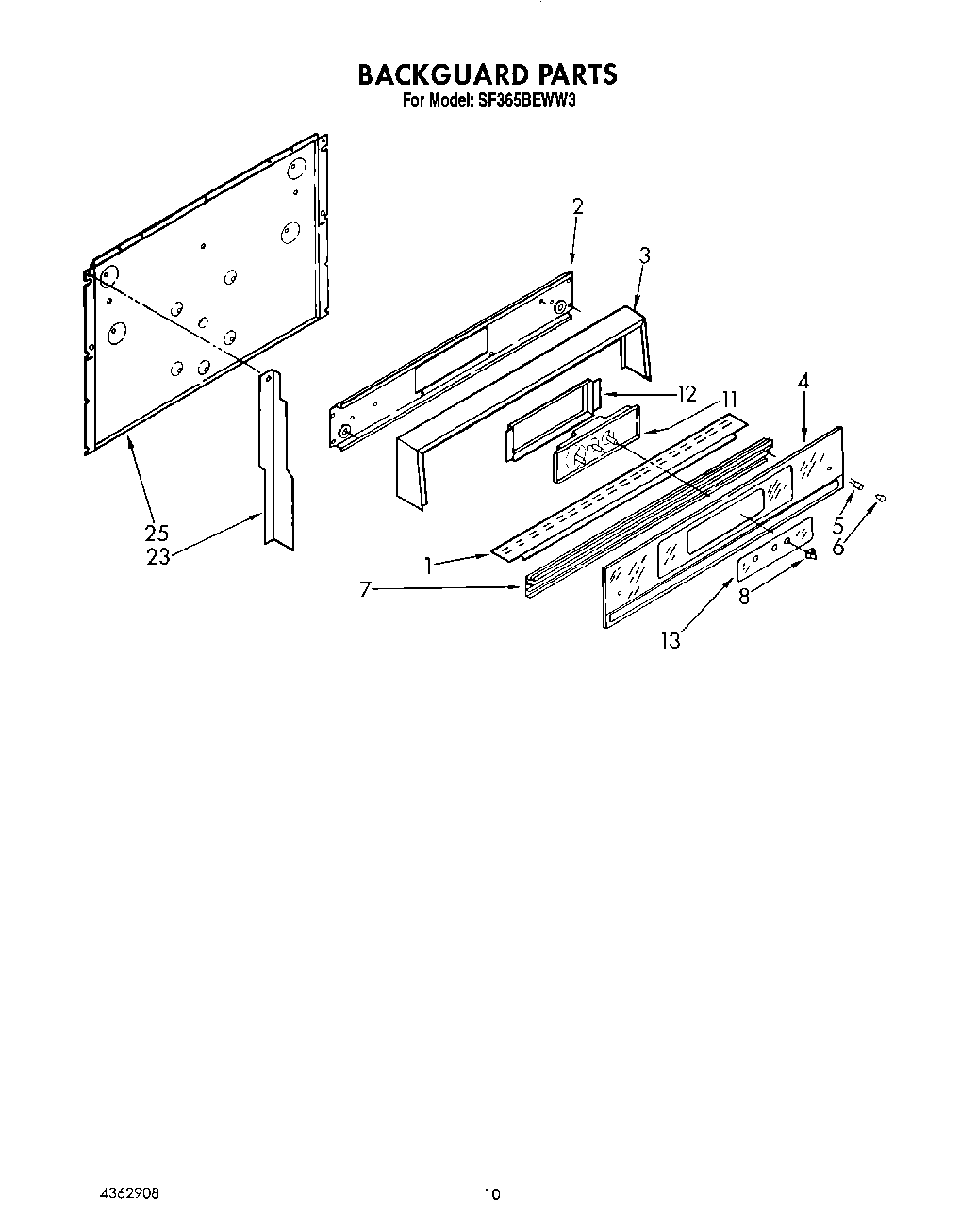

SF365BEWW3 07 – BACKGUARD, LITERATURE

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Instructions, Installation
1Shield, Heat
2Panel, Control Mounting (Almond)
2Panel, Control Mounting (White)
3Frame
4Decorative Inlay
5Light, Indicator Oven
6Lens, Indicator Light
7Trim, Lower
8Knob, Clock
11Clock
12Plate, Clock Mounting
13Glass, Timer
23Support, Control Panel (2)
23Support, R.H.
23Support L.H.
25Retainer, Rear Insulation
