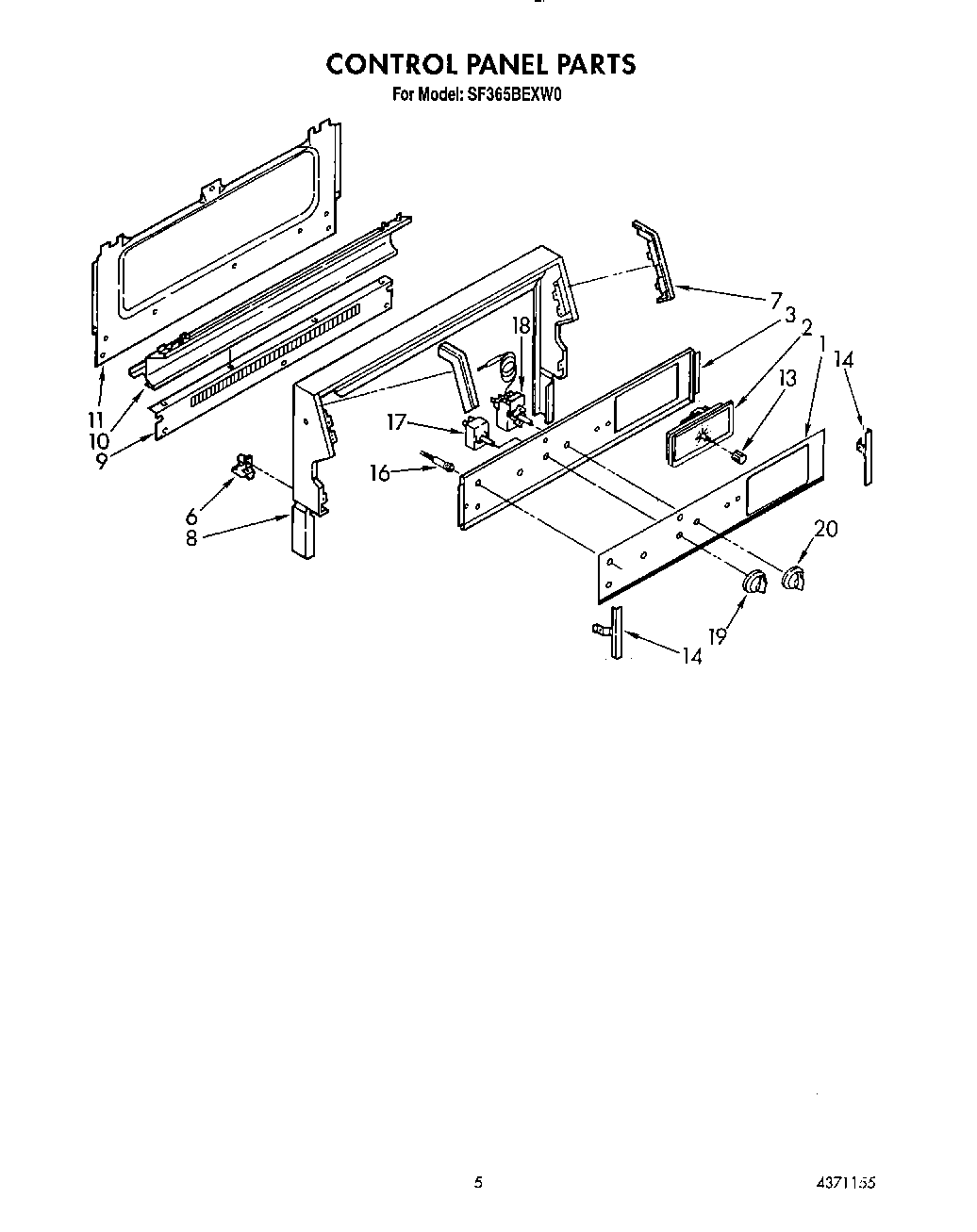

SF365BEXW0 05 – CONTROL PANEL

Products

Position	Product
1	Glass, Backguard
2	Clock, Auto
3	Plate, Instrument Mounting
6	Brace, Backguard
7	End Cap (Right)
7	End Cap (Left)
8	Trim, Wrapper
9	Trim, Vent
10	switch, top burner actuator
10	Almond
10	White
11	Shield, Rear Wall
13	Knob, Clock (3)
14	Retainer, Glass
16	Light, Indicator (Clean/Lock/Surface 125V (3))
16	Lock, Indicator
17	Switch, Selector
18	Thermostat
19	Knob, Selector
20	Knob, Thermostat
