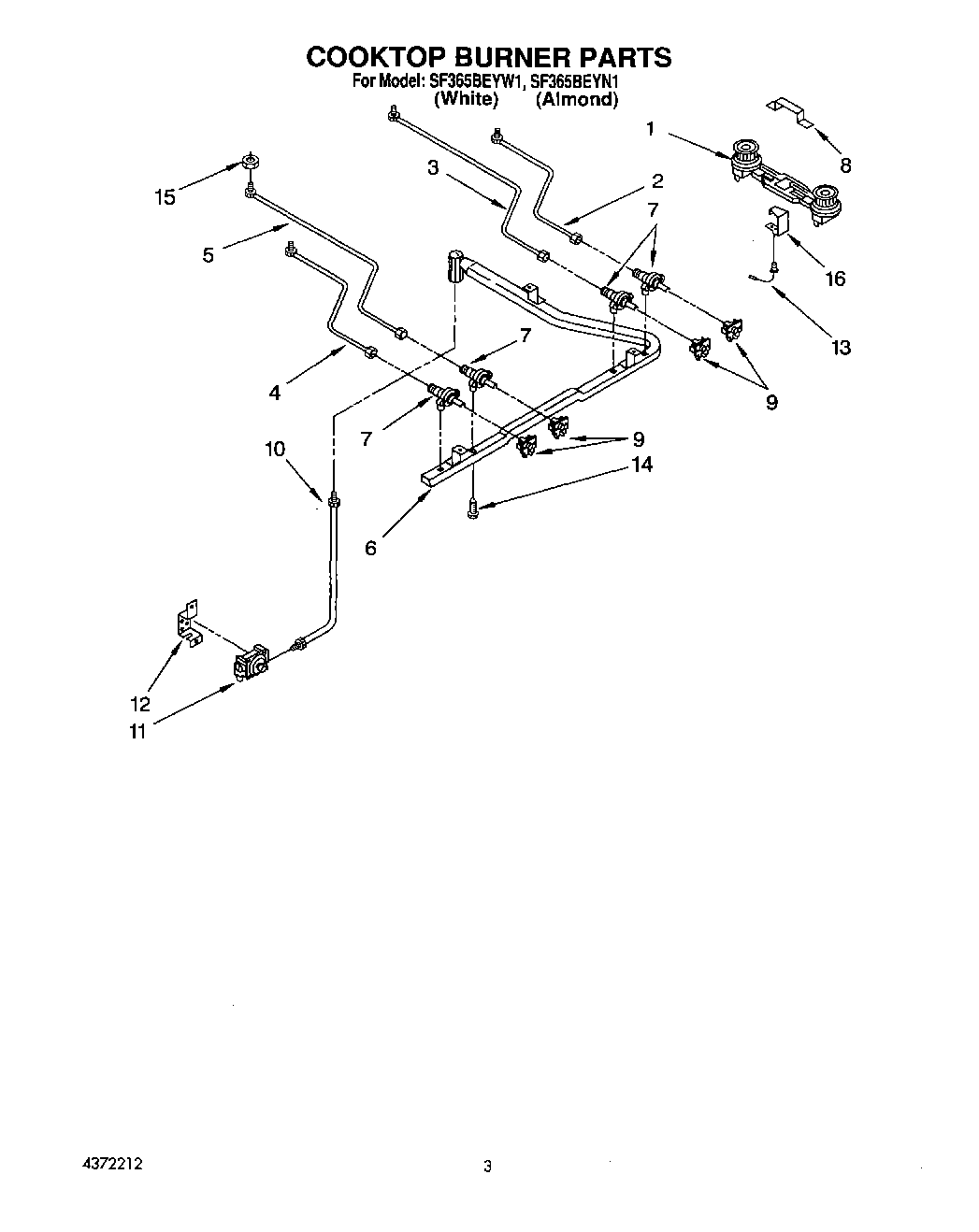

SF365BEYN1 03 – COOKTOP BURNER

SF365BEYN1 03 – COOKTOP BURNER

Written by

in

SF365BEYN1 03 – COOKTOP BURNER

Products

PositionProduct
1Burner, Double
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top (4)
8Bracket, Burner Mounting
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Ignitor, Top Burner
14WP3186217 Whirlpool Screw
15Nut, Special (4)
16Retainer, Ignitor
