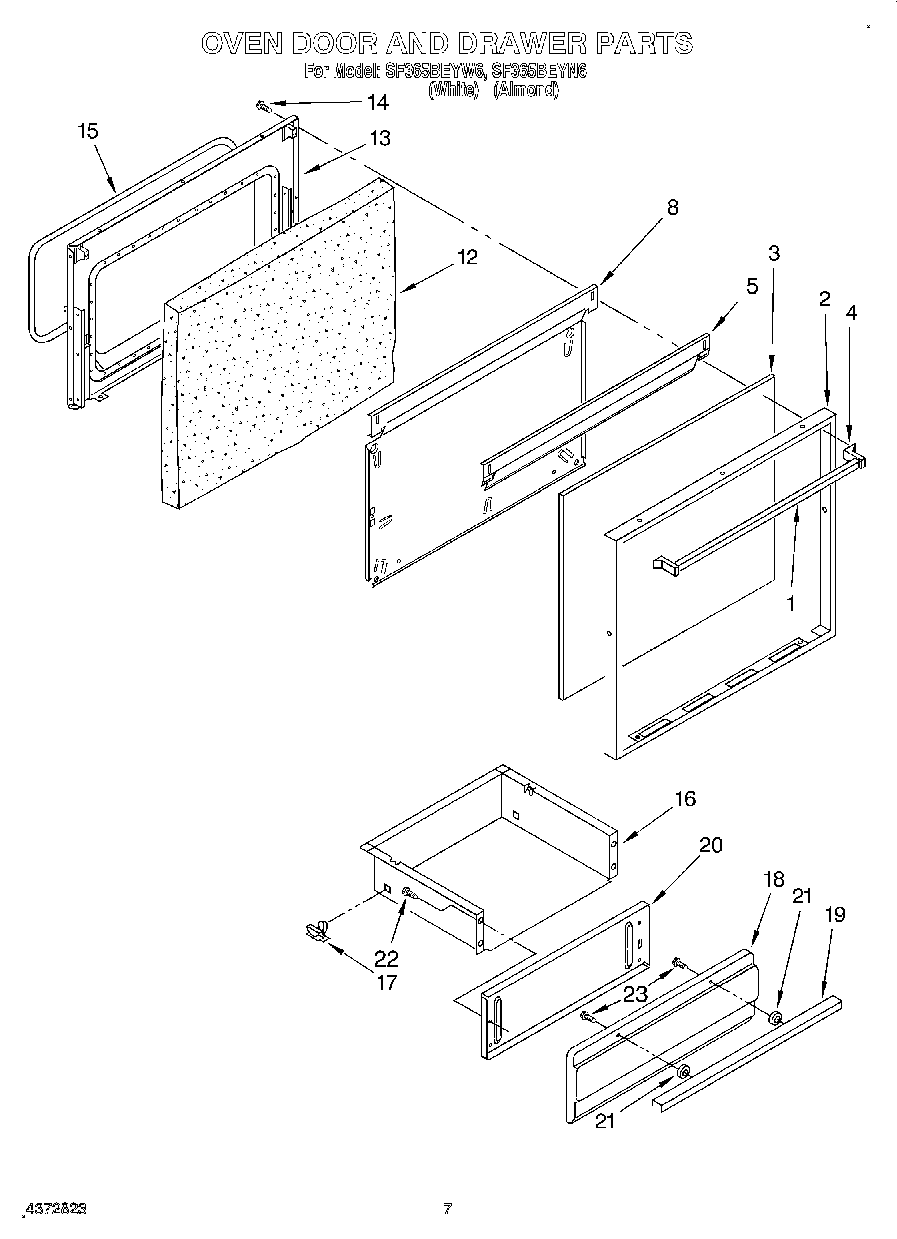

SF365BEYN6 06 – OVEN DOOR AND DRAWER

SF365BEYN6 06 – OVEN DOOR AND DRAWER

Written by

in

SF365BEYN6 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door Blk
4	Endcap (2)
5	Sheild, Door Top
8	Shield, Heat
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
16	Drawer, Utility
17	Guide, Drawer
18	Panel, Drawer
19	Handle, Utility Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
