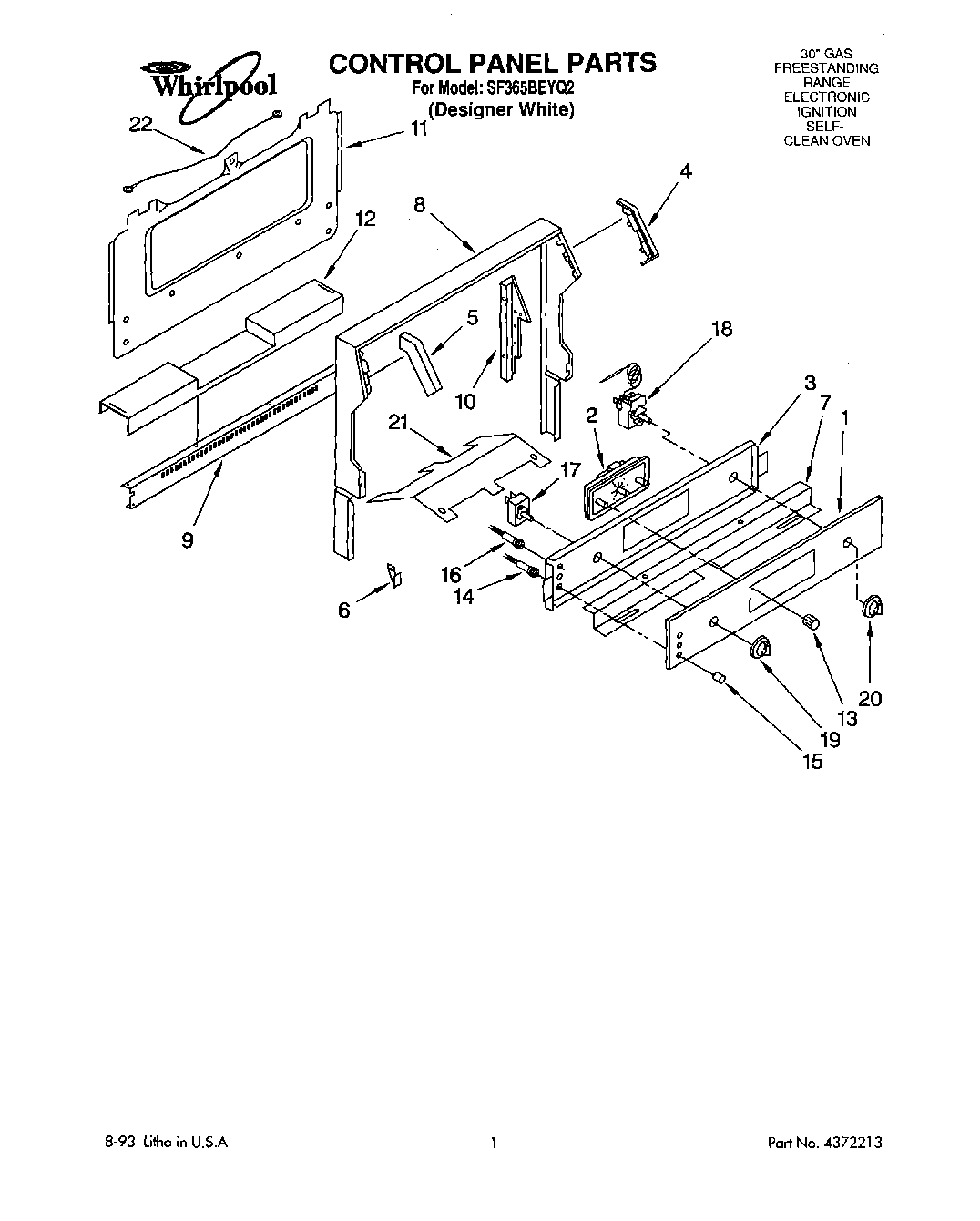

SF365BEYQ2 01 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Clock, Timer
3	Bracket, Timer
4	Cap, End (R.H.)
5	Cap, End (L.H.)
6	Cap, Filler
7	Retainer, Timer
8	Trim, Wrapper
9	Trim, Vent
10	Support, Control Panel (R.H.)
10	Support, Control Panel (L.H.)
11	Shield, Rear Wall
12	Deflector, Flue
13	Knob, Clock
14	Light, Indicator (2)
15	Lens, Ind Light (3)
16	Light, Indicator
17	Switch, Selector
18	Thermostat
19	Knob, Selector
20	Knob, Thermostat
21	Shield, Inner Bkgd
22	Cable, Anti-Tip
