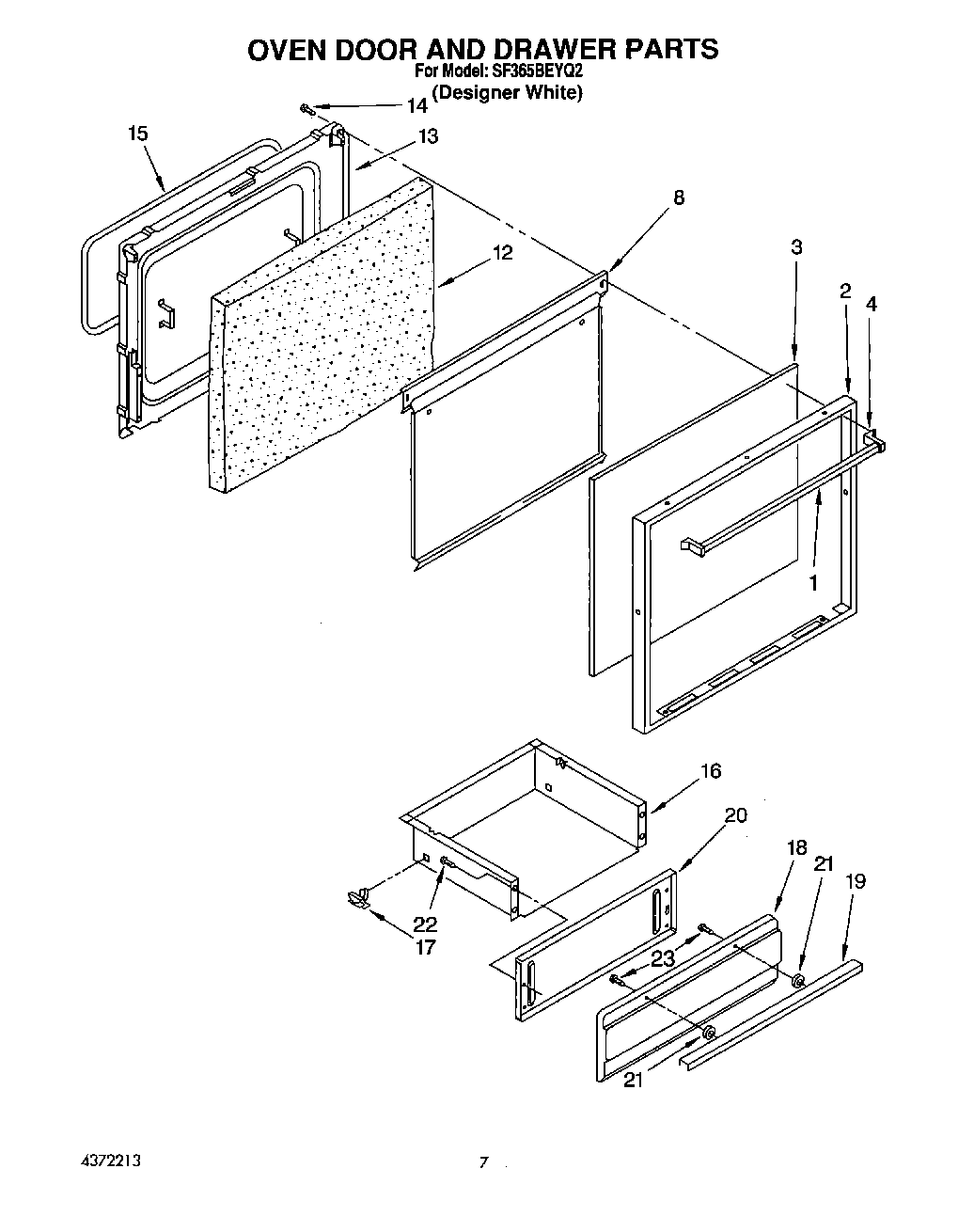

SF365BEYQ2 07 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Oven Door
3	Glass, Door
4	Endcap (2)
8	Shield, Heat
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
16	Drawer, Utility
17	Guide, Drawer
18	Panel, Drawer (White)
19	Handle, Broiler Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
