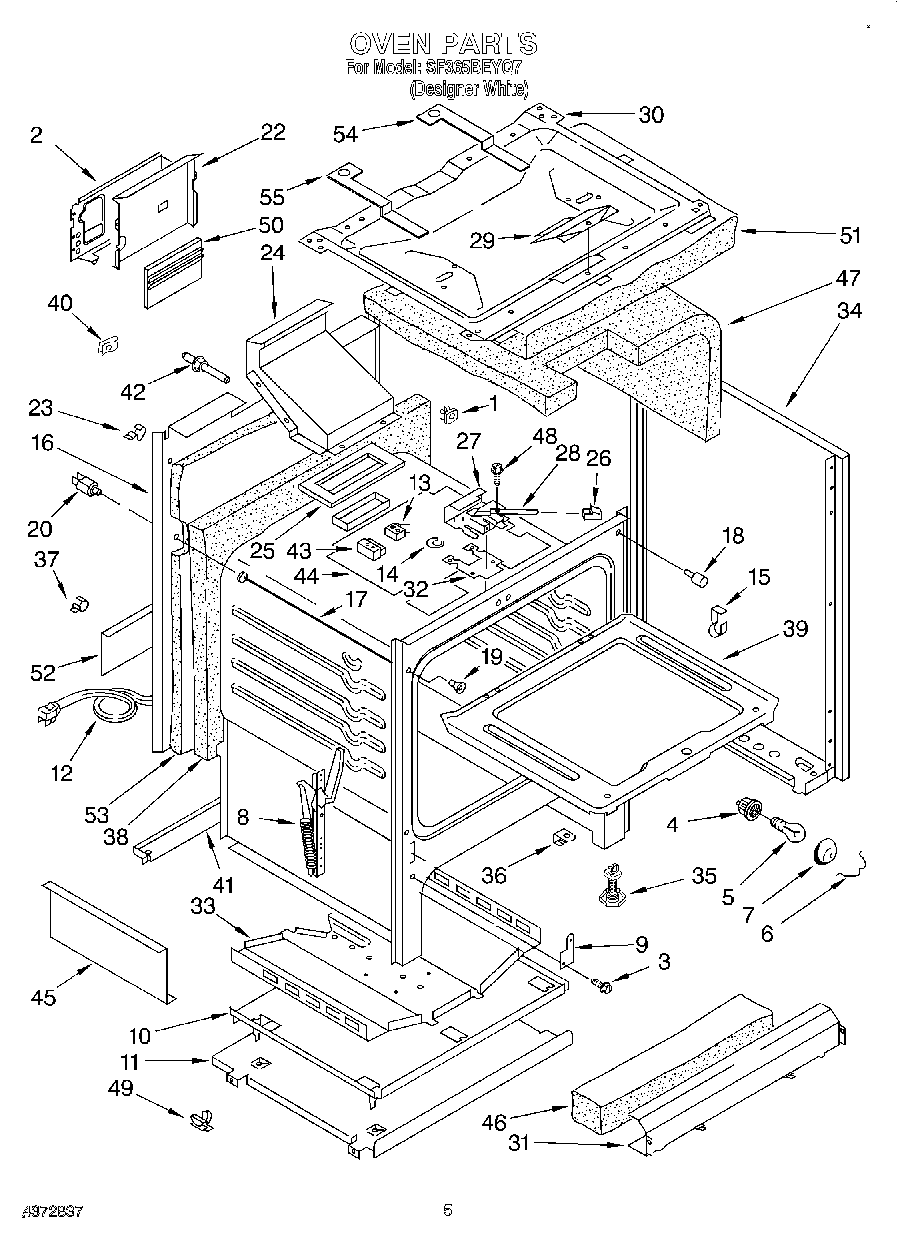

SF365BEYQ7 05 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Shield, Rear Wall
3	Screw, Oven Bottom
4	W10856866 Whirlpool Light Socket
5	RANGE ONLY 40W 120V APPL BULB
6	Retainer, Lens
7	Lens, Oven Light
8	Hinge, Oven Door
9	Cover, Hinge
10	Shield, Heat (Upper)
11	Shield, Heat (Lower)
12	Cord, Power
13	Switch, Latch
14	WPW10339879 Whirlpool Wire Tie
15	Clip, Thermo Bulb
16	Back, Main
17	Rod, Light
18	Bumper, Front (4)
19	Cover, Rod End
20	Switch, Door
22	Shield, Rear Heat
23	Clip, Wire
24	Flue Box
25	Gasket, Flue
26	Knob, Latch
27	Latch, Door
28	Handle, Latch
29	Plate, Cover
30	Burner Box
31	Shield, Main Front
32	Shield, Latch
33	Shield, Heat Baffle
34	Panel, Side (White RH)
34	Panel, Side (White LH)
35	Screw, Leveler (4)
36	Support, Oven Bottom
37	Fastener, Cord
38	Insulation, Oven Back
39	Bottom, Oven
40	Fastener, U Type
41	Bracket, Anti-Tip
42	Spacer, (2)
43	Shield, Latch
44	Shield, Oven Top
45	Shield, Side (2)
46	Insulation, Front
47	Insulation, Oven Wrapper
48	Screw, Latch Knob
49	Glide, Drawer
50	Shield, Flue
51	Insulation, Ov Top
52	Shield, Wire
53	Shield, Wool
54	Bracket, Top RH
55	Bracket, Top LH
