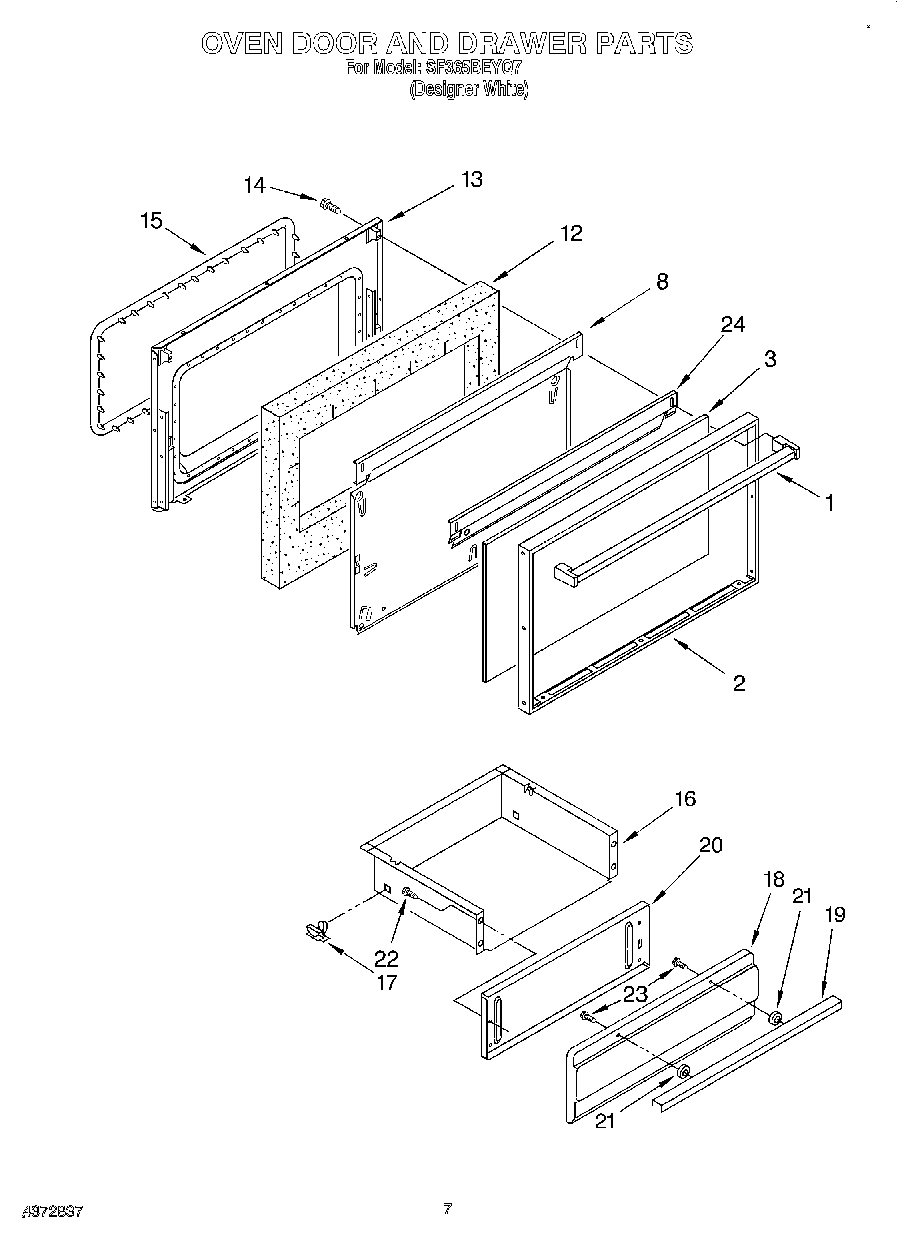

SF365BEYQ7 06 – OVEN DOOR AND DRAWER

SF365BEYQ7 06 – OVEN DOOR AND DRAWER

Written by

in

SF365BEYQ7 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Oven Door
3Glass, Door
8Shield, Heat
12Insulation, Door
13Liner, Oven Door
14WP912618 Whirlpool Dishwasher Screw
15Seal, Oven Door
16Drawer, Utility
17Guide, Drawer
18Panel, Drawer (White)
19Handle, Broiler Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Liner, Oven Door
