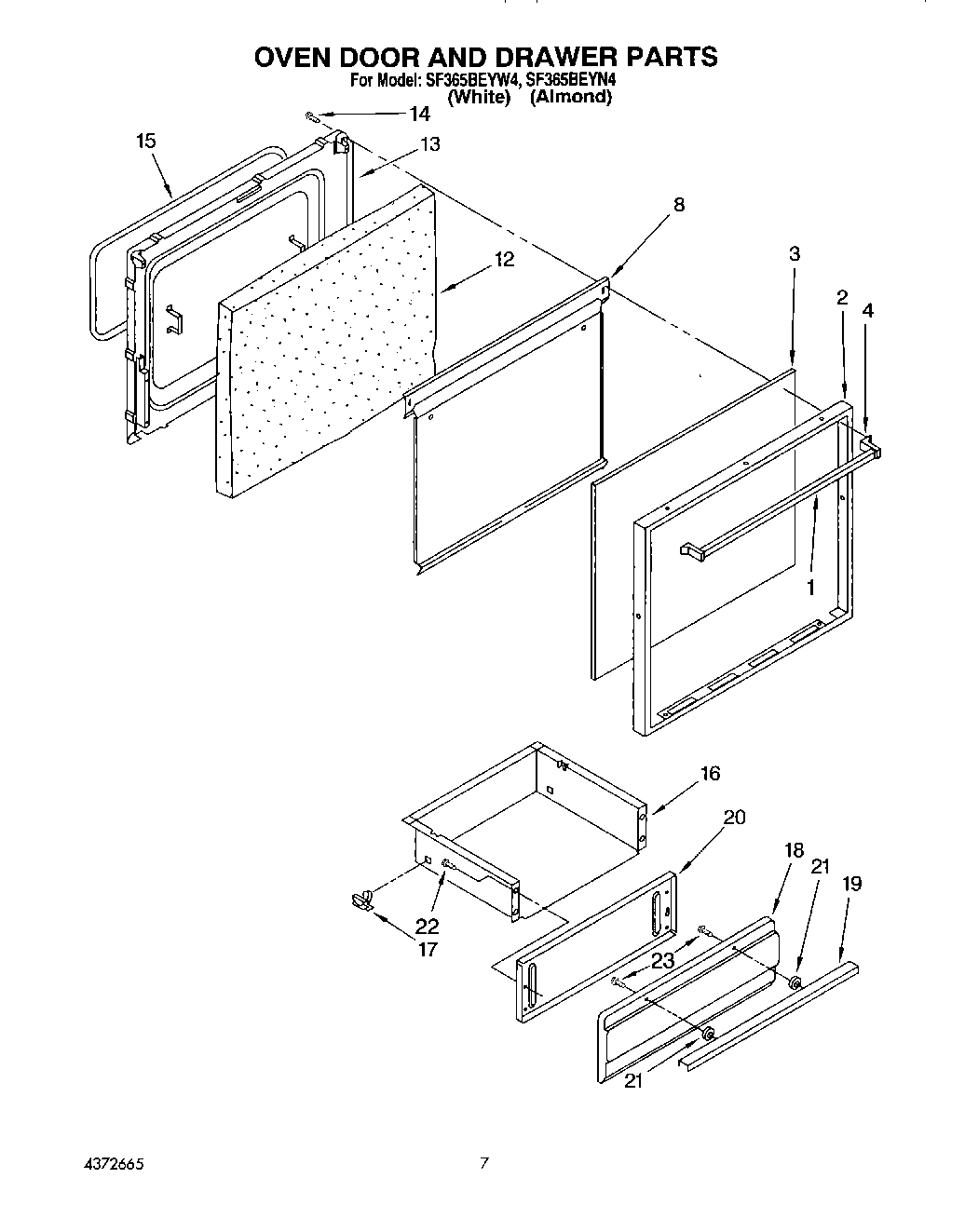

SF365BEYW4 06 – OVEN DOOR AND DRAWER

SF365BEYW4 06 – OVEN DOOR AND DRAWER

Written by

in

SF365BEYW4 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Door
3Glass, Door
4Endcap (2)
8Shield, Heat
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
16Drawer, Utility
17Guide, Drawer
18Panel, Drawer
19Handle, Utility Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
