SF365BEYW5 02 – COOKTOP

Products

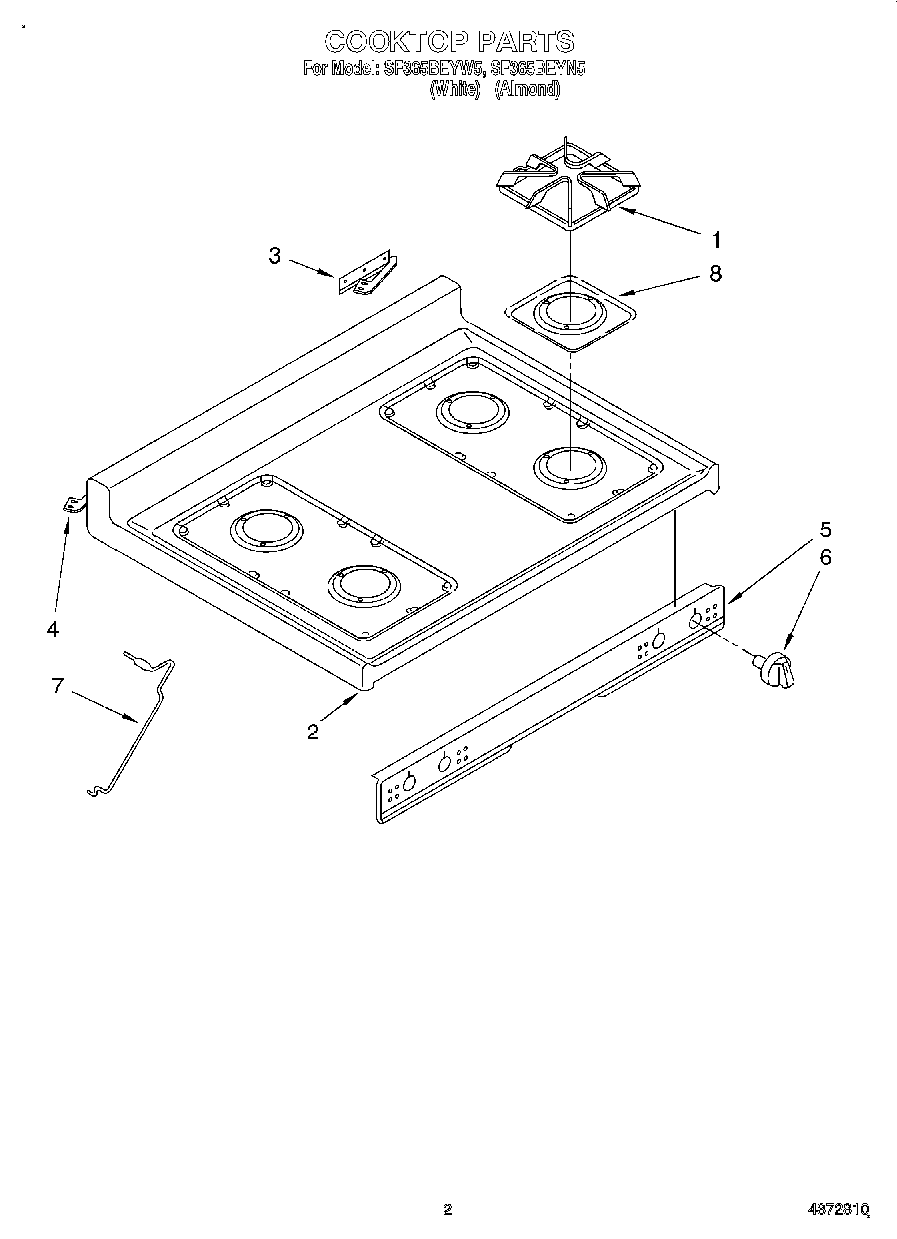

PositionProduct
1Grate (4)
2Top, Main
2Top, Main (Almond)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
