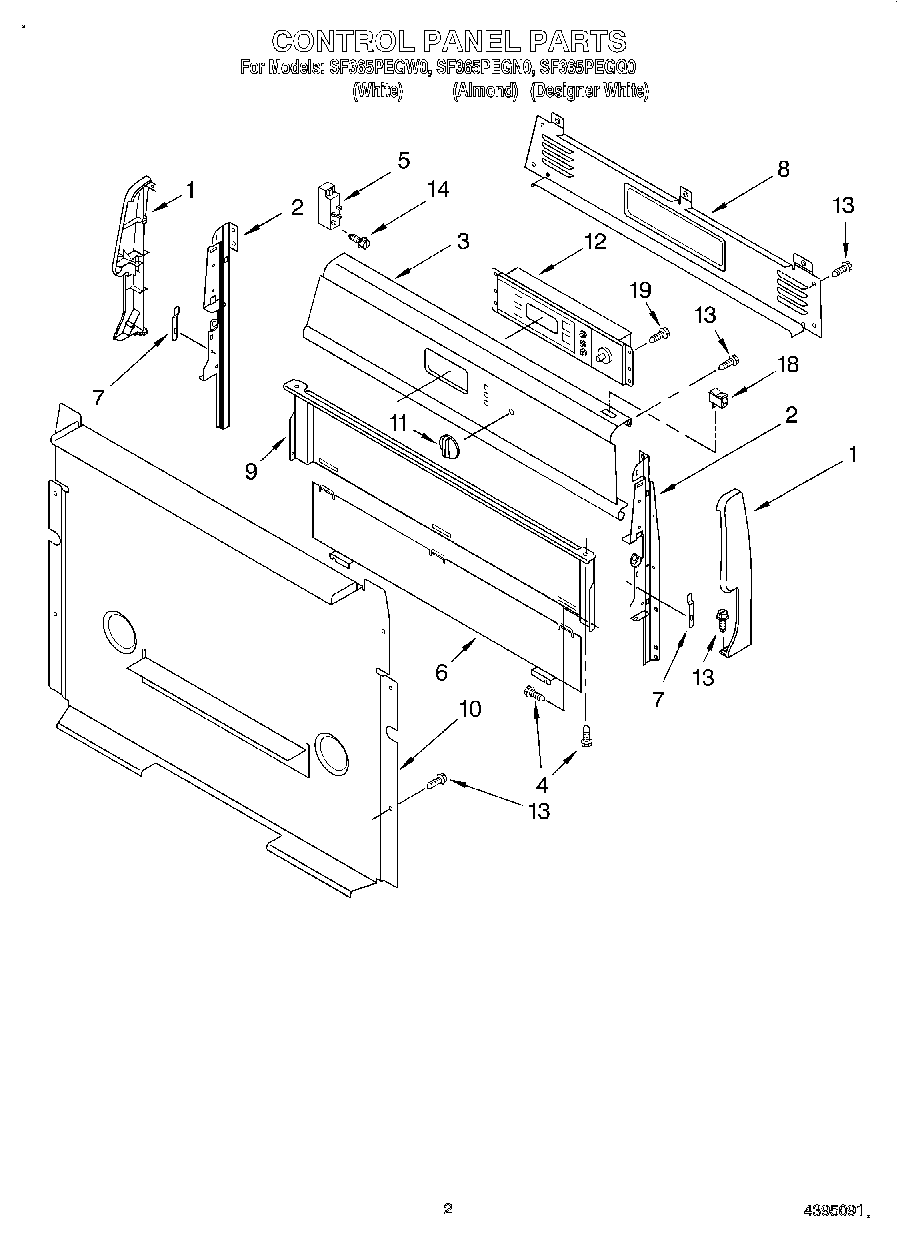

SF365PEGN0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
4	Screw
5	WP8053421 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	Knob, 150 Control (White)
11	Knob, 150 Control (Black)
12	Control, Oven (Black)
12	Control, Range (White)
13	SCREW
14	WPY706189 Whirlpool Stove Screw
18	WP4314961 Whirlpool Lite Switch
18	3149360 Whirlpool Light Switch
19	WP3196175 Whirlpool Screw
