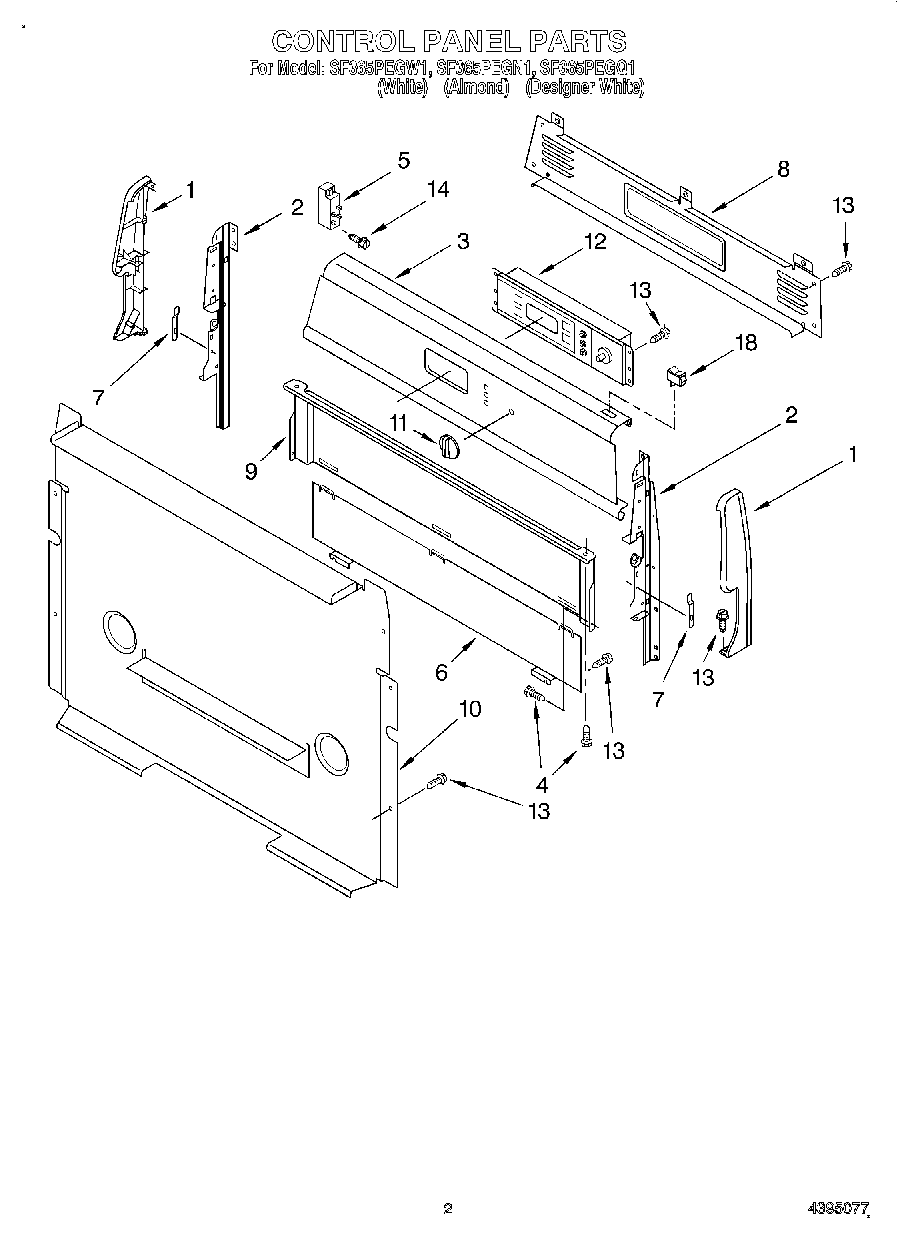

SF365PEGN1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Screw
5WP8053421 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob, 150 Control (Black)
11Knob, 150 Control (White)
12Control, Range (White)
12Control, Oven (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
183149360 Whirlpool Light Switch
18WP4314961 Whirlpool Lite Switch
